How to remove door panel? I tried but cannot find all screws and cannot get plate for power windows off.
Jan 8, 2011 at 2:05 AM
Advertisement
HMAC300
CERTIFIED EXPERT
48,601 POSTS
There should be screws in armrest, remove that and maybe remove inside door handle. Put a screwdriver around the edges and pry it and the door panel should come off. There are plastic clips all around the panel that hold it in.

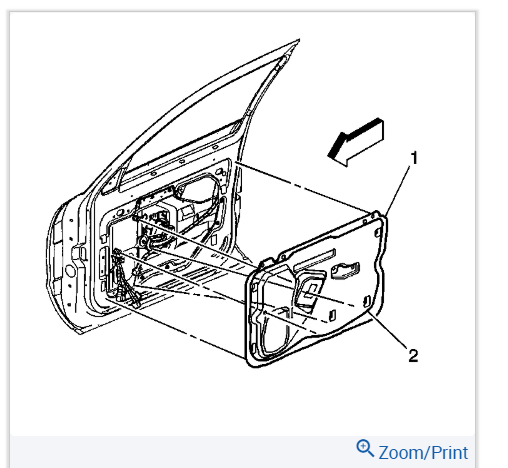

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Cheers
Image (Click to enlarge)
Jan 9, 2011 at 1:58 AM
TSCAVE
MEMBER
2 POSTS
I have a problem with the plate of the power windows. I cannot get it off. also inside the door sent for defogging window there is no screw that I can find.
Aug 1, 2018 at 8:15 PM
(Merged)
Advertisement
JACOBANDNICKOLAS
CERTIFIED EXPERT
110,175 POSTS
I believe both are clipped into place. Check that, carefully, to see if it is what holds them. Gently pry on them (do not over force) and they one side should pop up and the other will be on a hing.
Aug 1, 2018 at 8:15 PM
(Merged)
CHARLIEGHILL
MEMBER
1 POST
I need to know how to remove the front driver side door panel. I need to change the window control motor.
Aug 1, 2018 at 8:15 PM
(Merged)
JACOBANDNICKOLAS
CERTIFIED EXPERT
110,175 POSTS
Remove the arm rest. Behind plugs, you will find the bolts holding thing together. Once the bolts are out, you will then need to unclip the panel from the door itself. Be careful doing this because the clips can break.
Aug 1, 2018 at 8:15 PM
(Merged)
OAKHAVEN054
MEMBER
1 POST
How do you get into the front door panels to remove them? I do not see any screws and do not want to chance breaking clips by forcing anything.
Aug 1, 2018 at 8:15 PM
(Merged)
JACOBANDNICKOLAS
CERTIFIED EXPERT
110,175 POSTS
There are screws and clips. Chances are the screws are hidden behind a plastic cover. The clips are between the panel and the door. There is a tool made to remove them so they do not break.
