Torque specification, cylinder head, connecting road, main journal bearing

2002 TOYOTA COROLLA
110,000 MILES
Avatar
TADESSE
  • MEMBER
  • 4 POSTS
For the engine type 2NZ-FE. please i need torque specification for cylinder head, connecting road bearing and main journal bearing. Thank you.
Jul 6, 2012 at 7:07 PM
Advertisement
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS

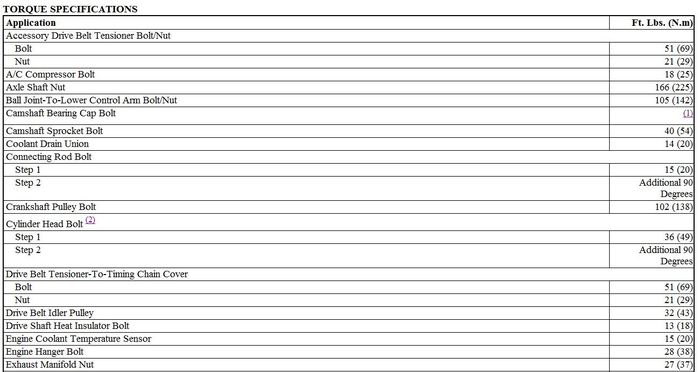

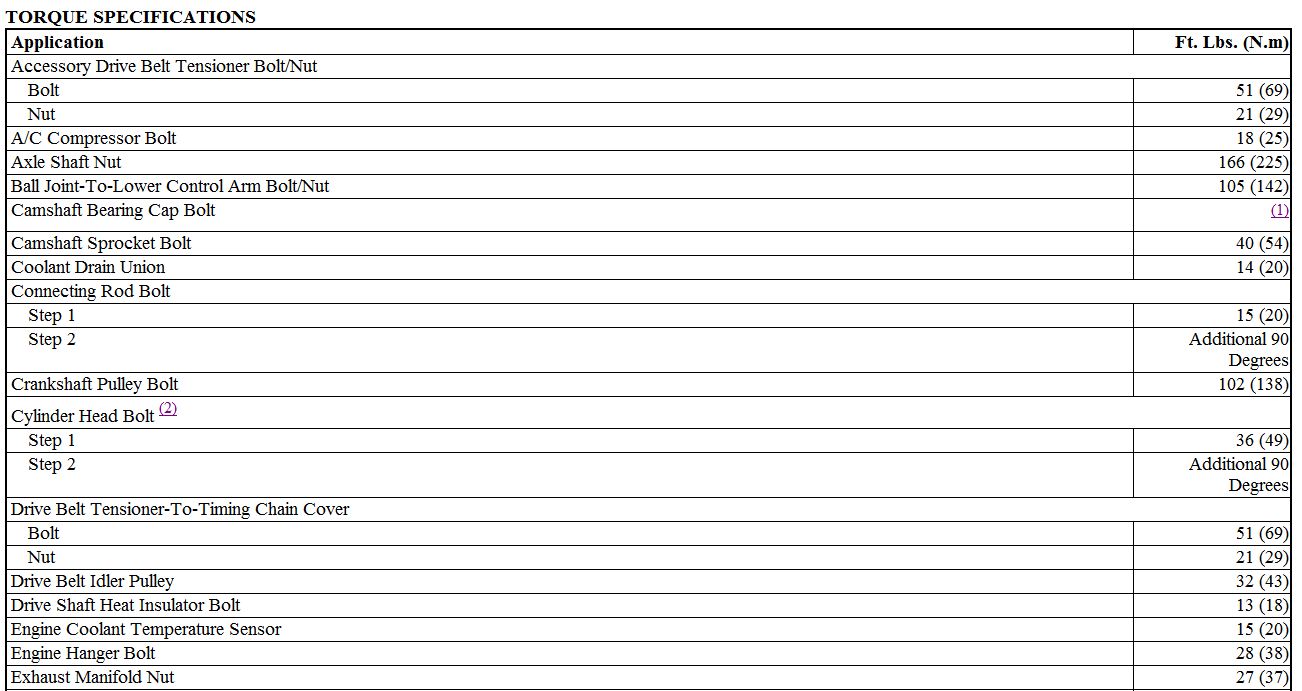

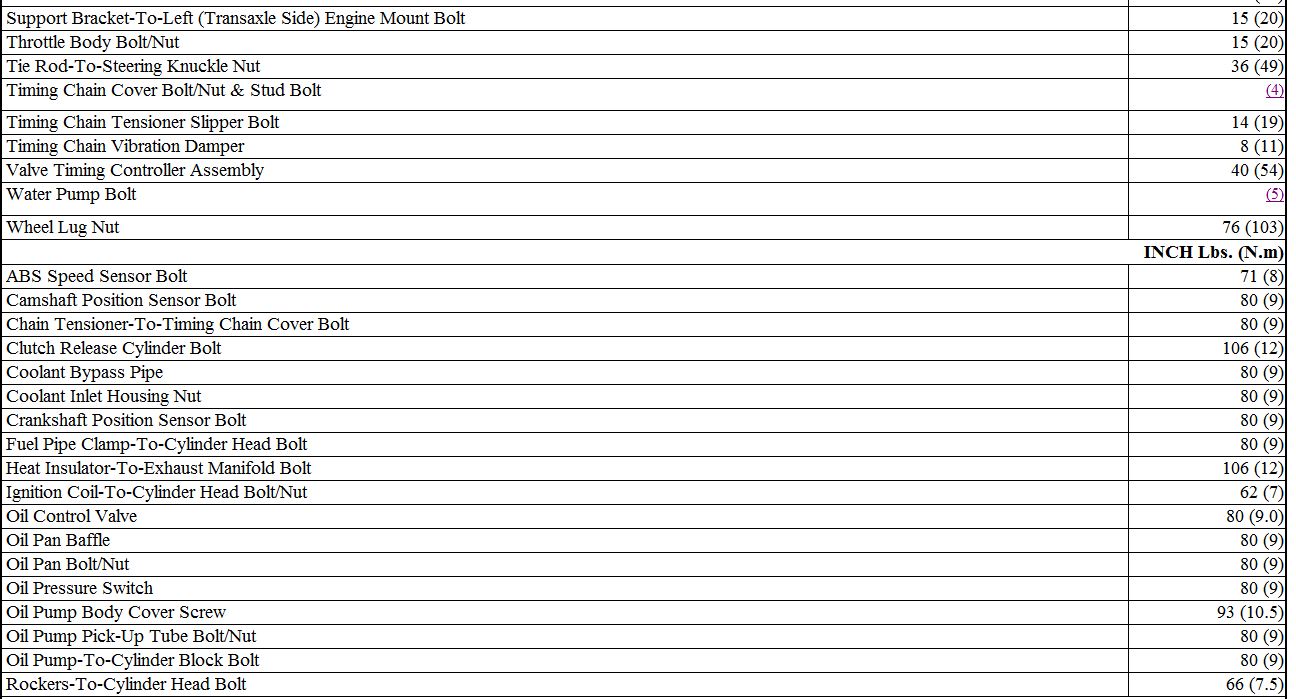

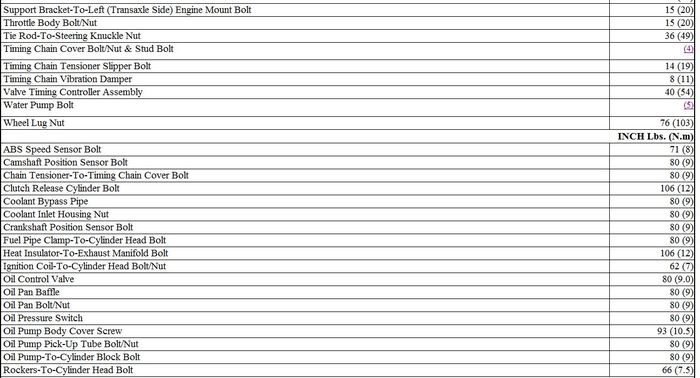

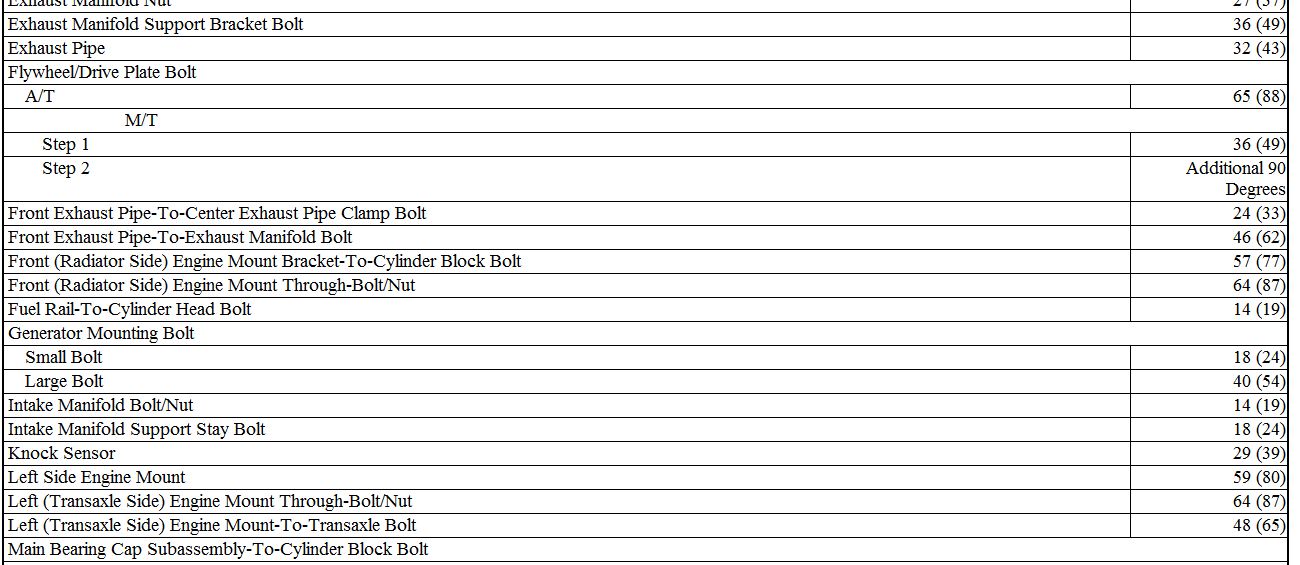

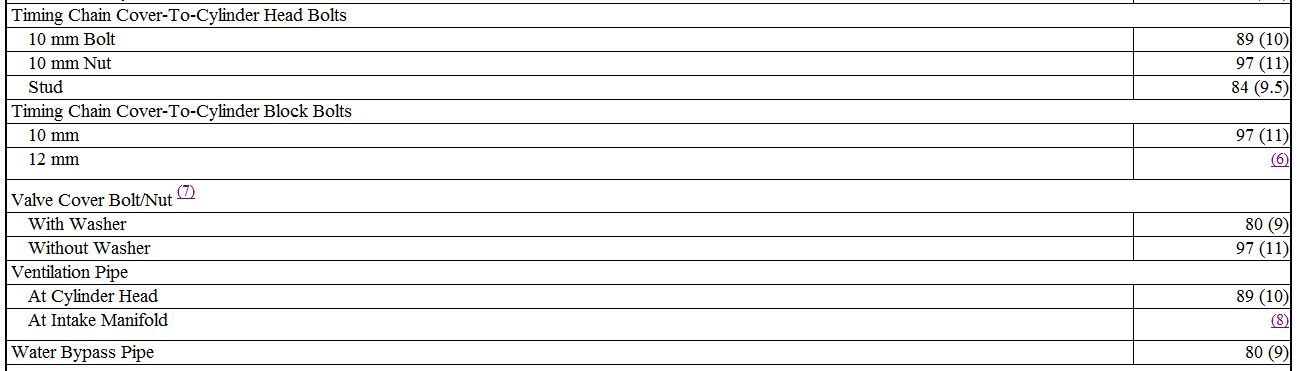

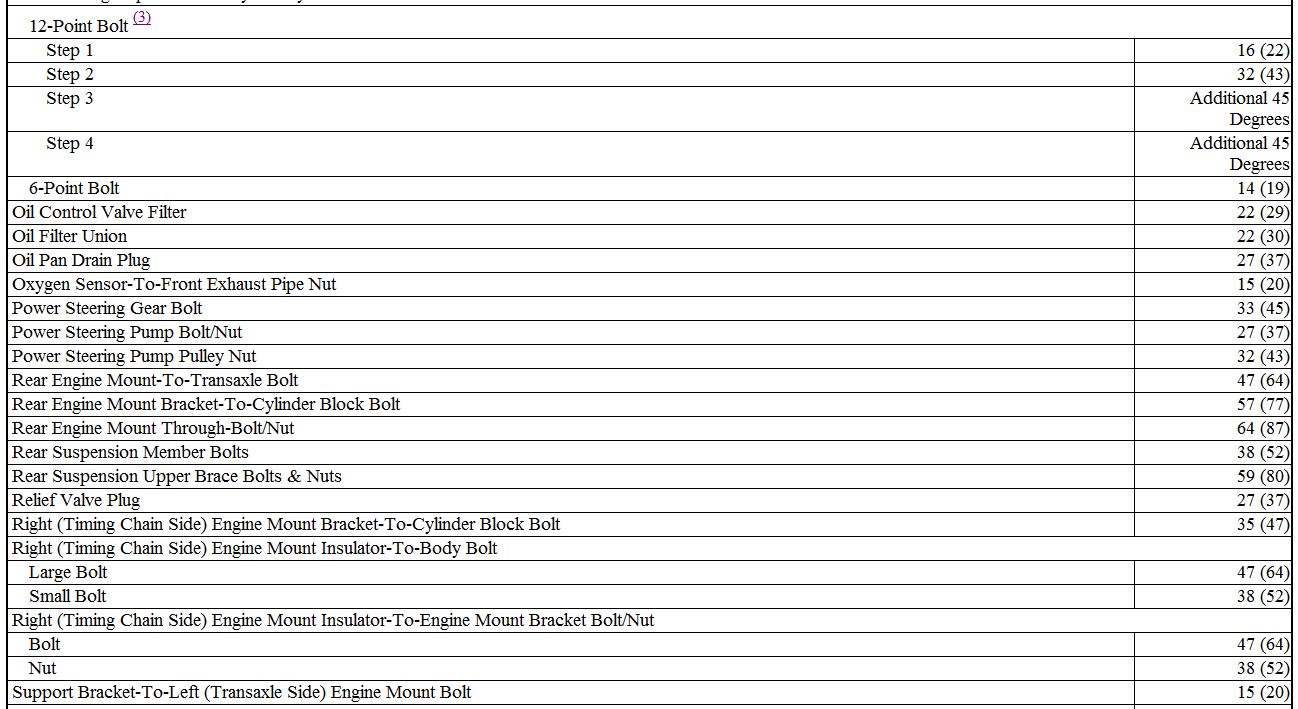

I am attaching the entire overhaul torque specifications. They are numbered in order. click the images (below).

Cheers!
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jul 6, 2012 at 7:25 PM
Avatar
TADESSE
  • MEMBER
  • 4 POSTS
thank you very much, sir.
Jul 6, 2012 at 8:09 PM
Advertisement
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS
You are very welcome.
Jul 6, 2012 at 10:41 PM
