Ignition lock tumbler replacement instructions

2002 TOYOTA AVALON
220,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
PMPARKER86
  • MEMBER
  • 1 POST
This car has sat for about 6 months due to being away for work. I am now trying to get the car started again. I've already replaced the battery and prior to not driving it I was having ignition lock cylinder issues. I have also replaced that part. when I installed the new lock cylinder the illumination ring that fits over the cylinder would not fit unless I removed the inner ring that contained two wires that attached somewhere behind the dash. I am still unable to start the car and was wondering if this inner ring has anything to do with it. any help would be greatly appreciated.
Jul 7, 2015 at 3:43 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
If you got a couple pictures of what you are dealing with, I am sure we can figure this out.

However, I suspect you have something not fully seated or not in the correct order.

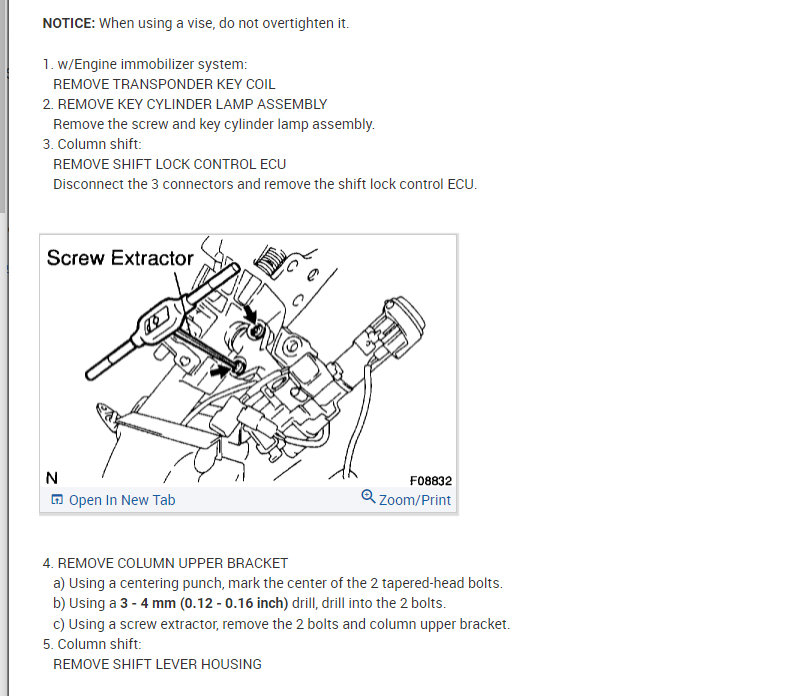

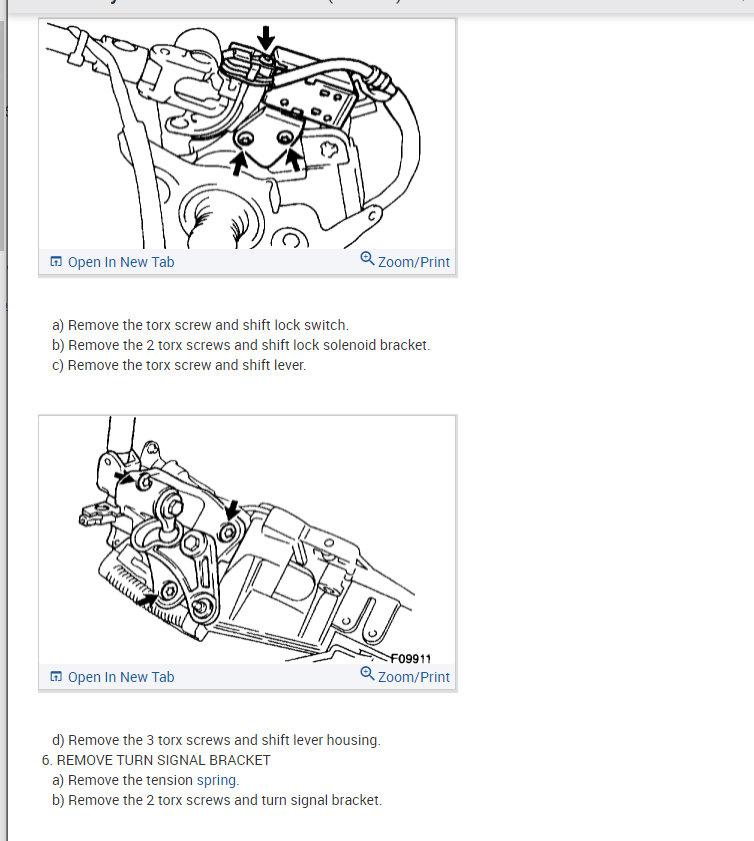

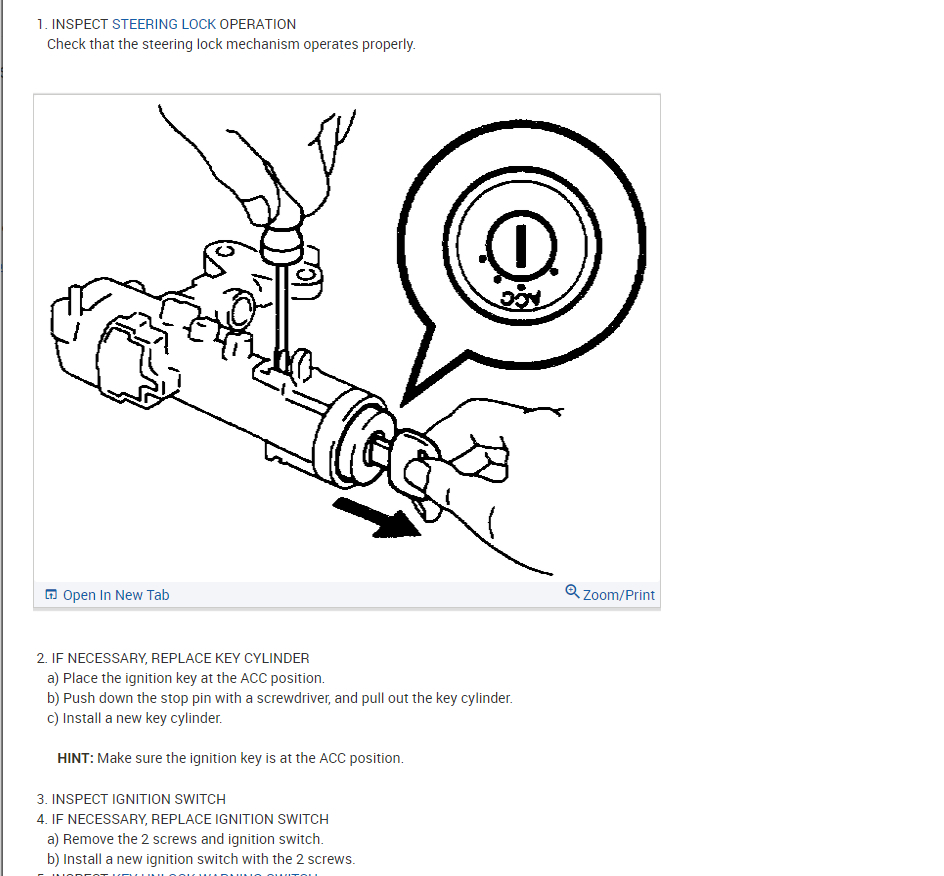

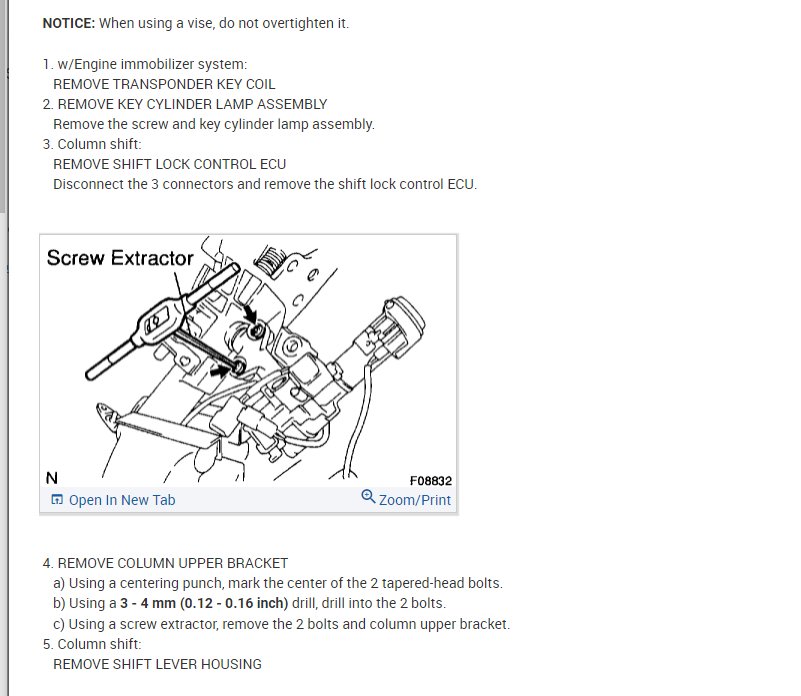

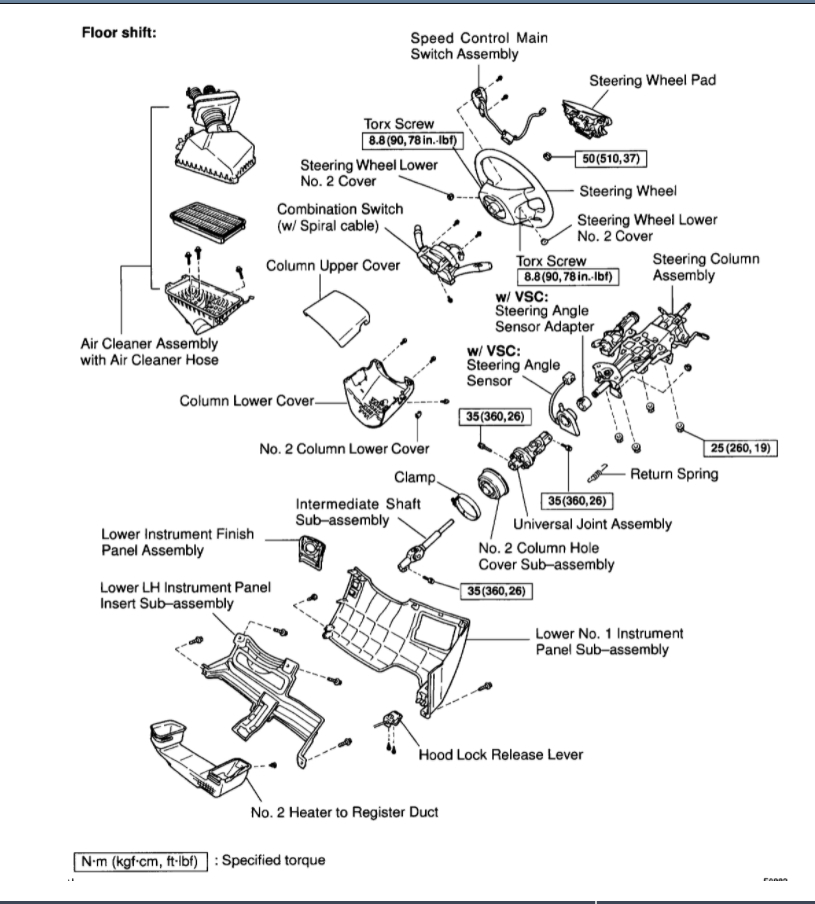

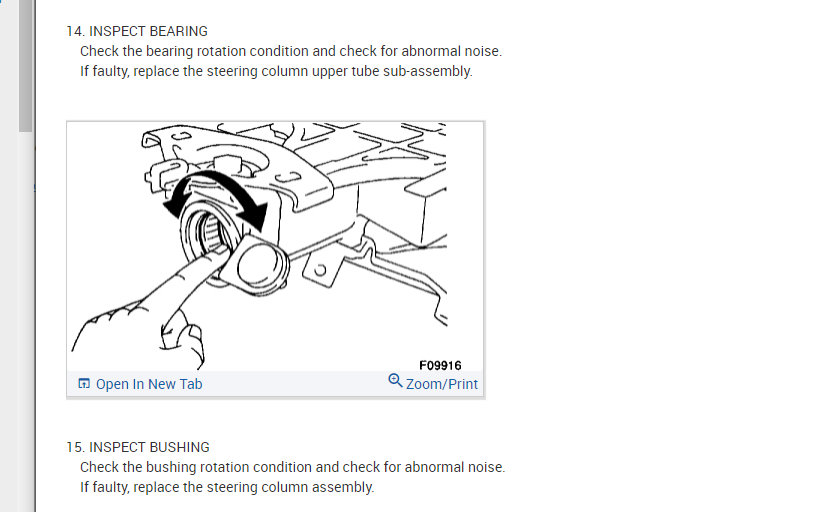

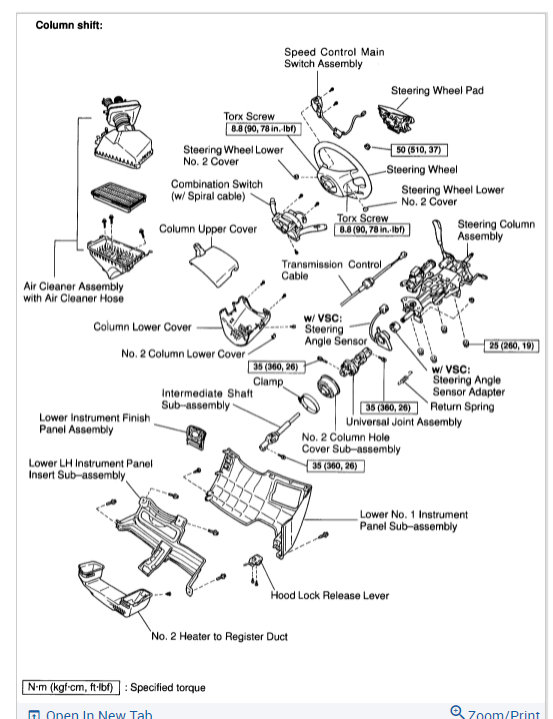

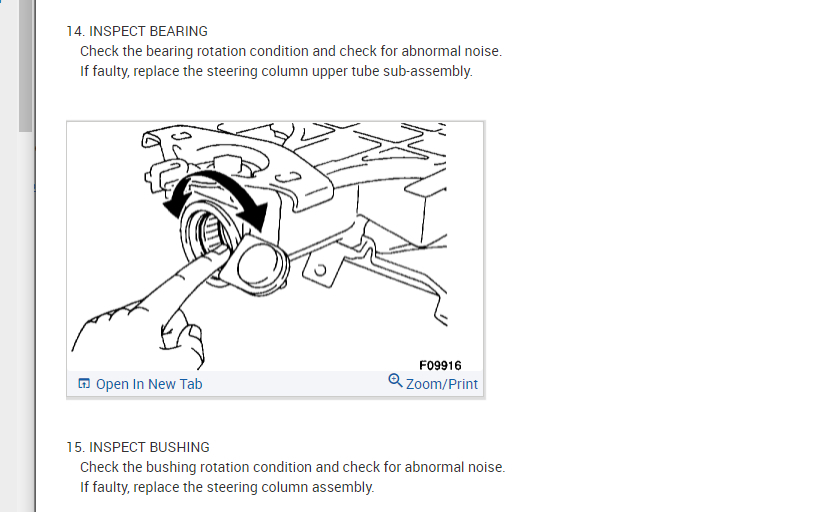

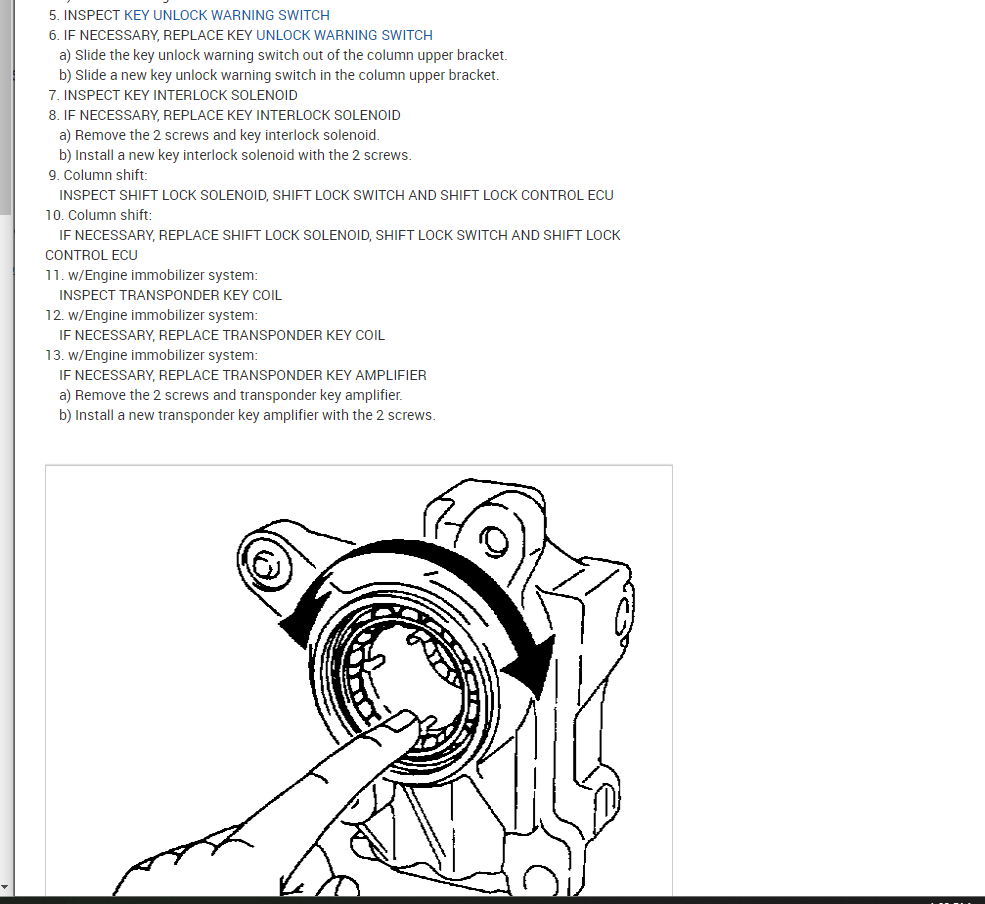

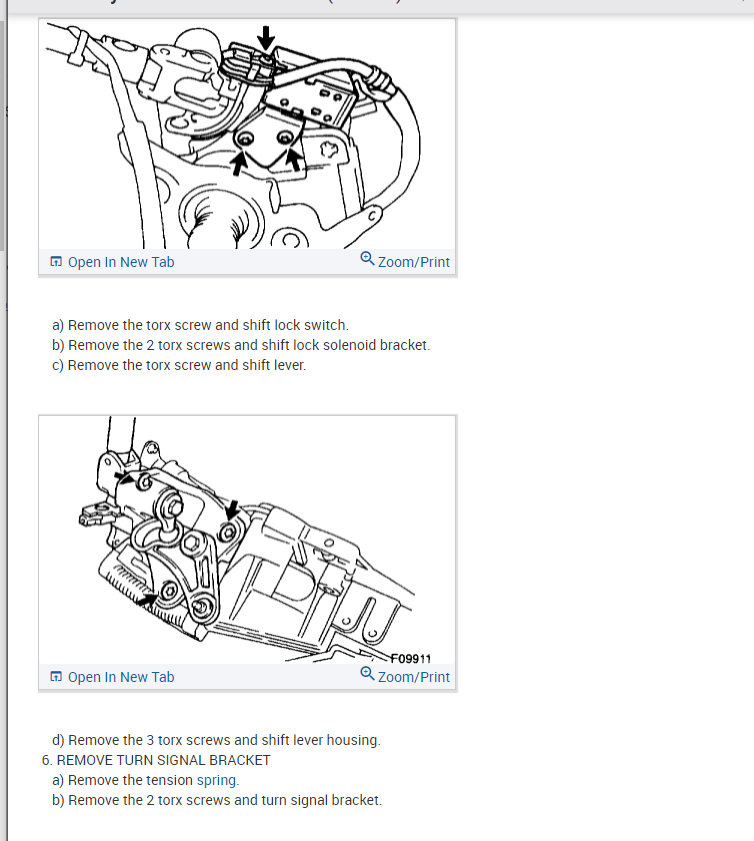

I am including the process below on how to disassemble and inspect the ignition to see if you are missing something.

Please run through this material and let us know if you have other questions. Thanks
Aug 4, 2021 at 10:09 AM
