2002 subaru forester timing...

2002 SUBARU FORESTER
144 MILES • 4 CYL • AWD • AUTOMATIC
Avatar
MUNEE69
  • MEMBER
  • 1 POST
How do I know that both cams are in correct revolution with crank on 2002 subaru forester "L" SOHC 2.5L Timing belt broke on the old lady going about 55mph and now I have to guess if each is still in proper rotation?
Apr 9, 2011 at 11:22 AM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
That alignment marks aren't really your big problem here. This is an interference engine and chances are nearly 100% that the engine has a bunch of bent valves now.

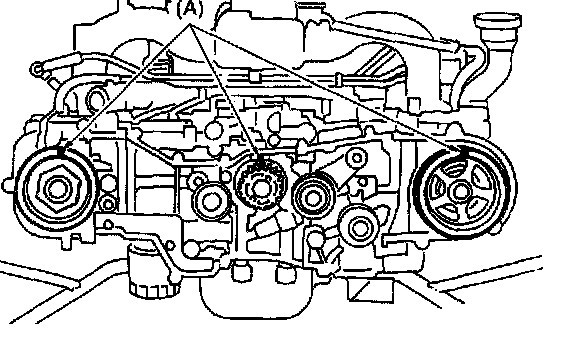

Here is you alignment diagram.
Image (Click to enlarge)
Attached Media
Apr 9, 2011 at 12:02 PM
