want directions for replacing hazard switch
Aug 25, 2012 at 2:18 AM
how to change a hazard switch on 02 saturn l300 turn signals wont work
2002 SATURN L300
TRELOVER
- MEMBER
- 20 POSTS
- FOLLOW
Advertisement
I assume you have tested and confirmed the switch is faulty.

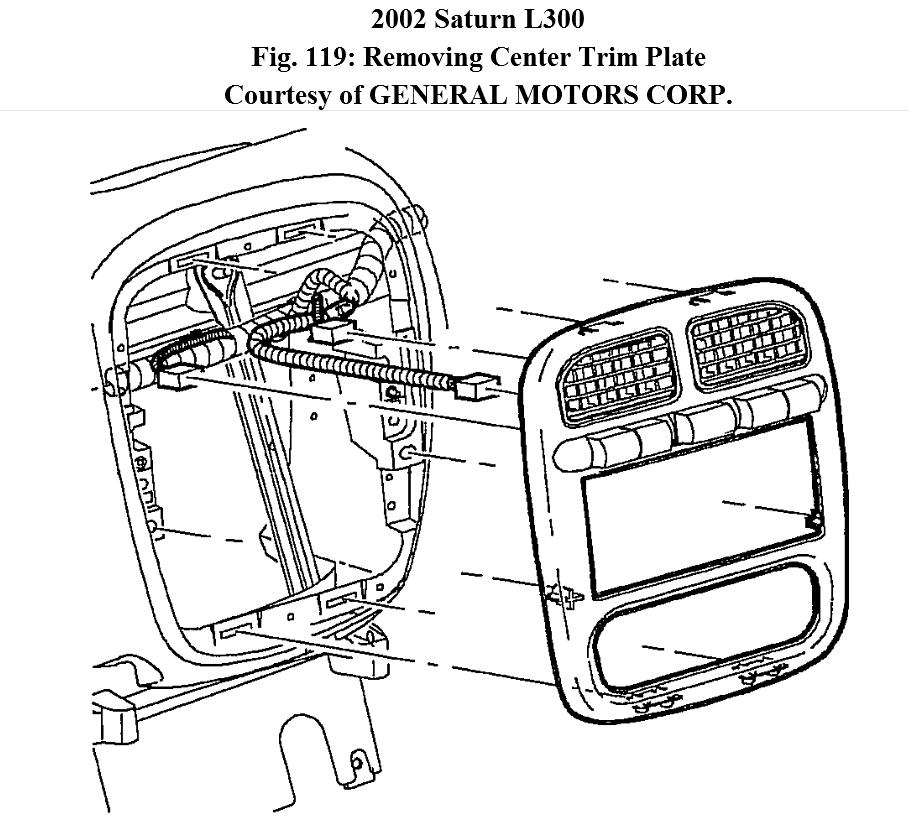

To remove center trim plate.
A. Grab trim plate at A/C vent area and pull gently to disengage attaching clips.
B. Tilt trim plate sideways.
C. Disconnect driver heated seat/fog switch, hazard switch, and
traction/passenger heated seat switch electrical connectors and remove trim plate.
To remove center trim plate.
A. Grab trim plate at A/C vent area and pull gently to disengage attaching clips.
B. Tilt trim plate sideways.
C. Disconnect driver heated seat/fog switch, hazard switch, and
traction/passenger heated seat switch electrical connectors and remove trim plate.
Image (Click to enlarge)
Aug 25, 2012 at 2:34 AM
Just add to this 1 what are the symptoms?
