brake light no work

2002 PONTIAC GRAND AM
4 CYL • 2WD • AUTOMATIC
Avatar
MARVIN0105
  • MEMBER
  • 1 POST
I have a 2002 Pontiac Grand Am, my left brake light won't light when the brake is pressed. All of my bulbs illuminate when the lights and hazards are on. What could be the problem?
Feb 2, 2011 at 12:49 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

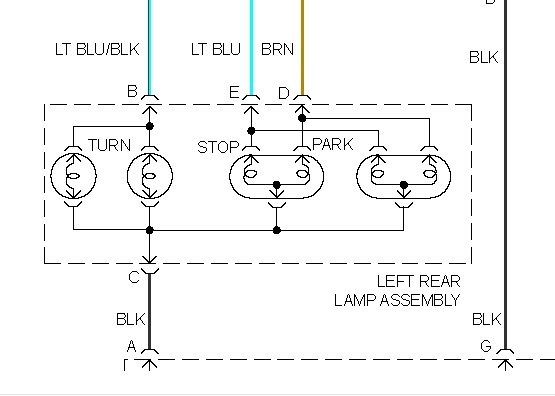

Check the lite blue wire for voltage. That wire carries voltage for left brake lite, use voltage tester. There is a junction at left instrument panel fuse block.
Image (Click to enlarge)
Attached Media
Feb 2, 2011 at 8:24 PM
Avatar
ASHER C SMALE
  • MEMBER
  • 1 POST
My brake lights do not work. All lights are good, all fuses good. Think it might be the tail light circuit board. Only problem Pontiac no longer makes a replacement part. Can I bypass the circuit board, by straight wiring the lights?
Feb 4, 2021 at 9:47 AM (Merged)
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS

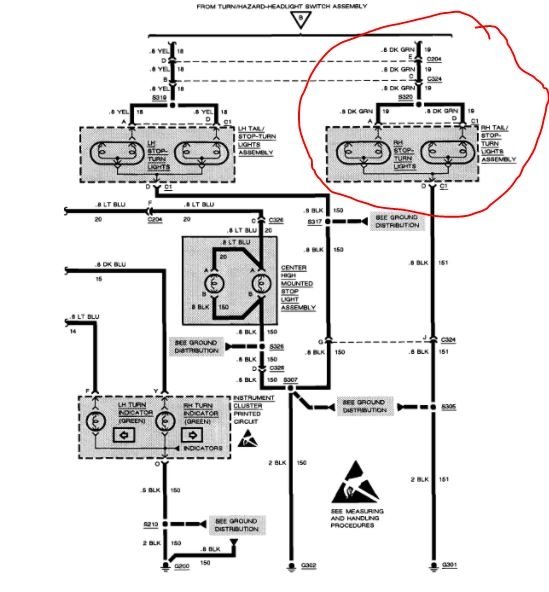

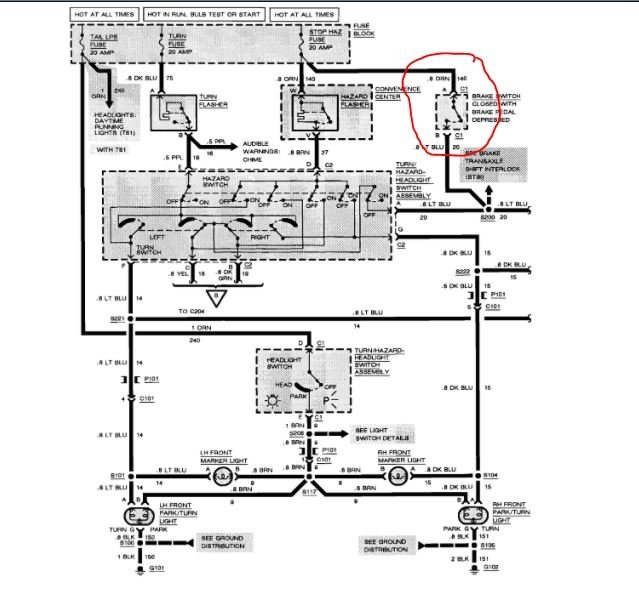

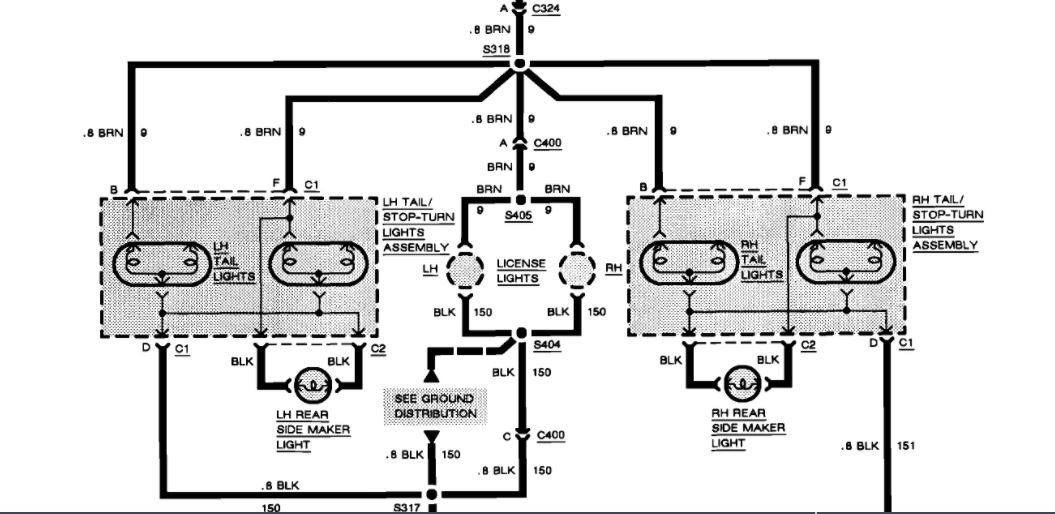

I attached a wiring diagram for you to view.

https://www.2carpros.com/articles/how-to-check-wiring

You need to test for voltage to the stoplight switch and the output as well.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

If that is OK, then you need to go to the rear socket and check for power there.

Roy
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Feb 4, 2021 at 9:48 AM (Merged)
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Okay, I attached some rear lens with the circuit boards attached that are used.

Go to car-part.com and you will see pages of them in your area.

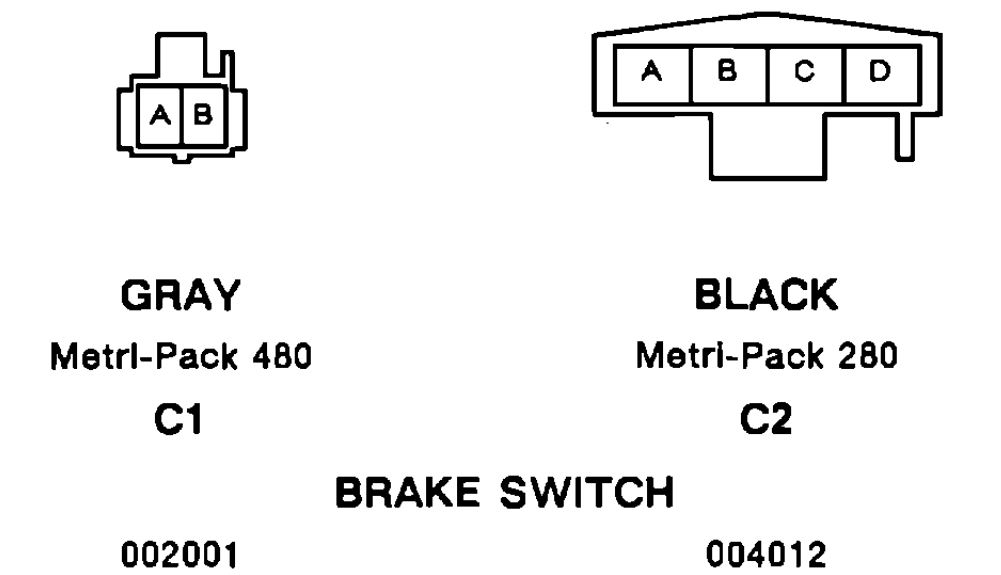

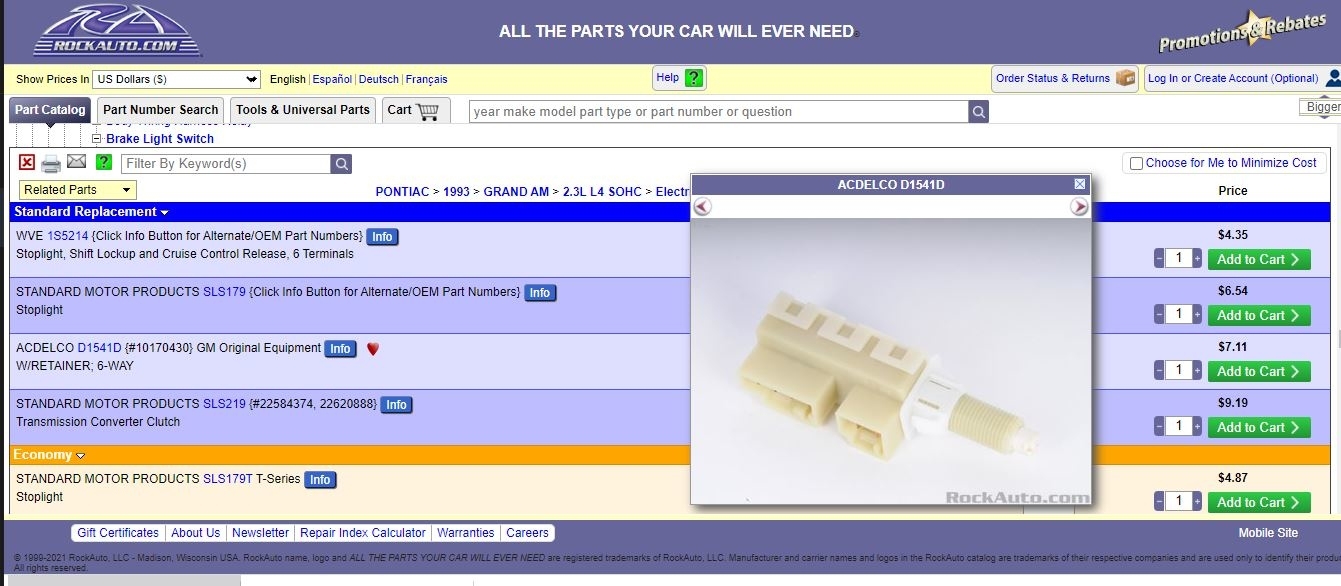

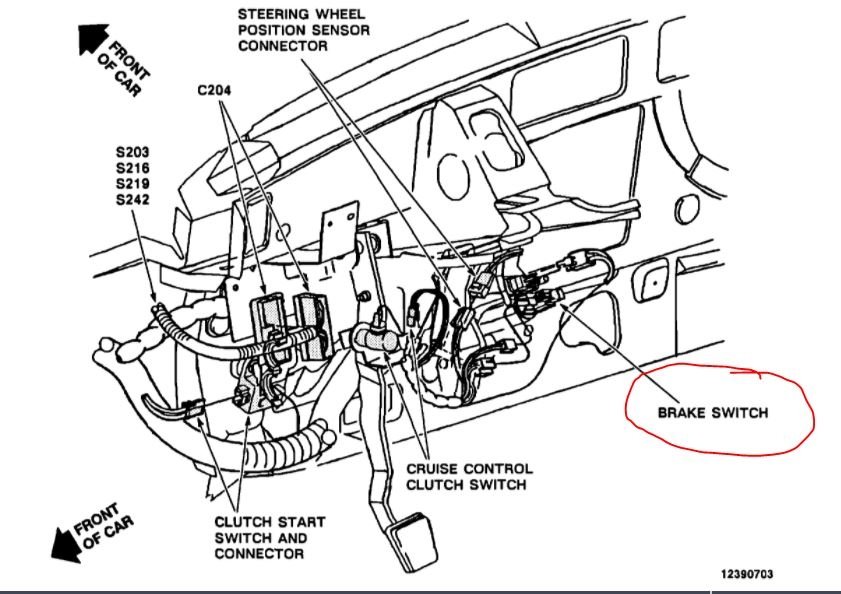

I also attached the brake light switch.

Did you verify no power to the brown wire with the pedal depressed?

Roy
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Feb 4, 2021 at 9:48 AM (Merged)
