2002 PONTIAC BONNEVILLE
Avatar
EMMETT 31
  • MEMBER
  • 2 POSTS
how to pull the transmission in my Pontiac Bonneville
Mar 5, 2012 at 1:23 AM
Advertisement
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS

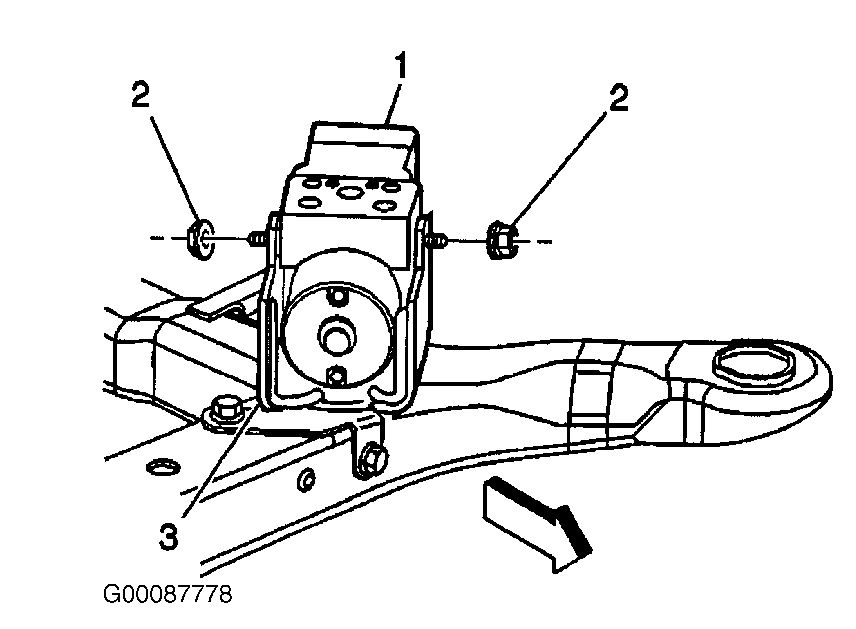

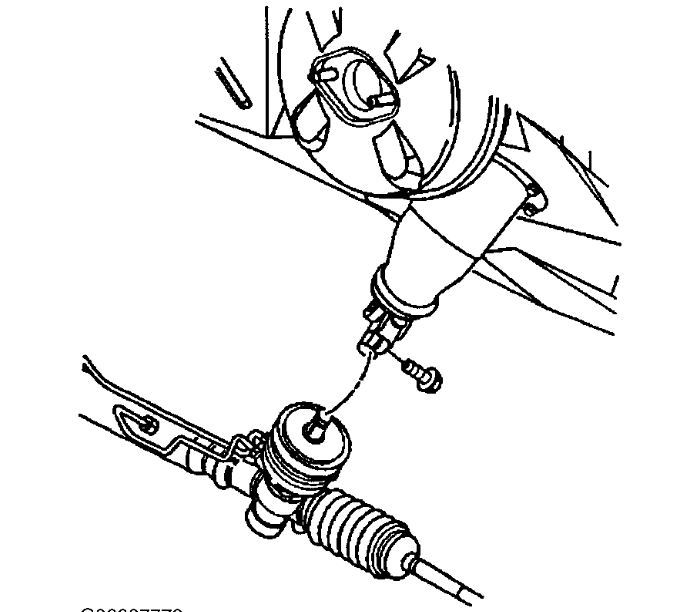

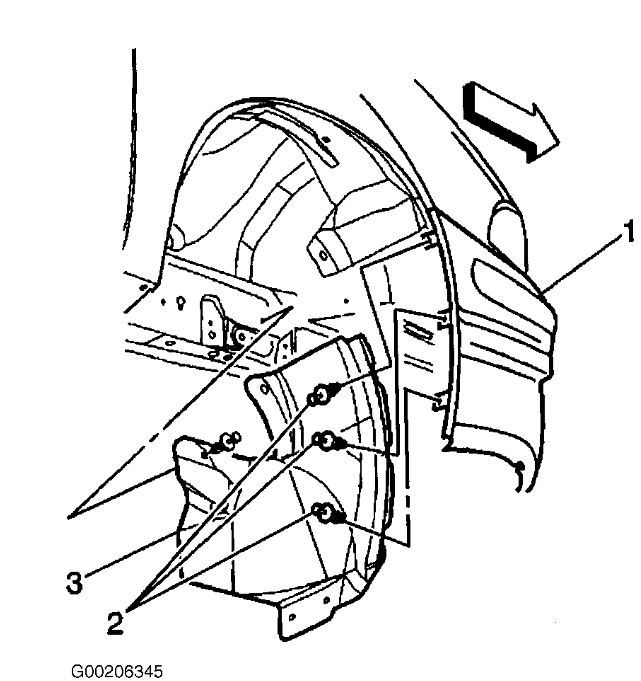

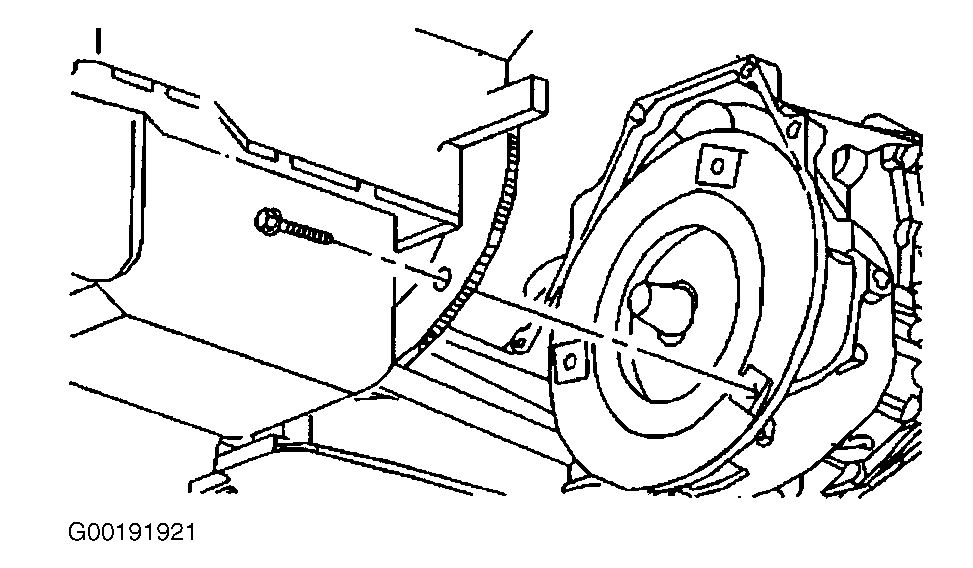

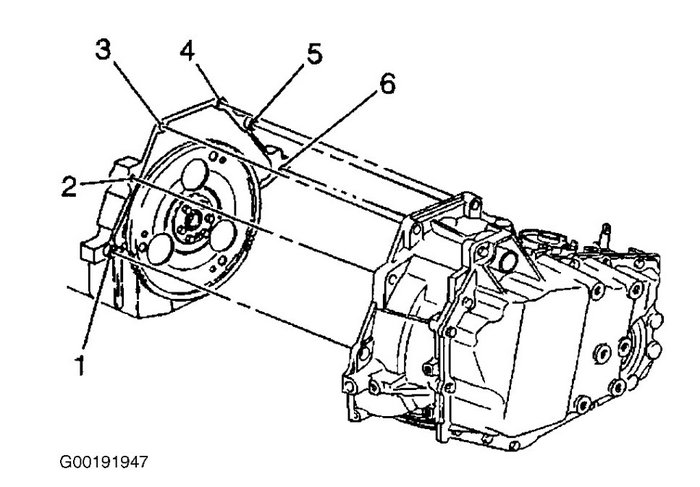

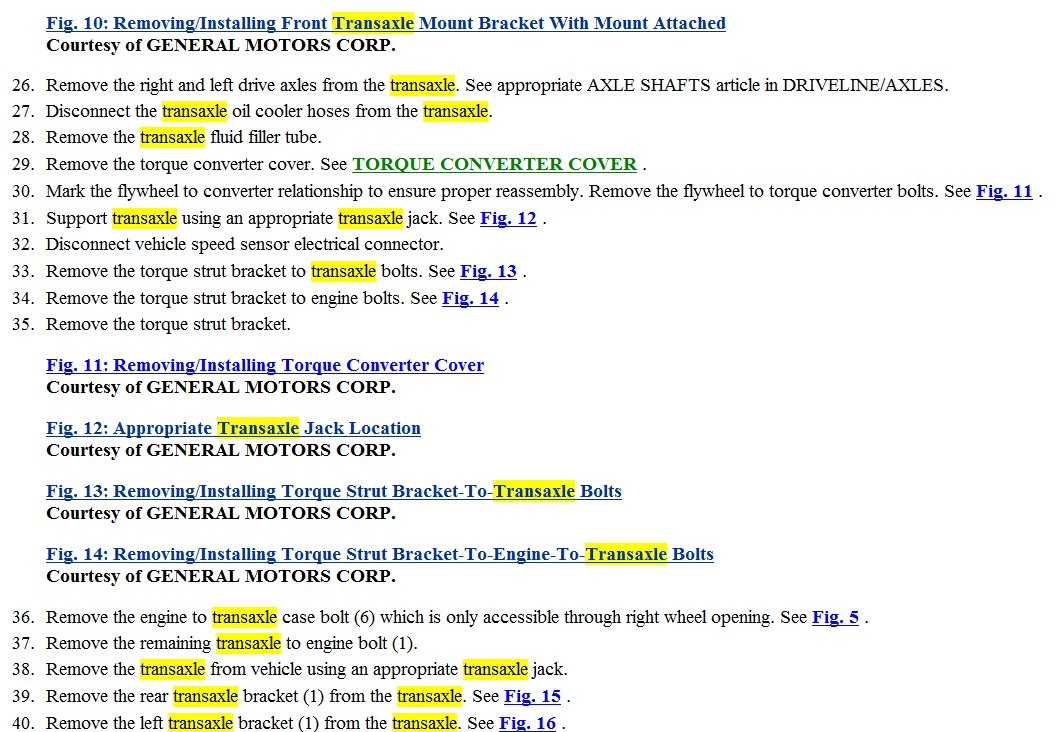

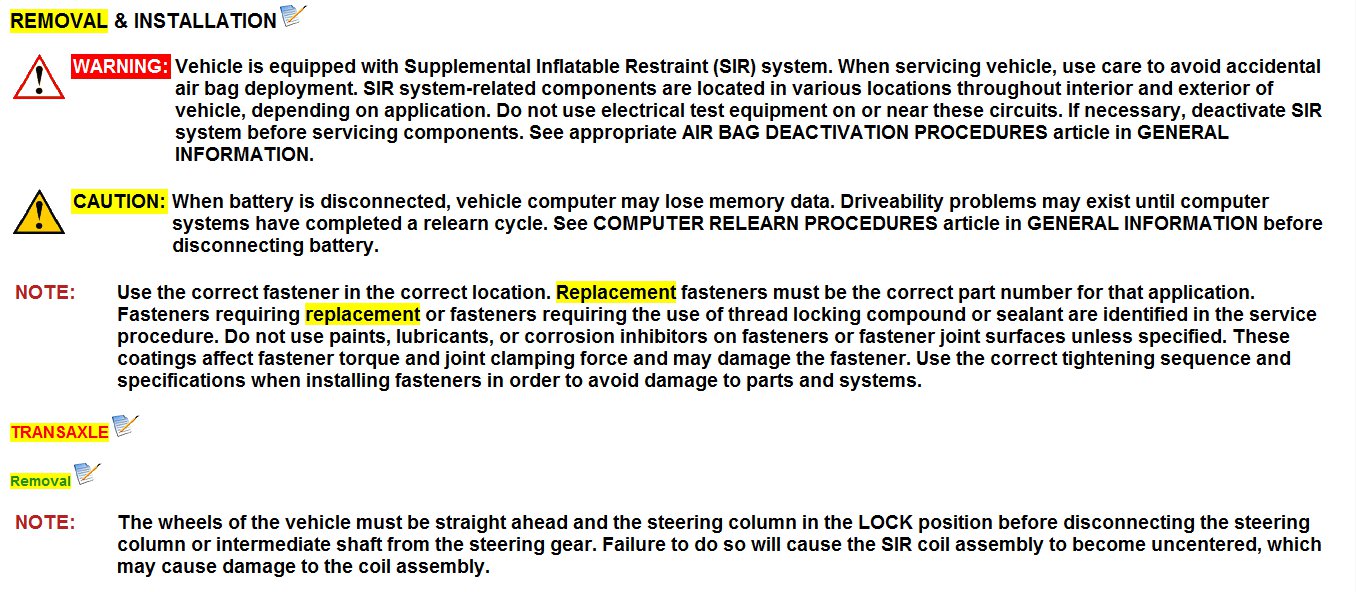

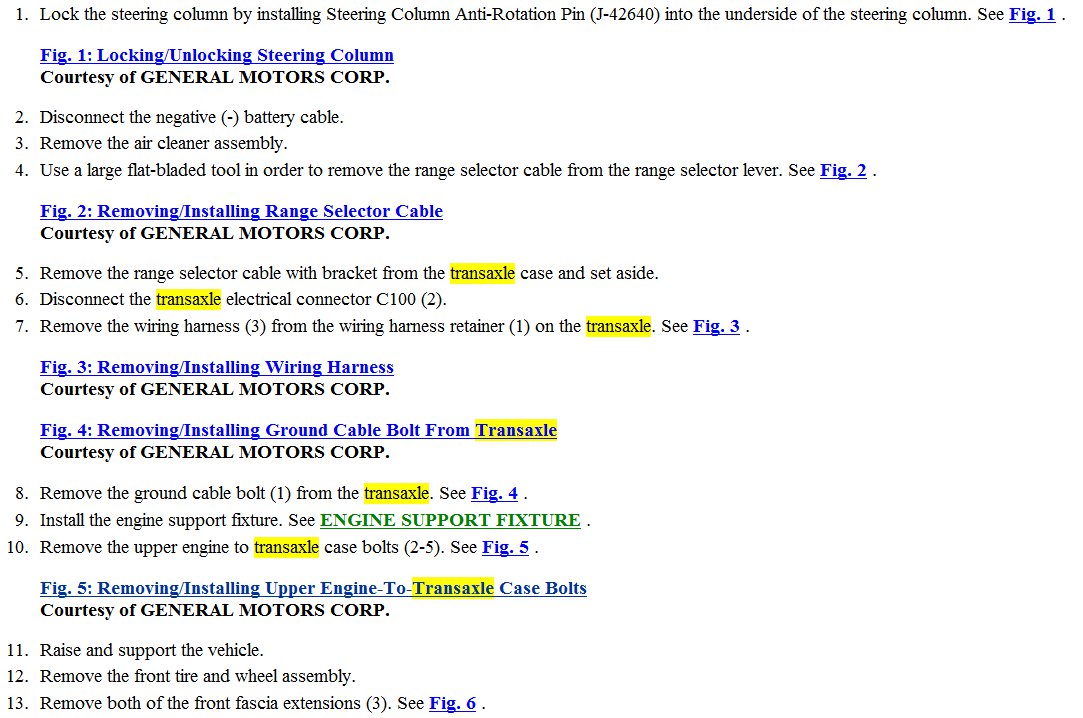

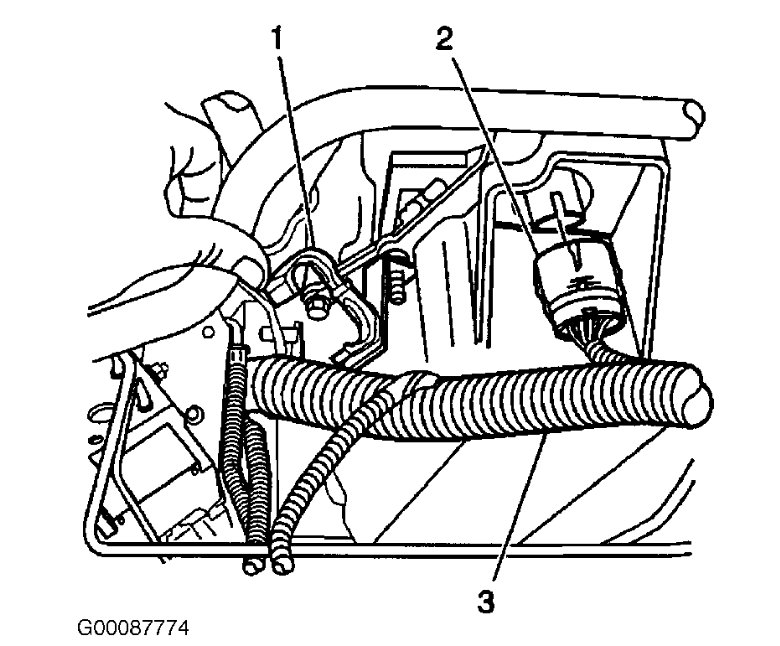

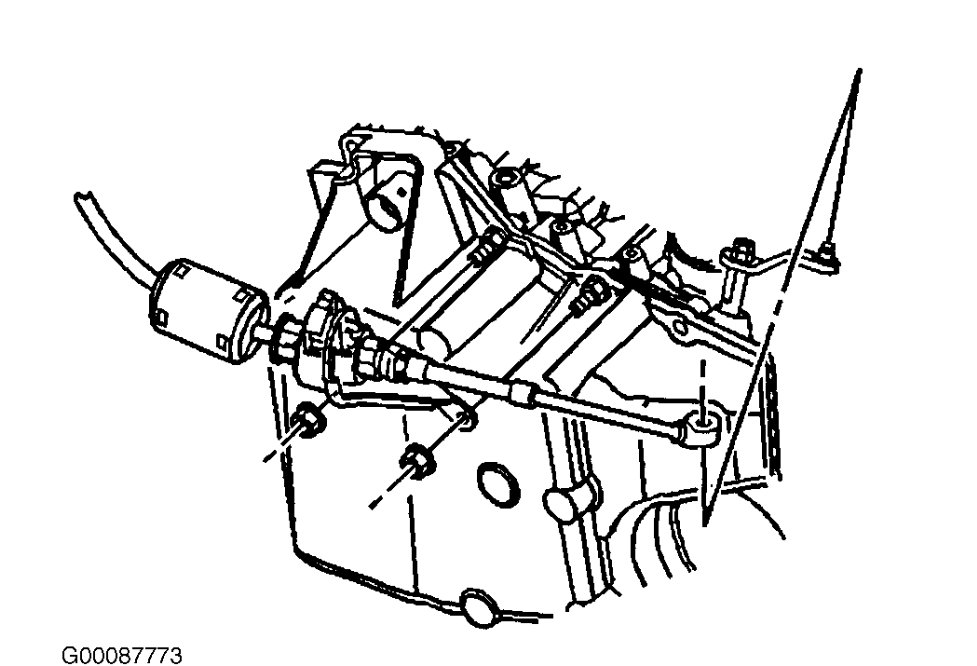

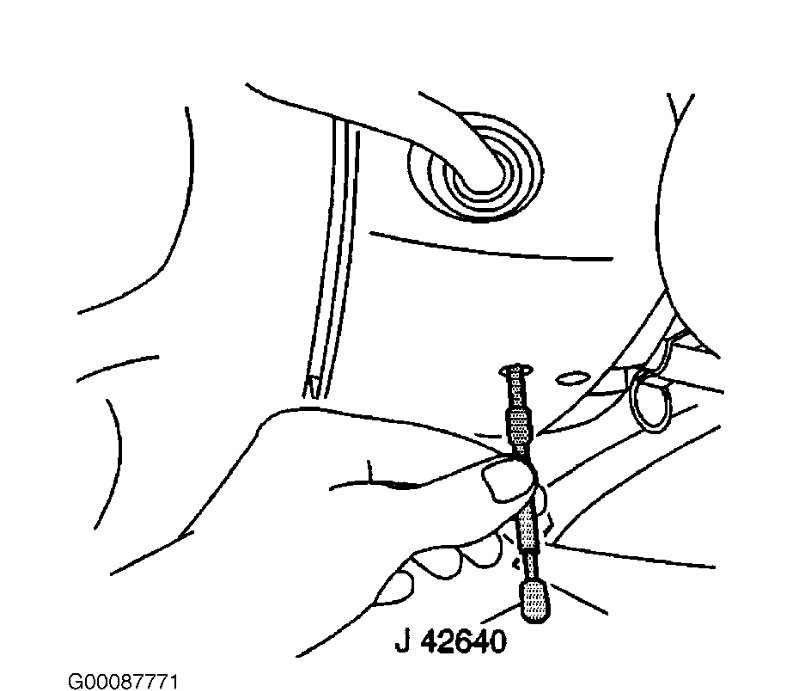

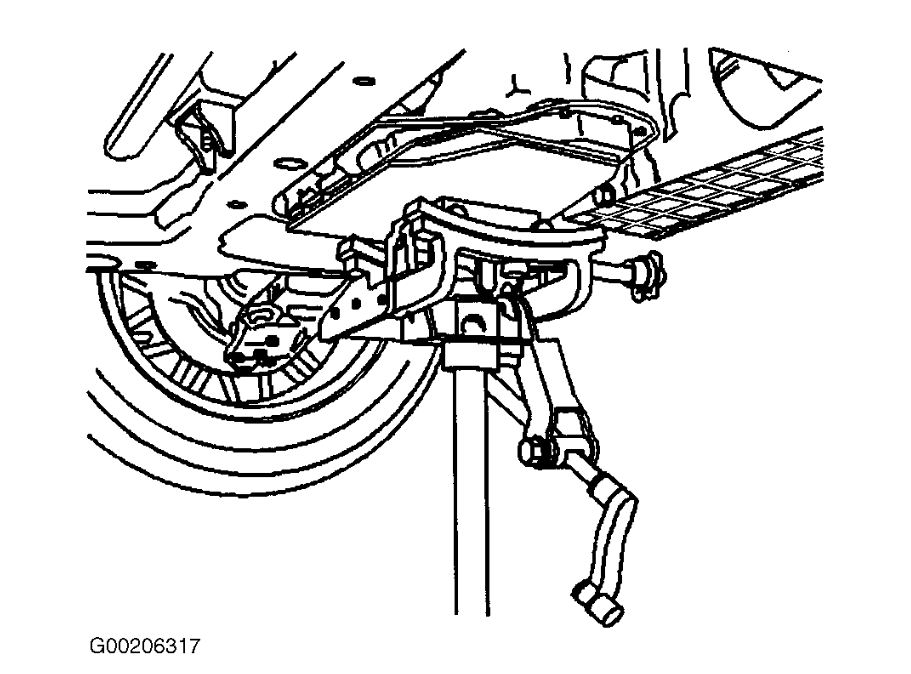

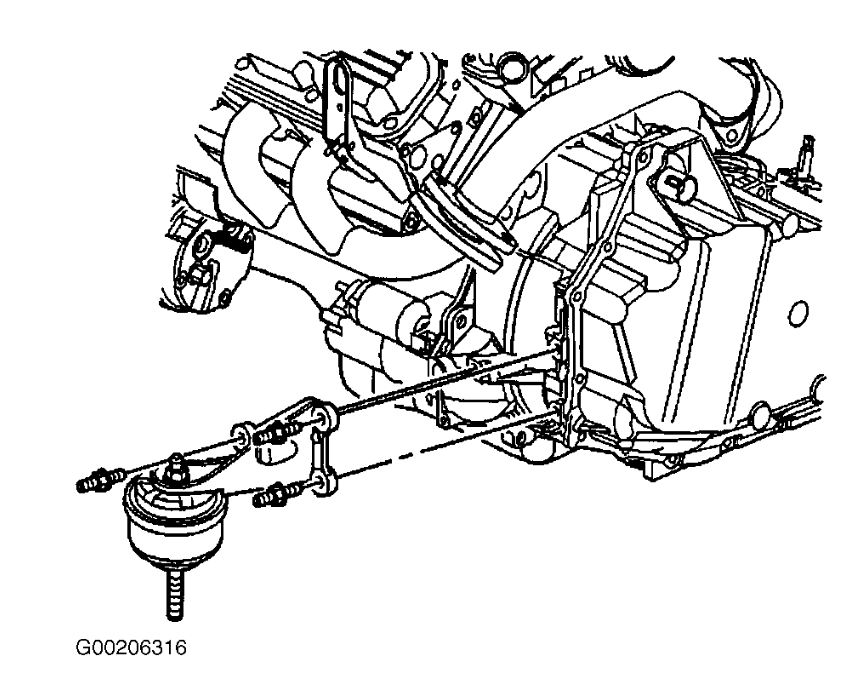

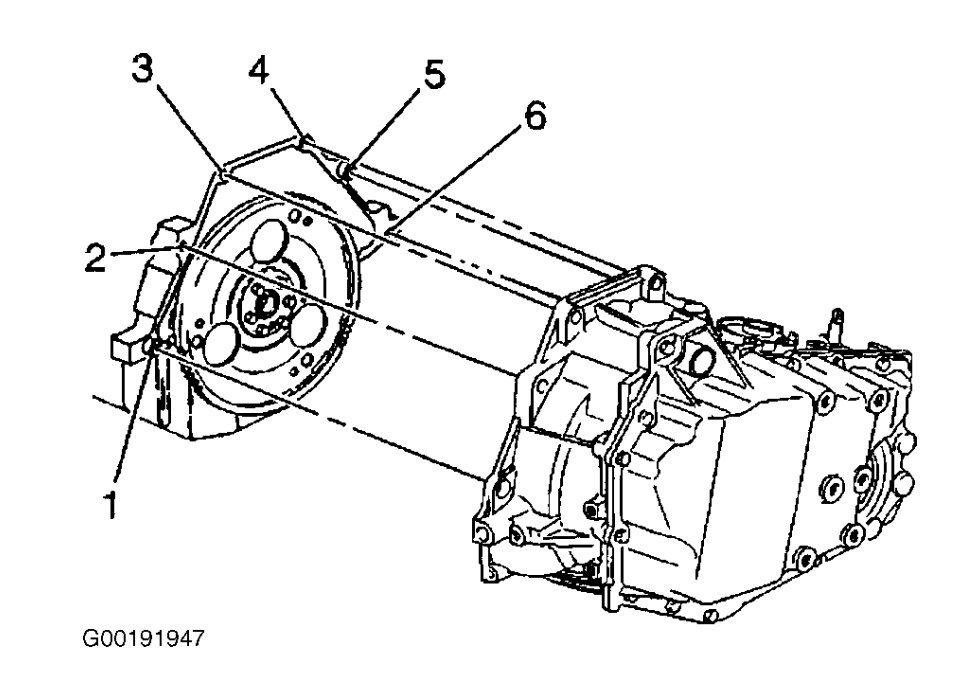

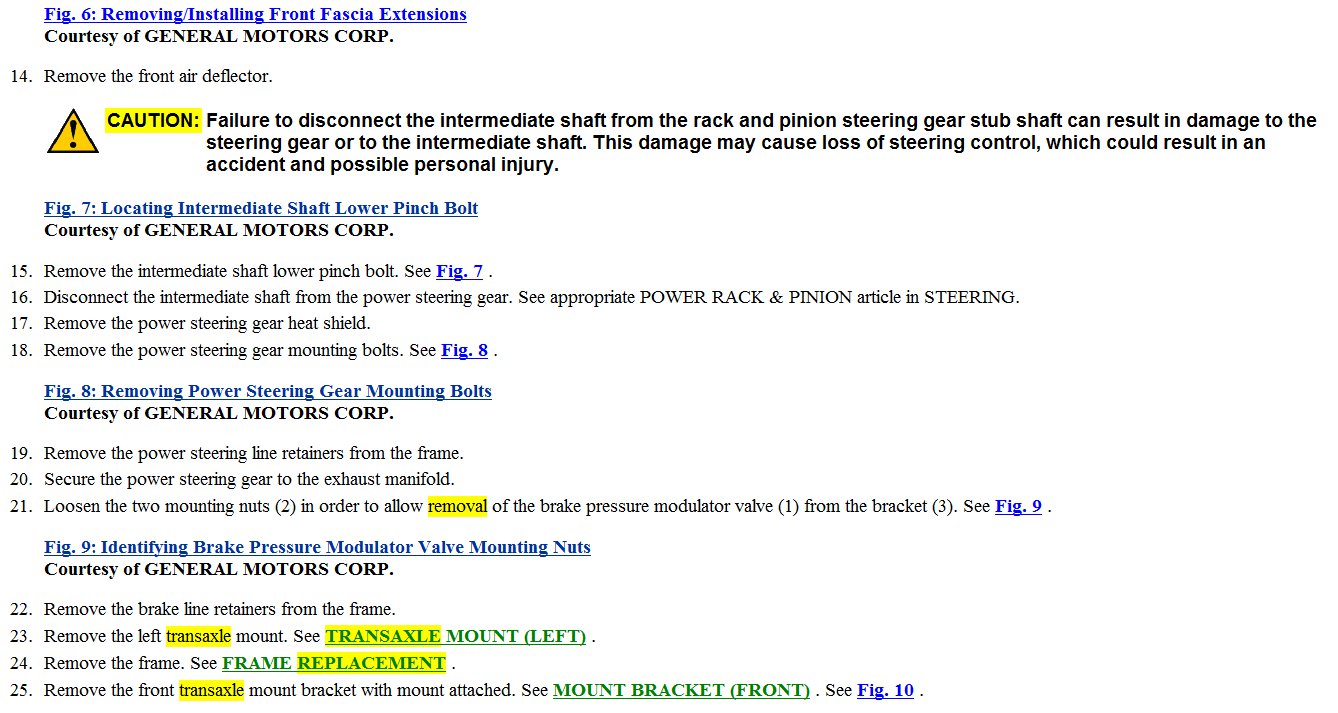

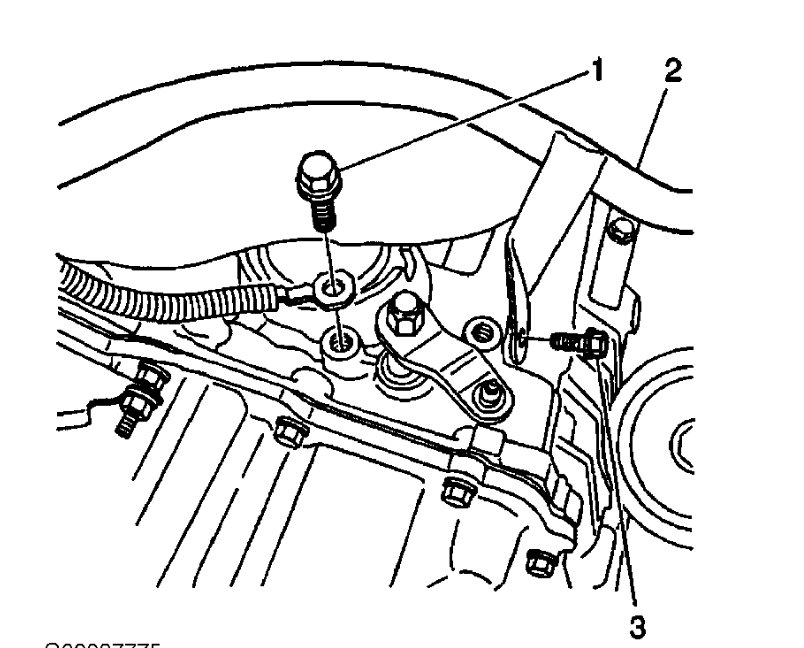

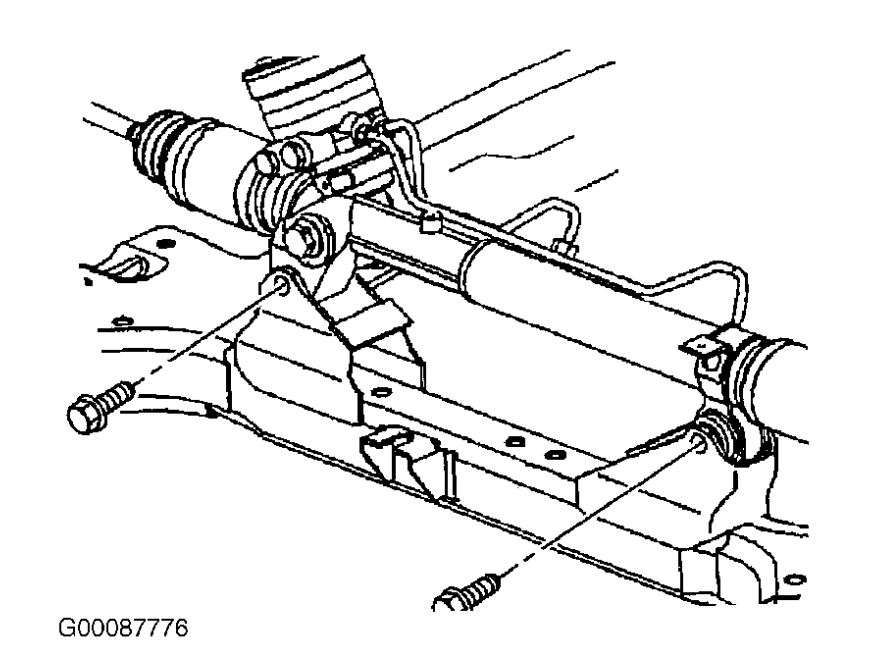

I am attaching intructions for transmission removal and the files are numbered in sequence. I am also attaching all referenced FIGs form instructions.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Mar 5, 2012 at 1:52 AM
Avatar
EMMETT 31
  • MEMBER
  • 2 POSTS
ty
Mar 5, 2012 at 1:57 AM
Advertisement
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS
Your very welcome. Come back if you need anything.
Mar 5, 2012 at 2:21 AM
