Oz Rally clutch issue replacement diagram

2002 MITSUBISHI LANCER
150,000 MILES • 2.0L • 4 CYL • 2WD • MANUAL
Avatar
RAYRAY00
  • MEMBER
  • 1 POST
Clutch went to the floor. Starter engages, so I can start the car in gear. Not sure if it is the clutch or something else.

Will be replacing clutch with OEM clutch kit, but wanted to make sure it wasn't something else before I start. If you have instructions on how to, that would be great also!

Thanks,

RAYRAY
May 6, 2019 at 3:08 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Welcome to 2carpros.com

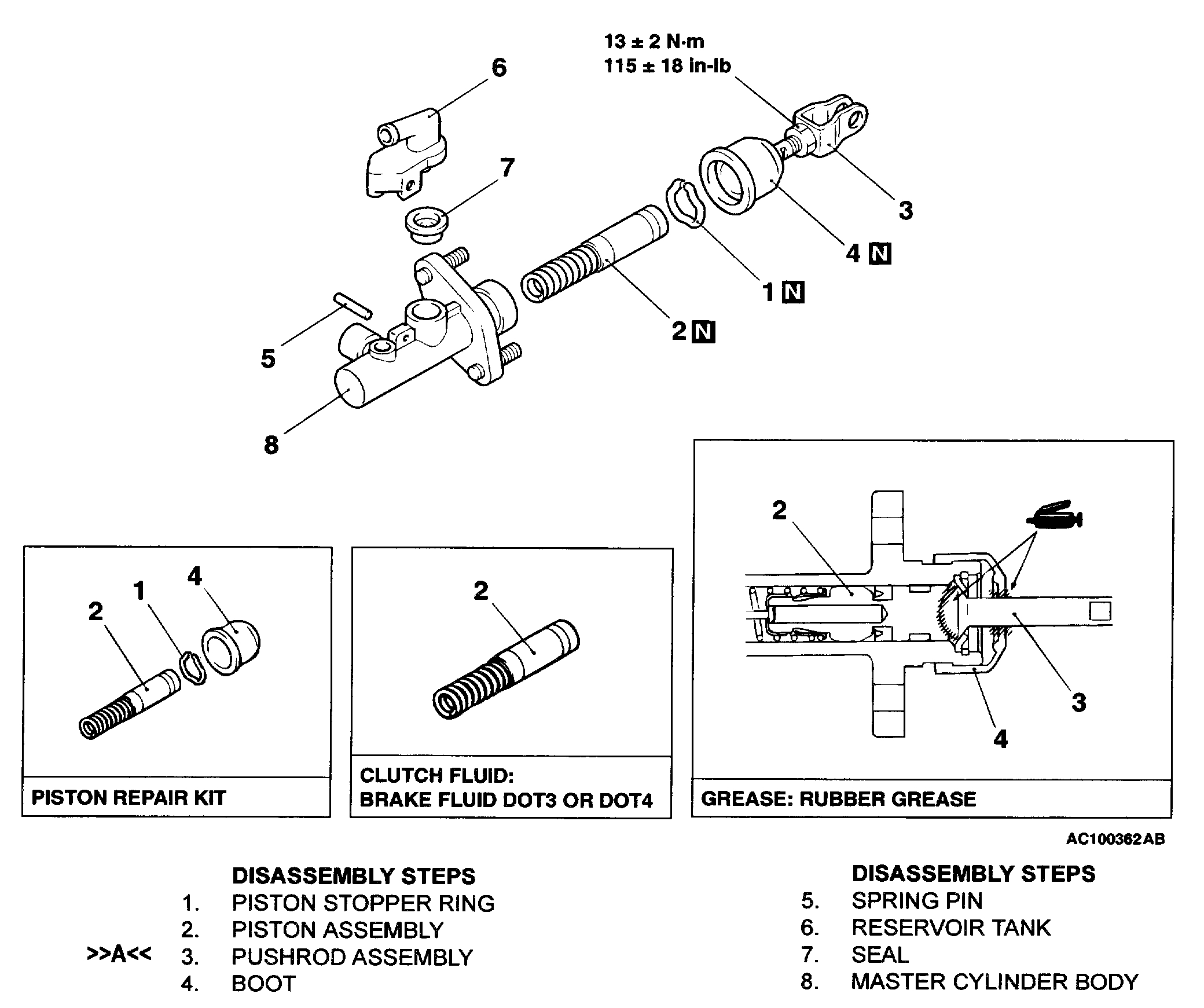

If the clutch went to the floor and you can not disengage the transmission, check for leaks at the clutch master cylinder, the hydraulic hose from the MC and the slave on the transmission. I attached two pics for you to see. The first shows the clutch master cylinder. It is mounted on the firewall under the hood and the top of the clutch pedal is mounted to it.

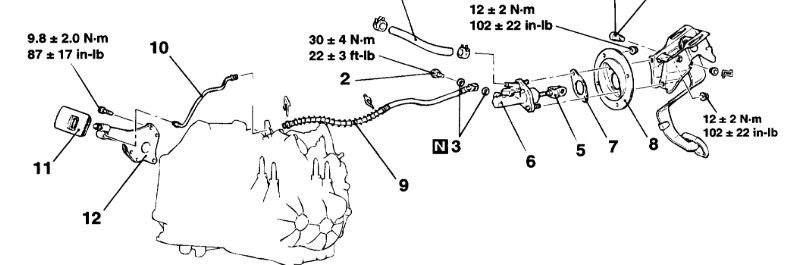

Pic 2 shows the set up. To the right is the MC, then the hose which runs to component 12 which is slave cylinder.

Check to make sure the reservoir is clean and full with fluid, and check to see if you can identify any leaks.

Let me know what you find.

Joe
Images (Click to enlarge)
Attached Media
Attached Media
May 6, 2019 at 7:14 PM
