The engine cranks but will not start, checked for spark and everything seemed okay

2002 MITSUBISHI DIAMANTE
145,000 MILES
Avatar
HYDAROOKIE
  • MEMBER
  • 6 POSTS
Is it a posibility that the fuel pump relay is bad? if so where is it located?
Sep 27, 2012 at 7:52 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Fuel pump is intank. You need to start by checking the fuses first.

https://www.2carpros.com/articles/how-to-check-fuel-system-pressure-and-regulator

The link explains how to check the fuel pressure.
Sep 27, 2012 at 8:06 PM
Avatar
HYDAROOKIE
  • MEMBER
  • 6 POSTS
When scanned the car it was throwing a code for the Multi Injection Relay(Fuel) I am trying to figure out where that is located?
Sep 27, 2012 at 8:44 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
What is the EXACT trouble code?
Sep 27, 2012 at 8:58 PM
Avatar
HYDAROOKIE
  • MEMBER
  • 6 POSTS
I'm sorry I was getting in information from the girl who owns the car, they did not scan the car but can you tell me where the fuel pump relay is located?
Sep 27, 2012 at 9:32 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

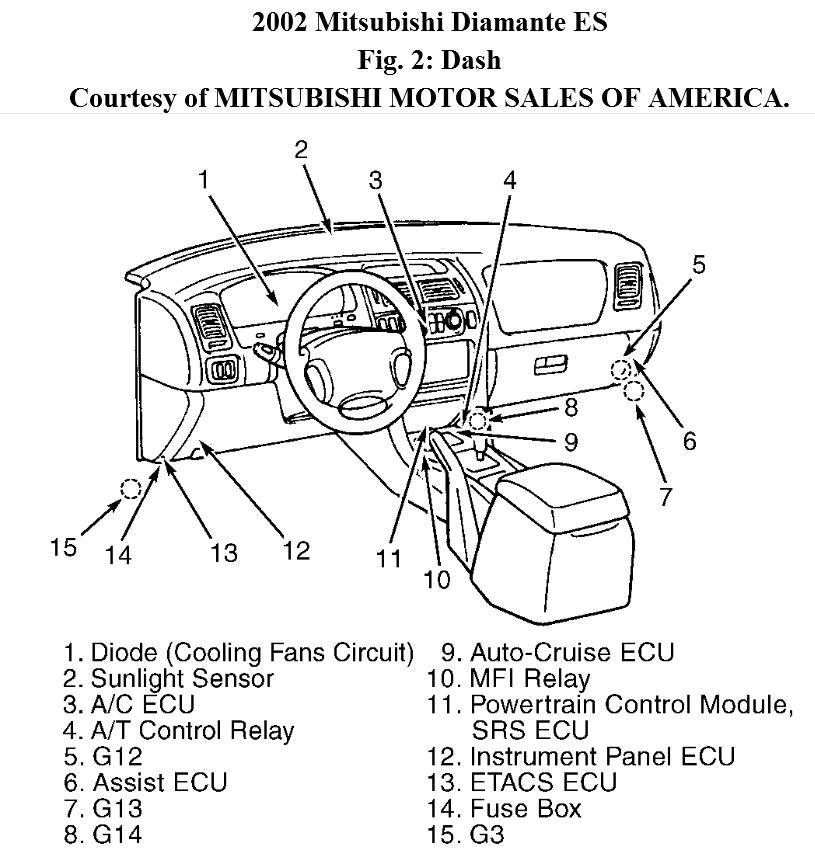

Both the MFI and fuel pump relays are in front of shifter, under center console.
Sep 27, 2012 at 9:50 PM
Avatar
HYDAROOKIE
  • MEMBER
  • 6 POSTS
Awesome that's what I needed to know, I'm going to start by checking to see if the pump is getting power and then check to see if the relays are getting power through. Thank you for your help the diagram helped alot
Sep 27, 2012 at 10:18 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You're welcome.
Sep 28, 2012 at 6:18 AM
