A/C only blow cold on the passenger side

2002 MERCURY MOUNTAINEER
187,562 MILES • 4.6L • V8
Avatar
DRE827768
  • MEMBER
  • 10 POSTS
M A/C is hot from the drivers side but cold on the passenger side. My compressor turns on for five seconds and then it turns off. The hoses that are connected to the compressor are new. What could be my problem?
Jun 29, 2015 at 10:12 PM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
Hello,

The fact that one side is cold means the system is charged. It sounds like you have a temperature blend door actuator for the drivers side. Here is a guide to help you see what you are in for when doing the job and the location of the actuator for your car below:

https://www.2carpros.com/articles/replace-blend-door-motor

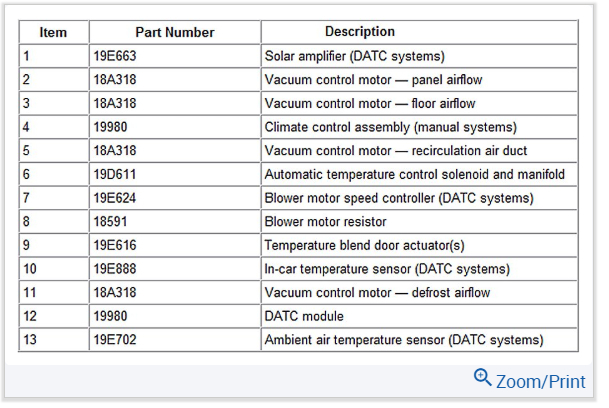

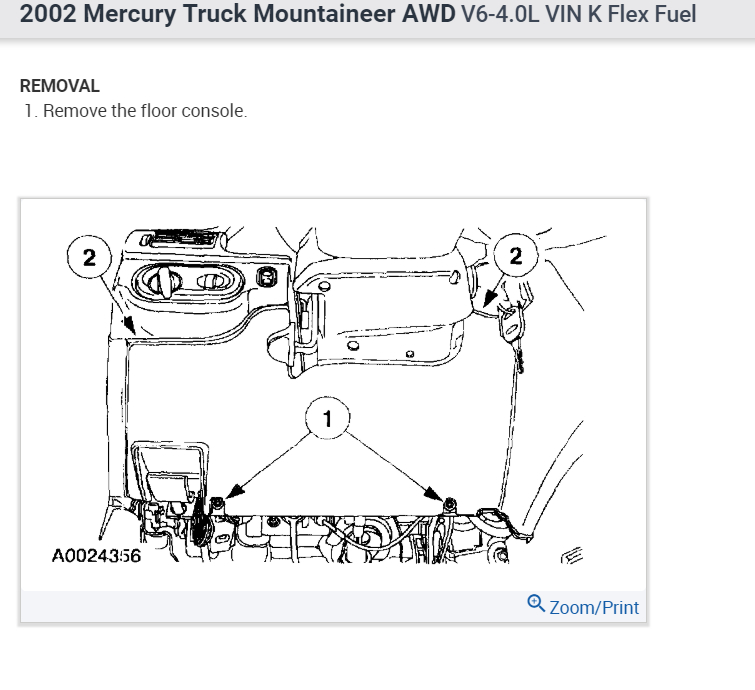

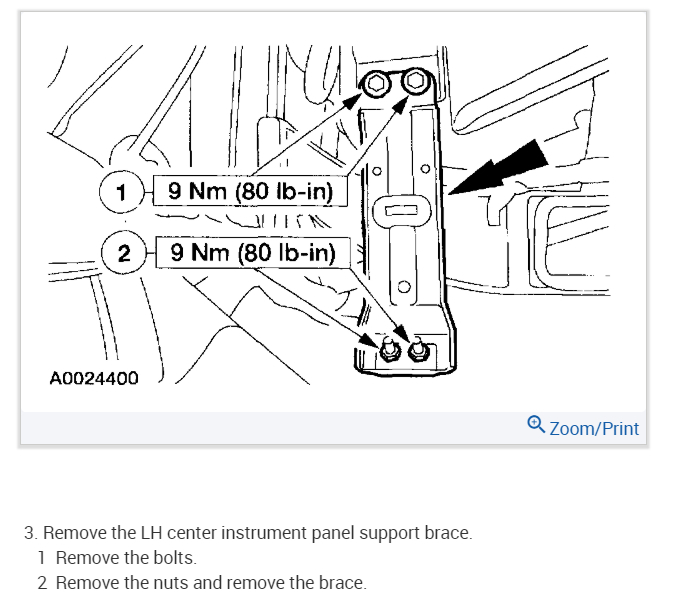

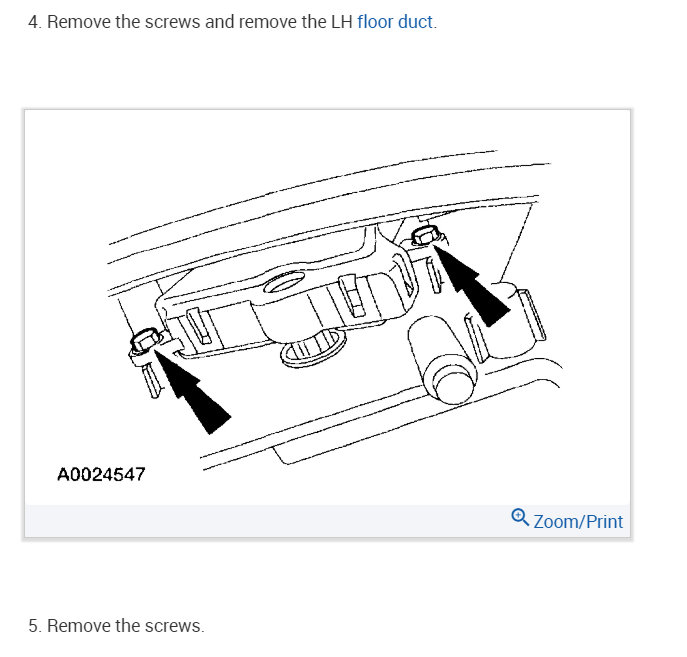

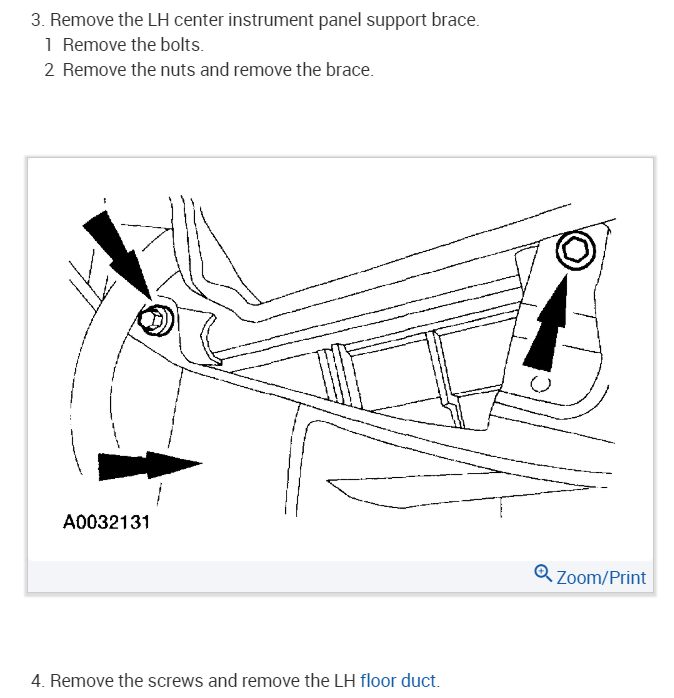

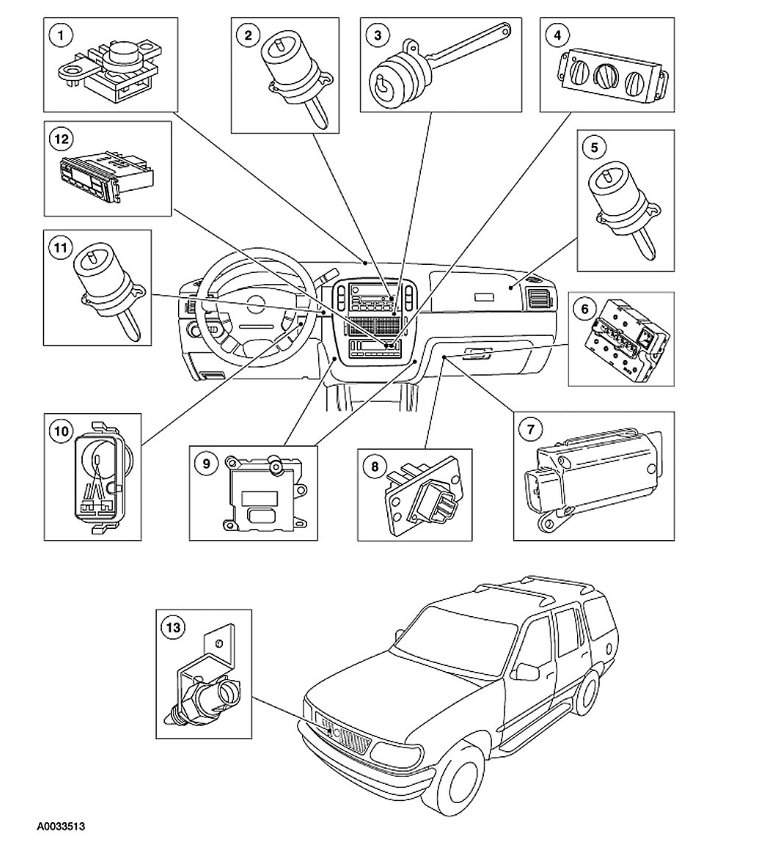

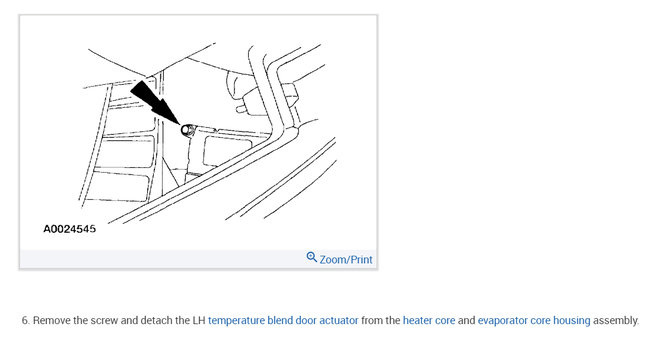

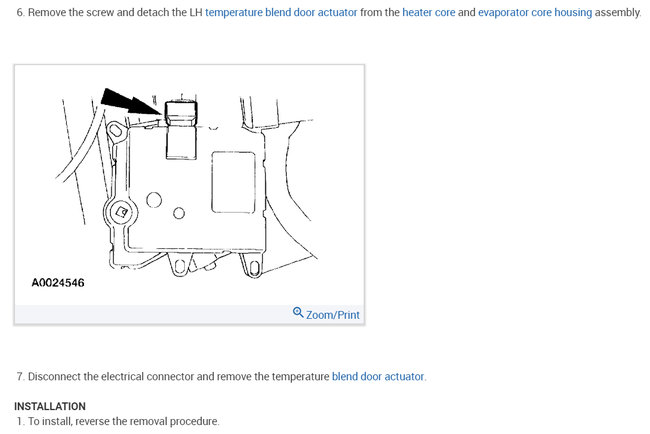

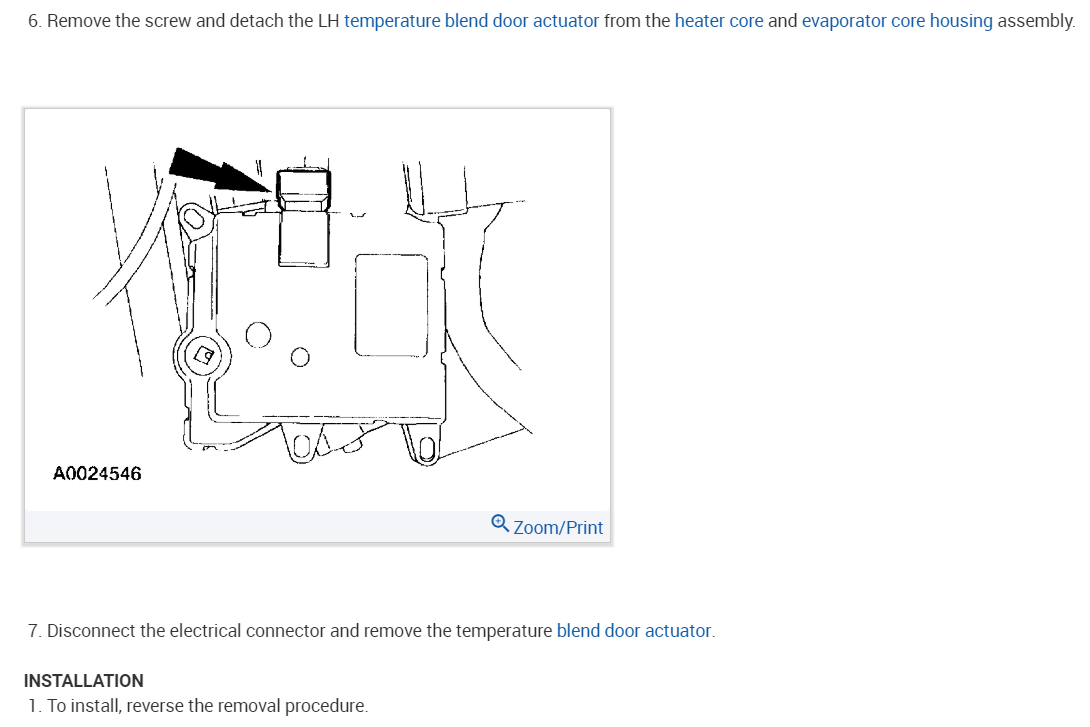

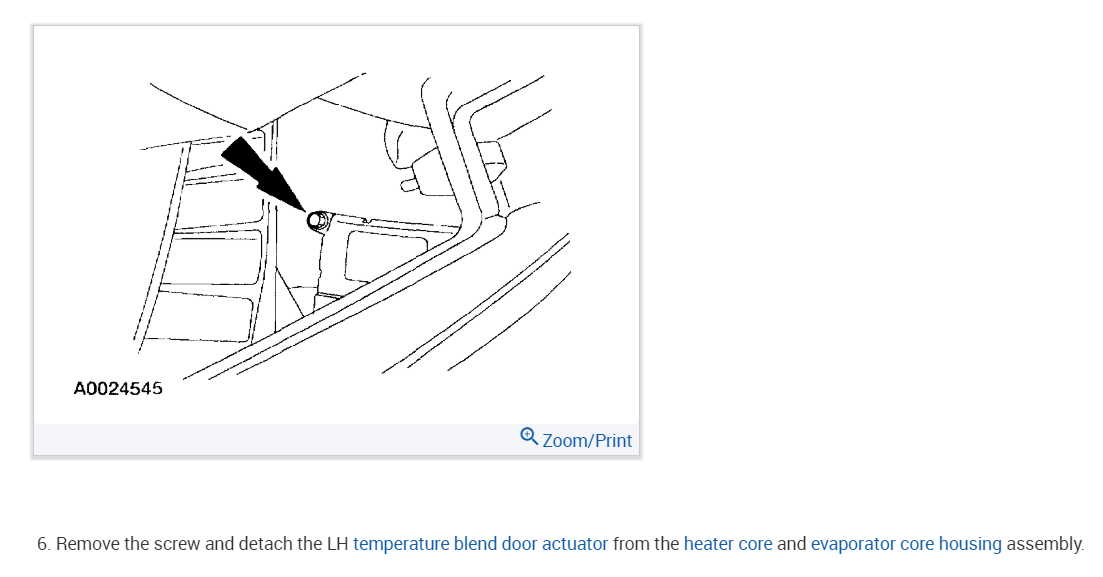

Check out the diagrams (below). Please let us know what happens.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 30, 2015 at 2:09 AM
Avatar
GBBERN12
  • MEMBER
  • 0 POST
Thanks for the guide. I got the part for $65.00 and installed it all fixed! I love this site.
Sep 10, 2018 at 2:29 PM
Advertisement
Avatar
E003DUARTE
  • MEMBER
  • 2 POSTS
Back air blender to my vehicle listed above clicking noise?
Sep 11, 2018 at 11:22 AM (Merged)
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
You need to check for loose or damaged linkage. Also, make sure the door is not sticking on something.
Sep 11, 2018 at 11:22 AM (Merged)
Avatar
DABMECH
  • MEMBER
  • 1 POST
No heat. Cutting a hole to access part.
Sep 11, 2018 at 11:22 AM (Merged)
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
What exactly are you doing and what are you cutting?
