VSC and ABS dash lights on

2002 LEXUS LS 430
105,000 MILES
Avatar
BILL CUMMINS
  • MEMBER
  • 1 POST
Intermittently the VSC, ABS and engine warnings all appear together. The code reads left front wheel speed sensor. We’ve replaced the sensor and the related wiring. Still get the same code. Also replaced the ABS module and the yaw module. No luck. Any suggestions?
May 25, 2020 at 5:29 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good morning,

What was the code number?

https://www.2carpros.com/articles/abs-warning-light-on-easy-repair-guide

Do you have a scan tool that can read live data from the ABS system?

Did you have the replacement module programmed to the car? That is required for it to work.

https://www.2carpros.com/articles/how-to-replace-a-abs-controller

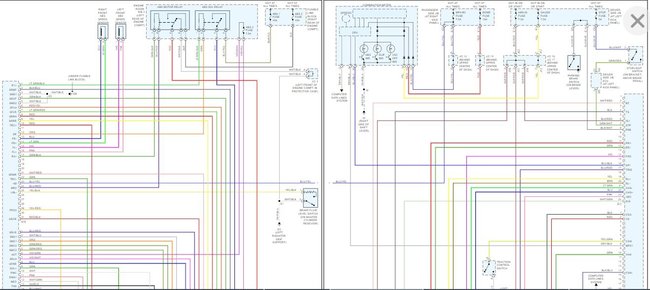

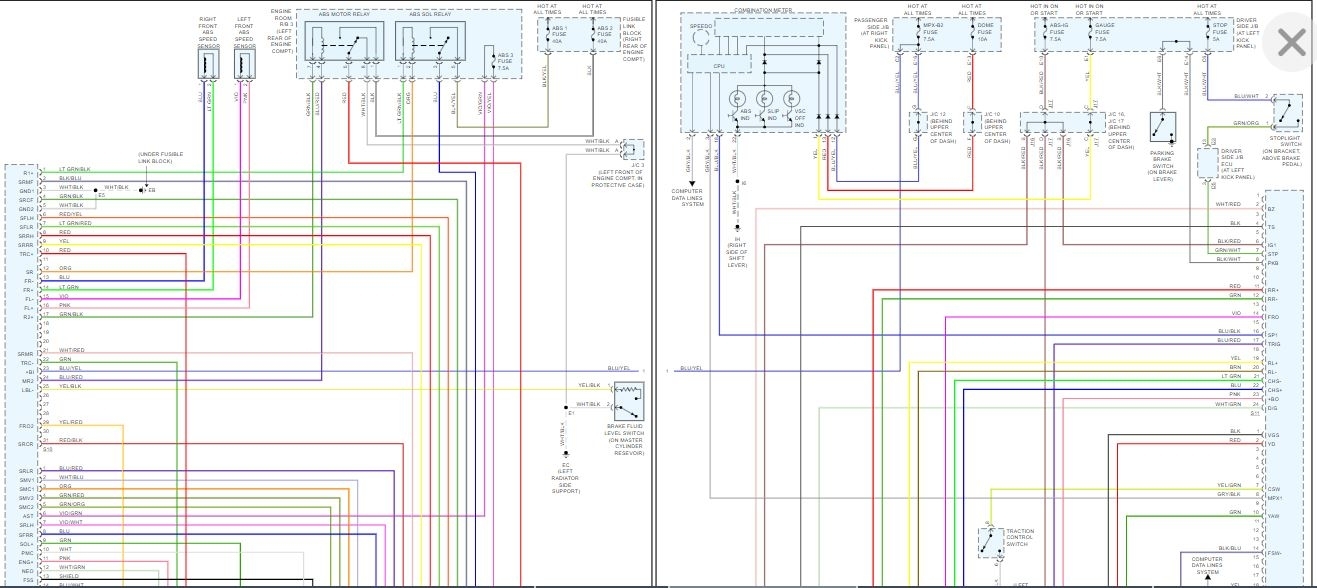

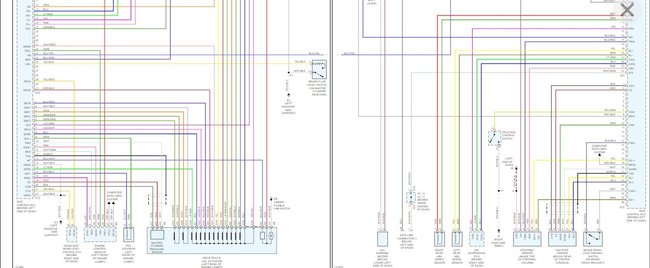

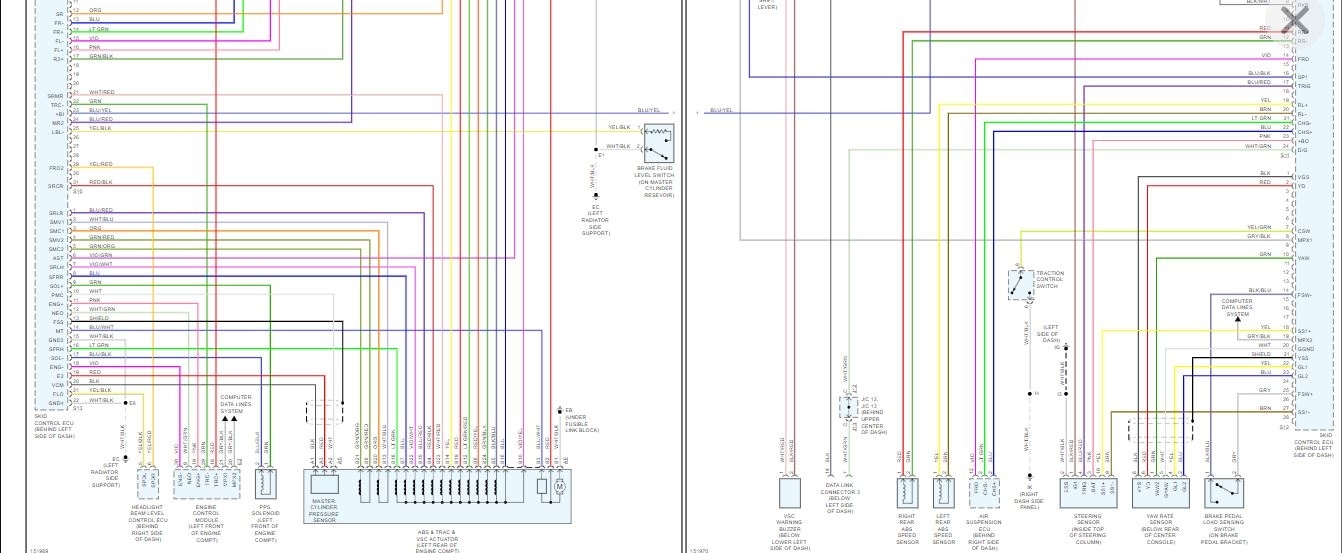

I attached a wiring diagram for you to view.

Roy
Images (Click to enlarge)
Attached Media
Attached Media
May 25, 2020 at 6:18 AM
