Window problem

2002 KIA SPECTRA
109,000 MILES • 4 CYL • 2WD • MANUAL
Avatar
GKUBERSKI
  • MEMBER
  • 1 POST
at the same time both rear windows stopped going down, but were able to go up. A couple days later the exact same thing happened to both of the front windows. What do you think it could be and how can I test what is wrong with it? I am assuming it is the master switch.
Dec 10, 2010 at 12:44 AM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
There are a number of things that can cause this but the fact that they went out at the same time makes me think we have a control issue.

So, on this vehicle the master power window switch controls all the windows so we need to start with this.

Here is a video and guide that will show you how to test a window switch:

https://youtu.be/HBFBcJrdym4

https://www.2carpros.com/articles/electric-window-repair

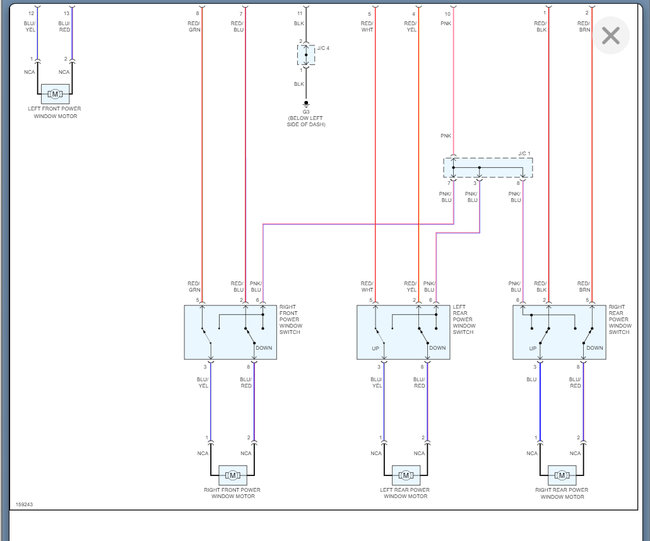

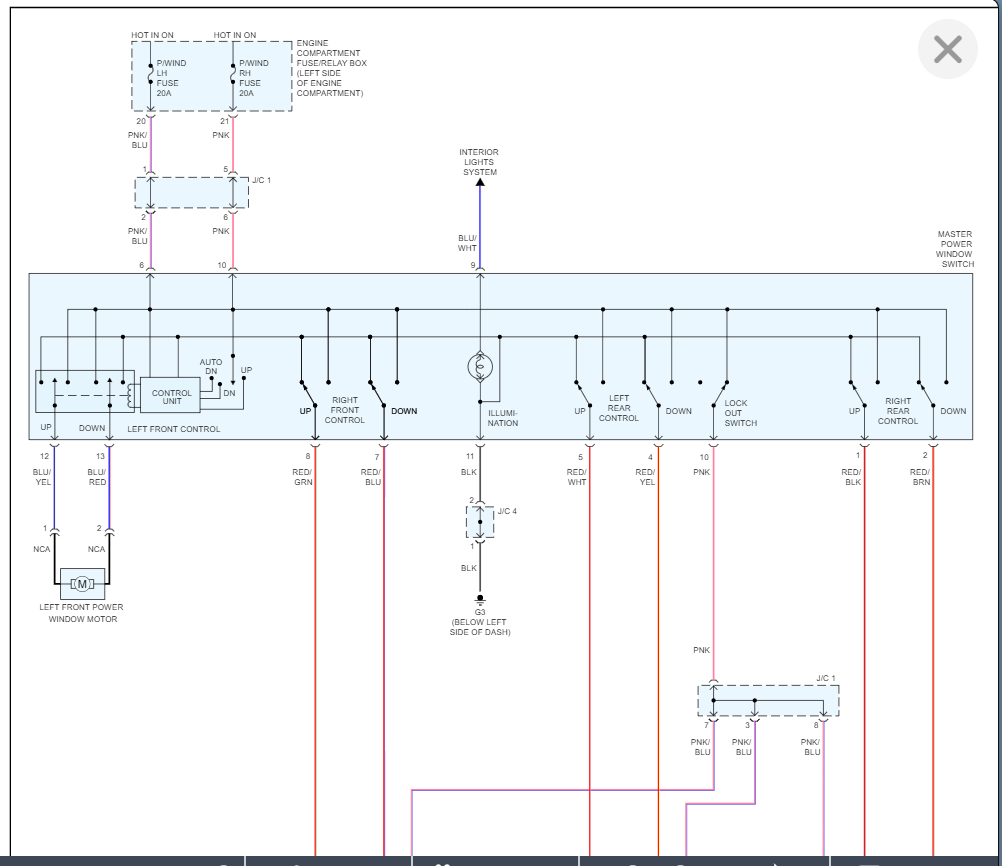

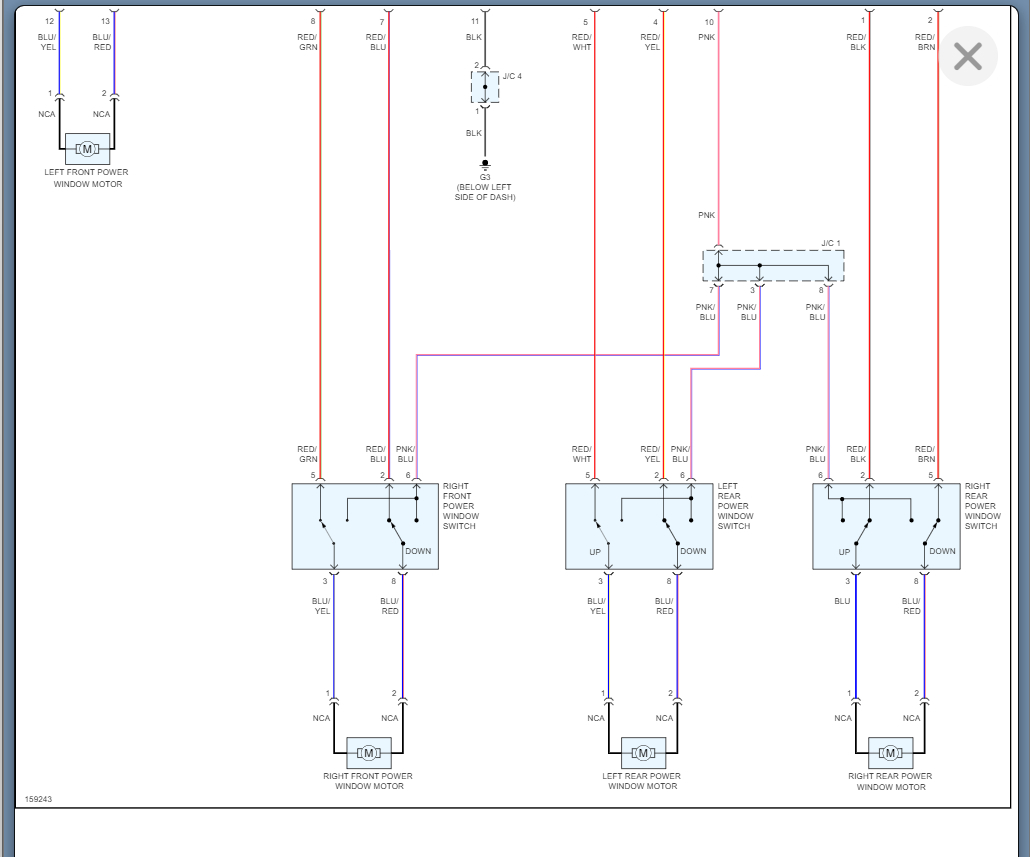

I am attaching the wiring diagram below on how to do this so let's start with this info and go from there.

Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Apr 19, 2022 at 8:01 PM
