I have front wheel bearing play

2002 KIA RIO
110,000 MILES
Avatar
SAK885
  • MEMBER
  • 2 POSTS
I have replaced the left front wheel bearings and still have a lot of play in the front wheel.There is a spacer ring between the two inner bearing cones. I'm not sure if I put it in the right place. The wheel nut will not tighten the bearings.I can't find a drawing to show the correct placement.The layout of the bearings is inner cone, outer race, outer race, inner cone.Is the ring not letting the two cone ride snugly to the races?
Jan 9, 2012 at 2:12 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Be sure the play is not from the suspension

Roy

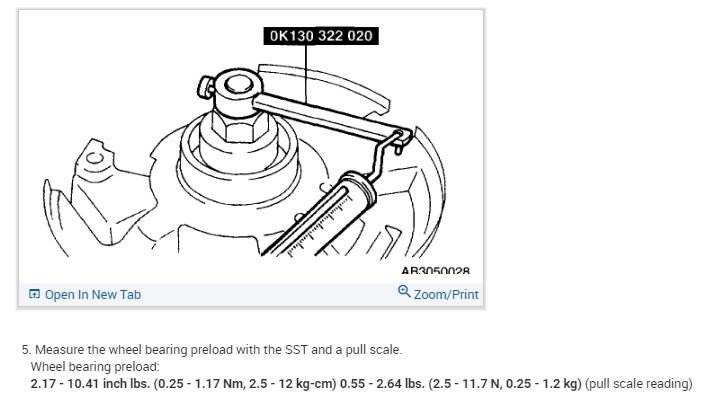

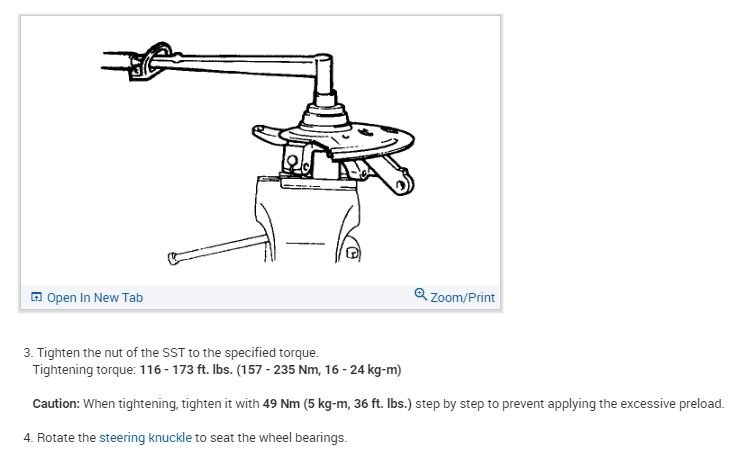

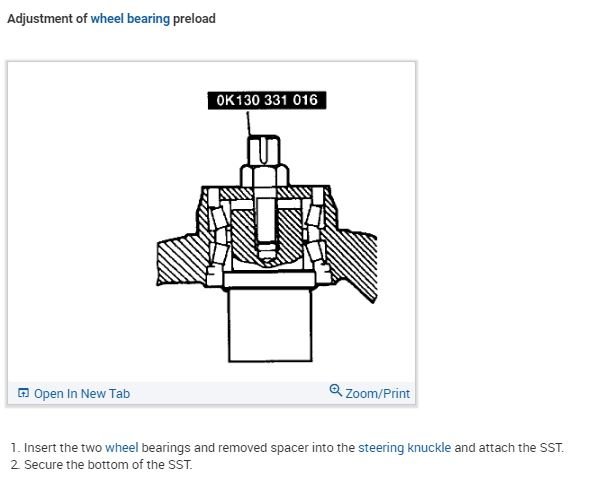

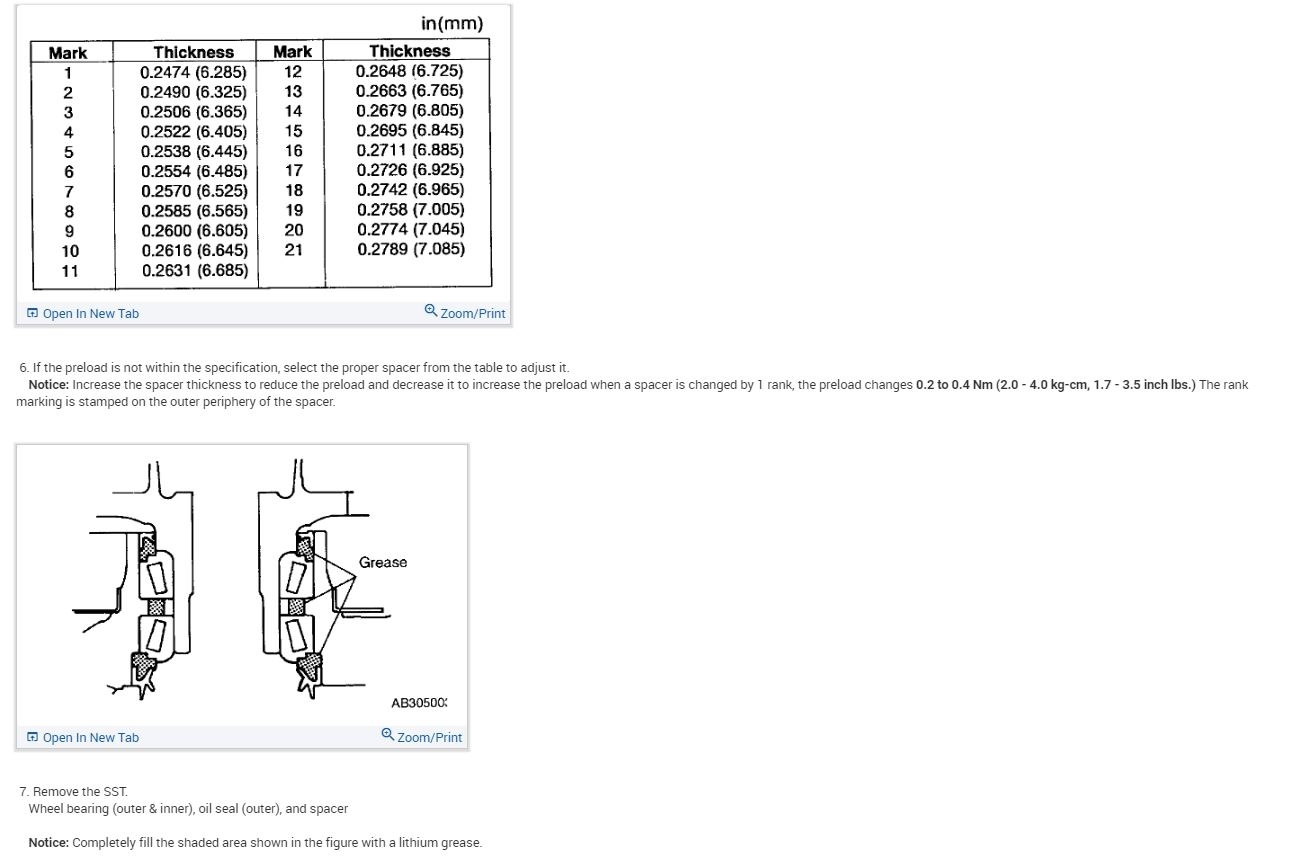

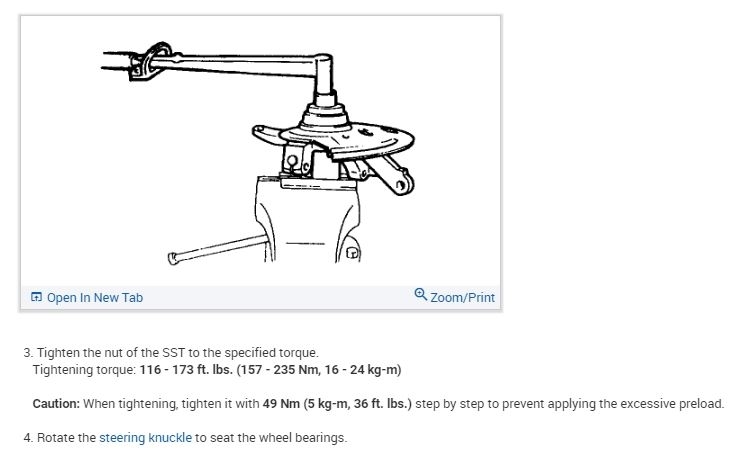

See the diagrams below for adjusting/setting the pre-load on the front wheel bearings

Let us know if you need anything else
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Jan 10, 2012 at 5:54 PM
Avatar
SAK885
  • MEMBER
  • 2 POSTS
On the 2002 Kia Rio there are two bearings. They are two cone & race bearings.they are not the one piece roller bearings seen on most front wheel drive cars.
Jan 11, 2012 at 2:33 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
If correct bearings are fitted and adjusted correctly any movement may be ball joints, check this.
Jan 11, 2012 at 9:36 PM
