the blower relay?

2002 JEEP WRANGLER
Avatar
INFORMATION123
  • MEMBER
  • 1 POST
the switch of a/c wont power the blower but its get power when i switch it on the blower relay under the dashboard passenger side its the blue one on the relay its works good .the problem is i can get power to the switch to relay to get the blower on.
Jan 16, 2012 at 3:36 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
try replacing the relay it may be bad its near the blower motor. Here is a guide to help test it and the relay location is the diagrams below.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

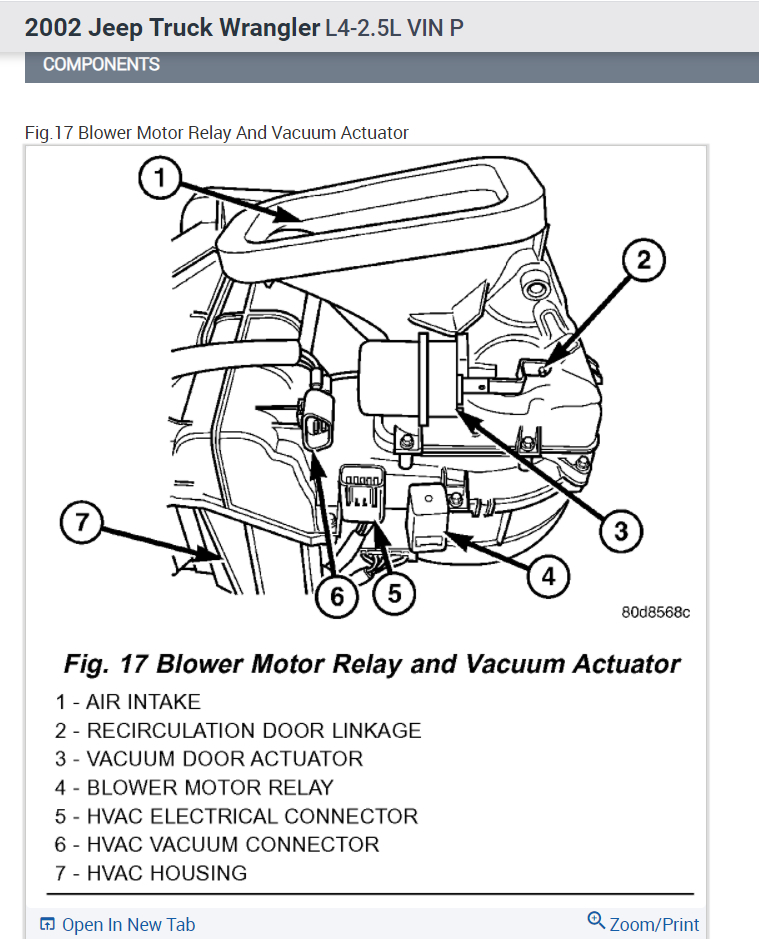

Check out the diagrams (Below). Please let us know what happens.
Image (Click to enlarge)
Attached Media
Jan 16, 2012 at 4:14 PM
Avatar
COOL22
  • MEMBER
  • 1 POST
Air Conditioning problem
1999 Jeep Wrangler 6 cyl Four Wheel Drive Manual

Where is blower motor relay located?
Dec 28, 2020 at 1:28 PM (Merged)
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS


https://www.2carpros.com/forum/automotive_pictures/12900_bm_1.gif

The blower motor relay is located in a wire harness connector that is secured to the heater- A/C housing behind the glove box on the passenger side of the vehicle, next to the heater-A/C wire harness connector in the passenger compartment.
Dec 28, 2020 at 1:28 PM (Merged)
Avatar
BMICHELE
  • MEMBER
  • 15 POSTS
In a 1997 jeep wrangler Where is the relay switch for the heater blower motor?
Dec 28, 2020 at 1:28 PM (Merged)
Avatar
2CARPRO JACK
  • CERTIFIED EXPERT
  • 11,533 POSTS
The relay and the resistor for the fan are behind the right side of the dash on the HVAC module
Dec 28, 2020 at 1:28 PM (Merged)
Avatar
BMICHELE
  • MEMBER
  • 15 POSTS
I didnt know there was a relay and a resistor. now I am a bit confused - u wouldnt have a pic of either of them would u
Dec 28, 2020 at 1:28 PM (Merged)
