radiator fans are not working ?

Hello,

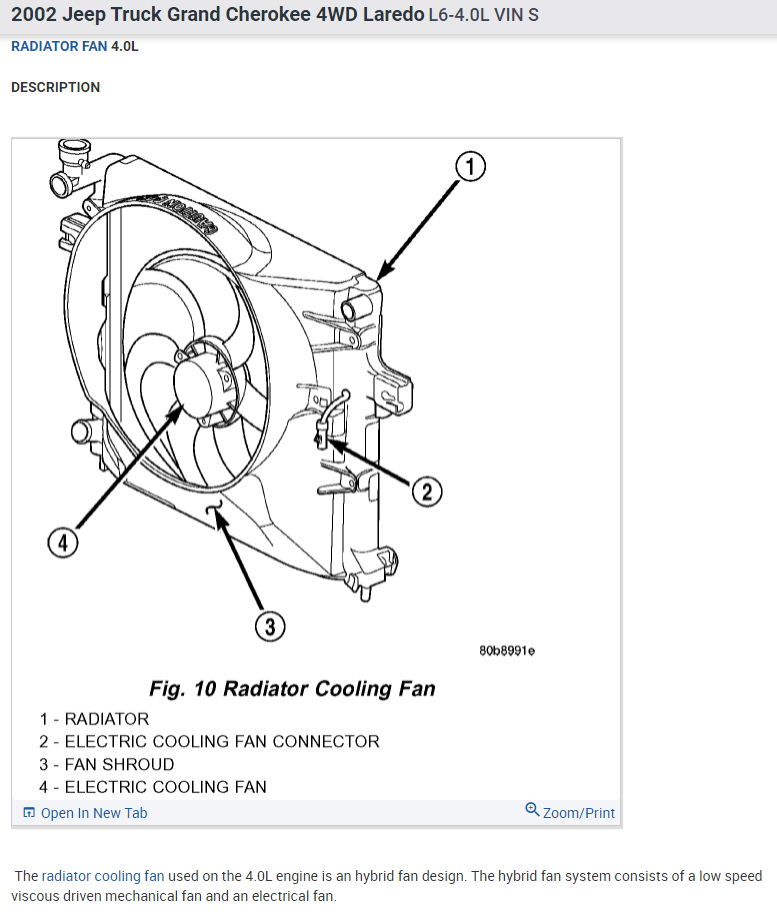

The radiator cooling fan used on the 4.0L engine is an hybrid fan design.
The hybrid fan system consists of a low speed viscous driven mechanical fan and an electrical fan.

The fan can become inoperative due to a bad relay, module or the fan itself can the faulty.

You should check the relay first. It can be tested:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Here are couple of helpful articles:

https://www.2carpros.com/articles/how-an-electric-cooling-fan-works
https://www.2carpros.com/articles/replace-electric-fan-motor

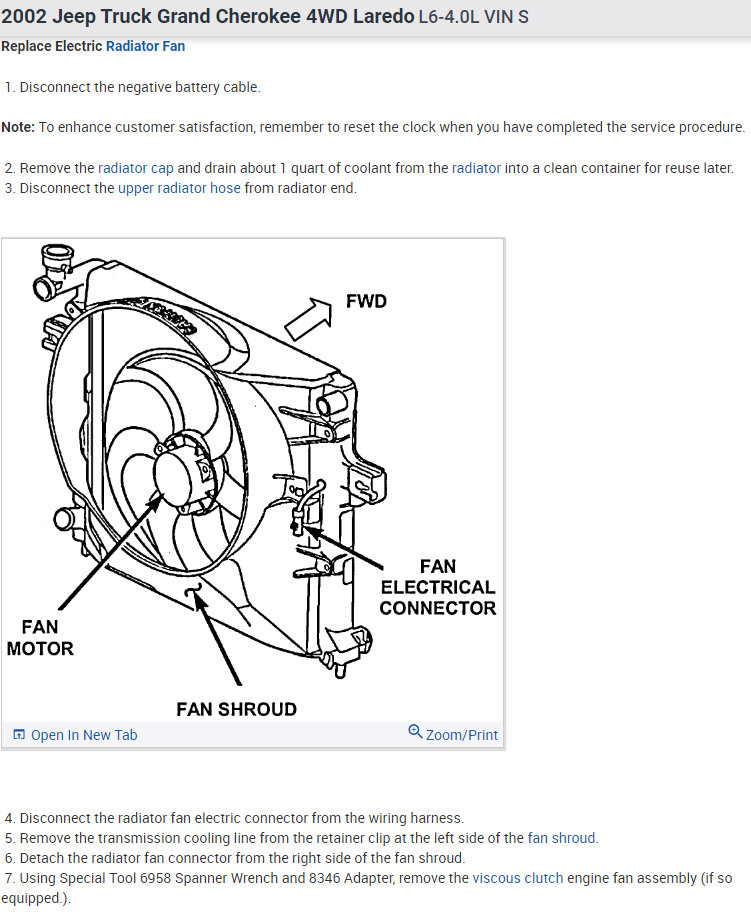

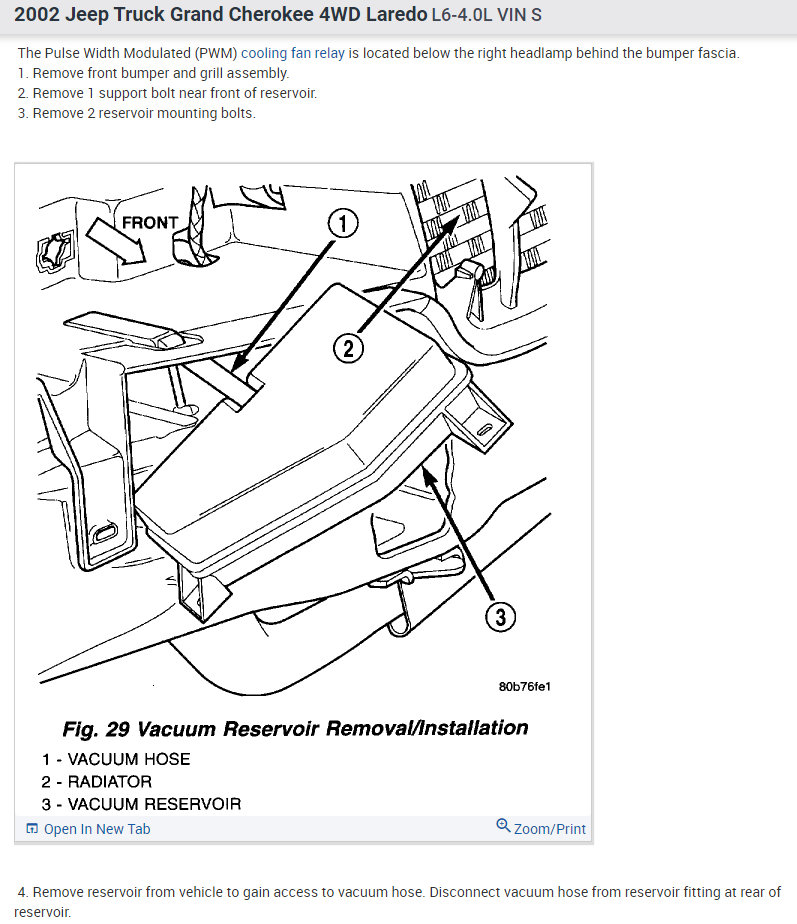

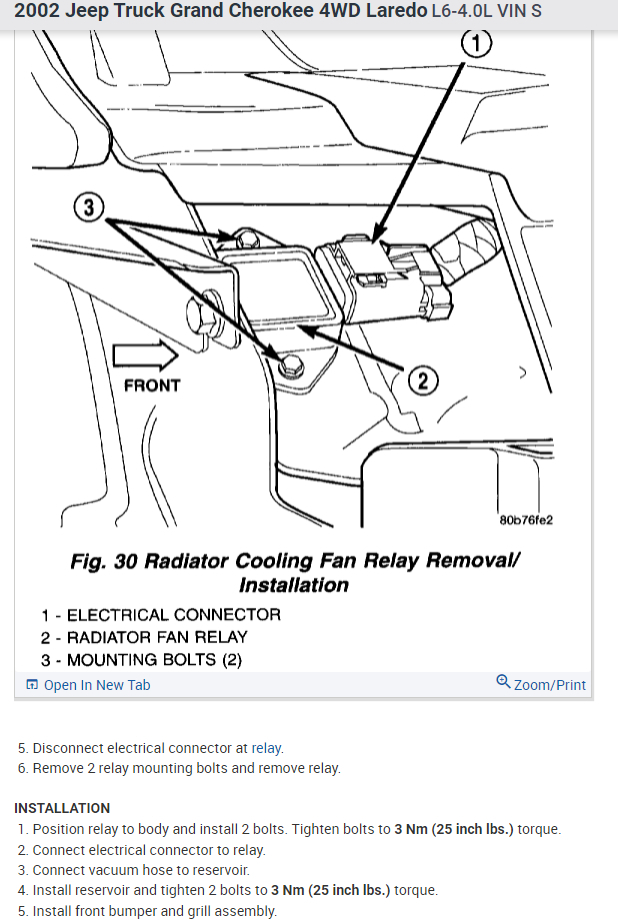

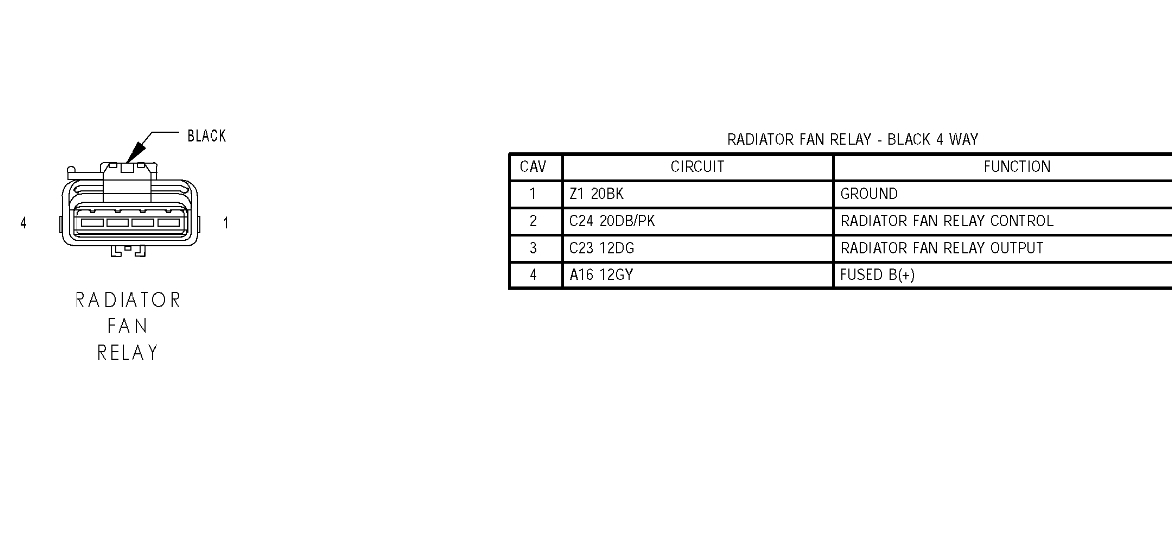

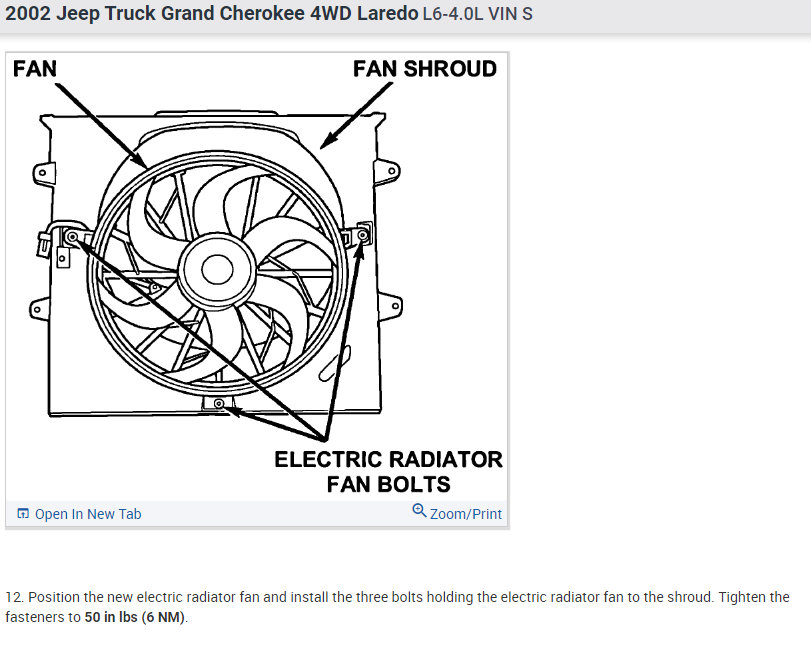

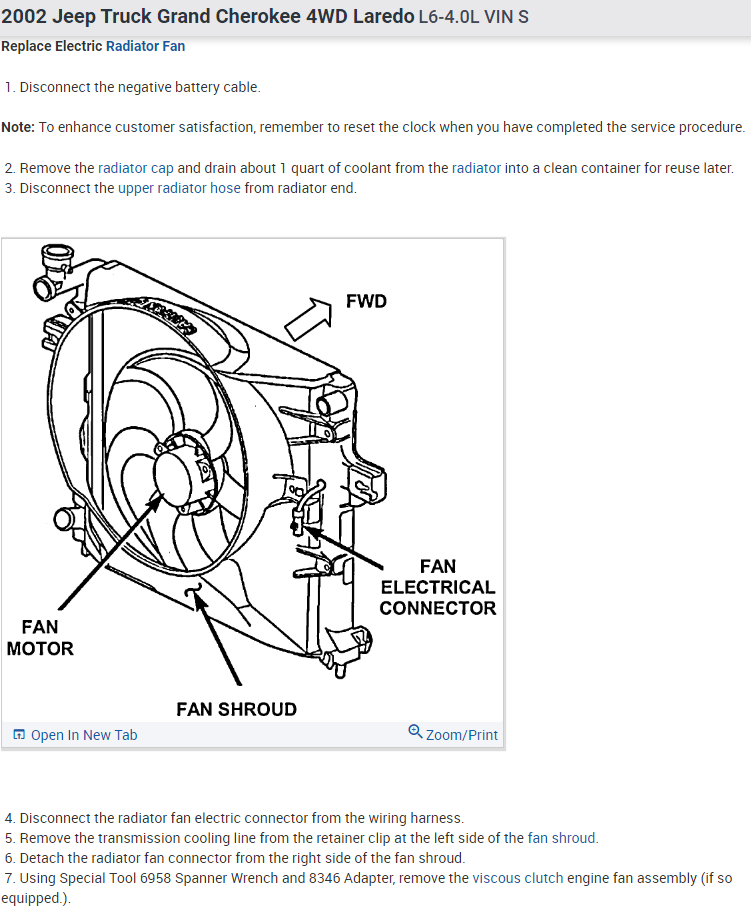

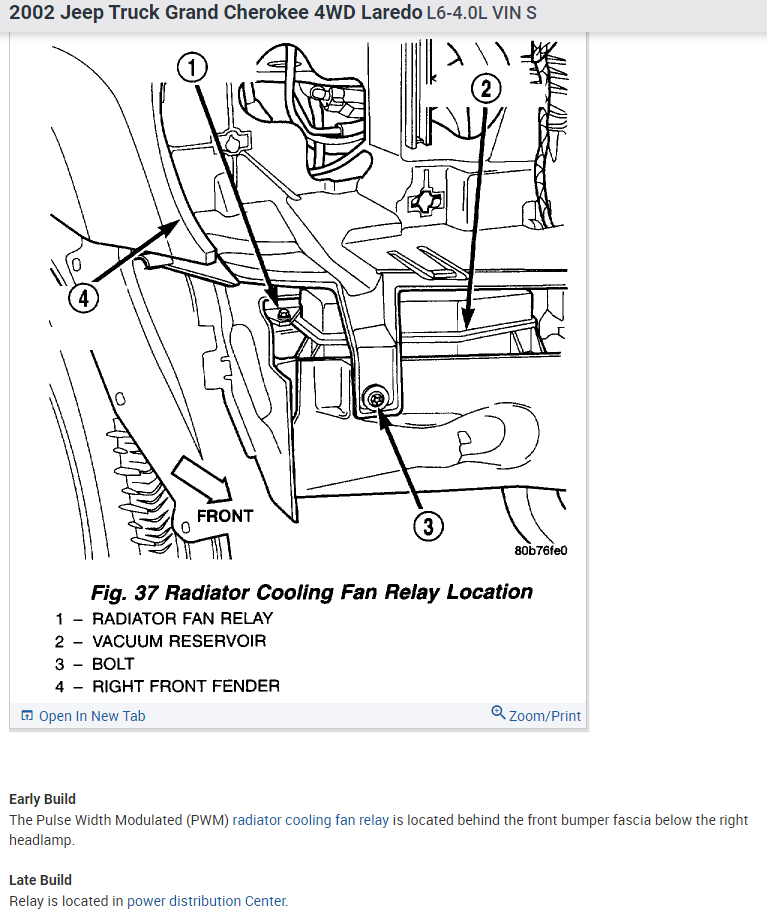

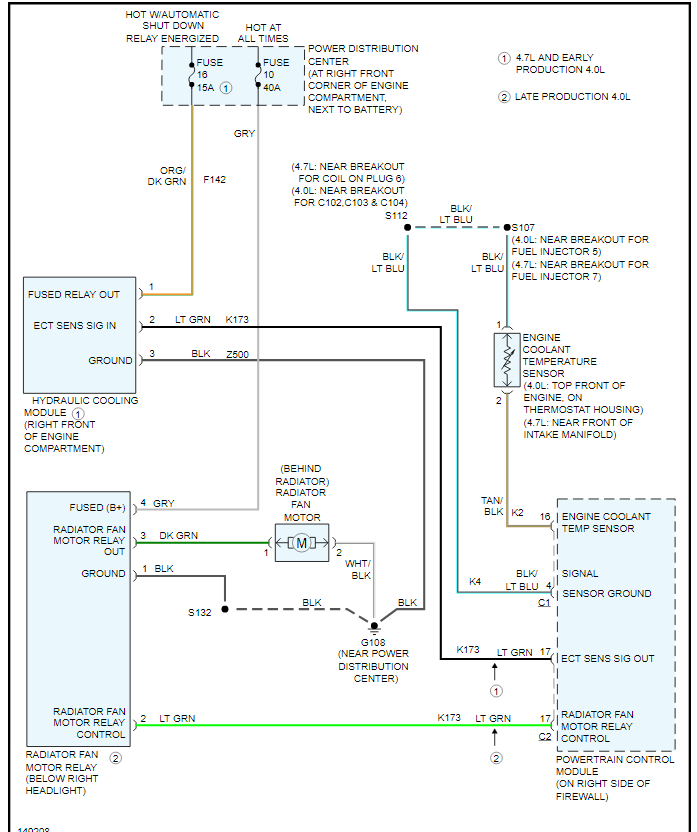

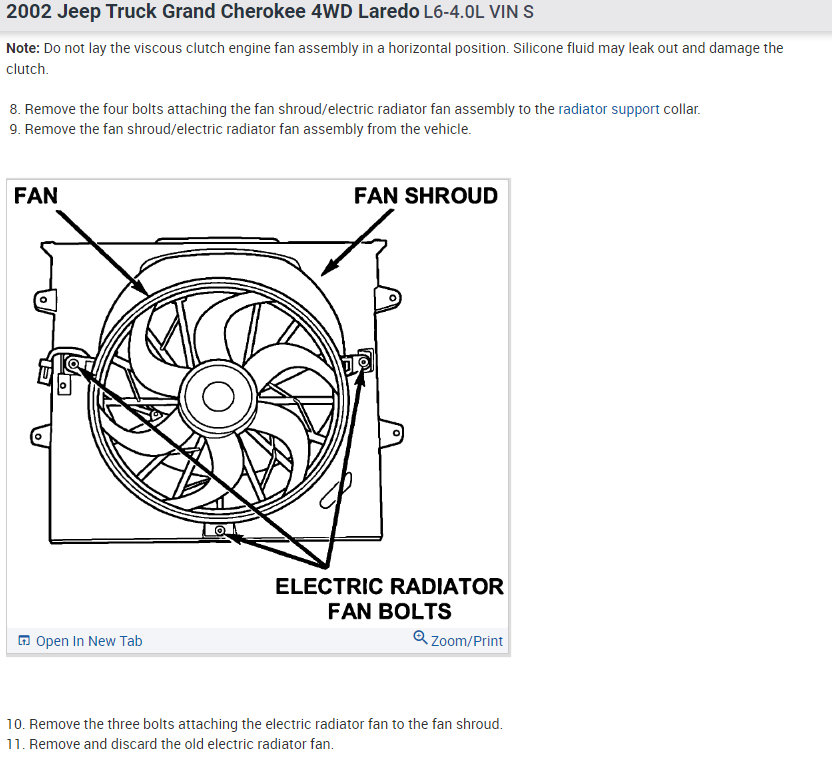

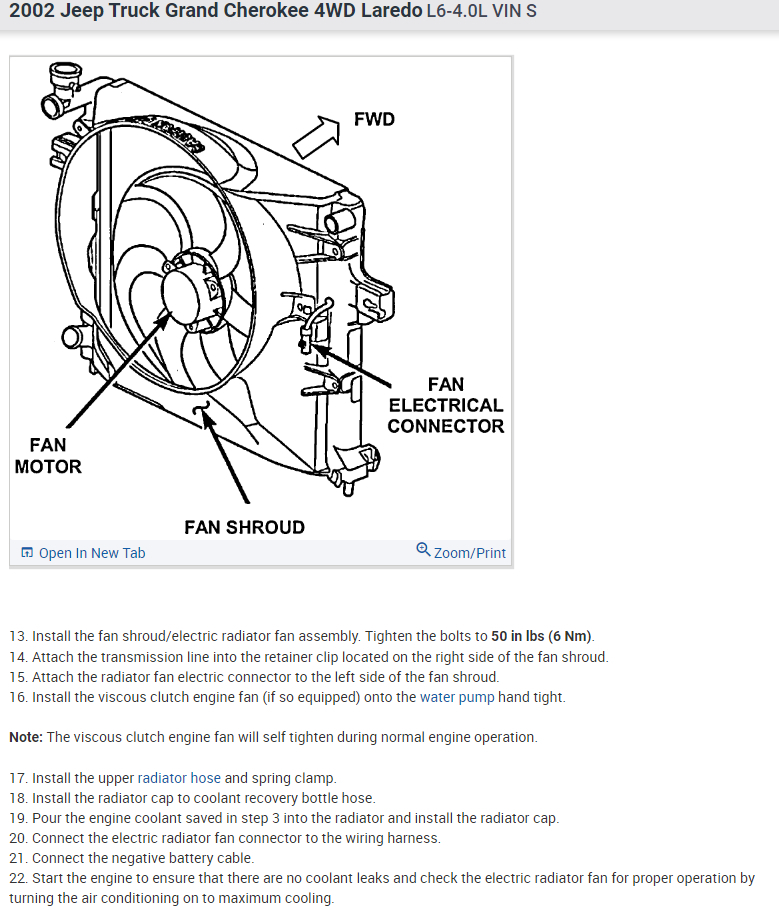

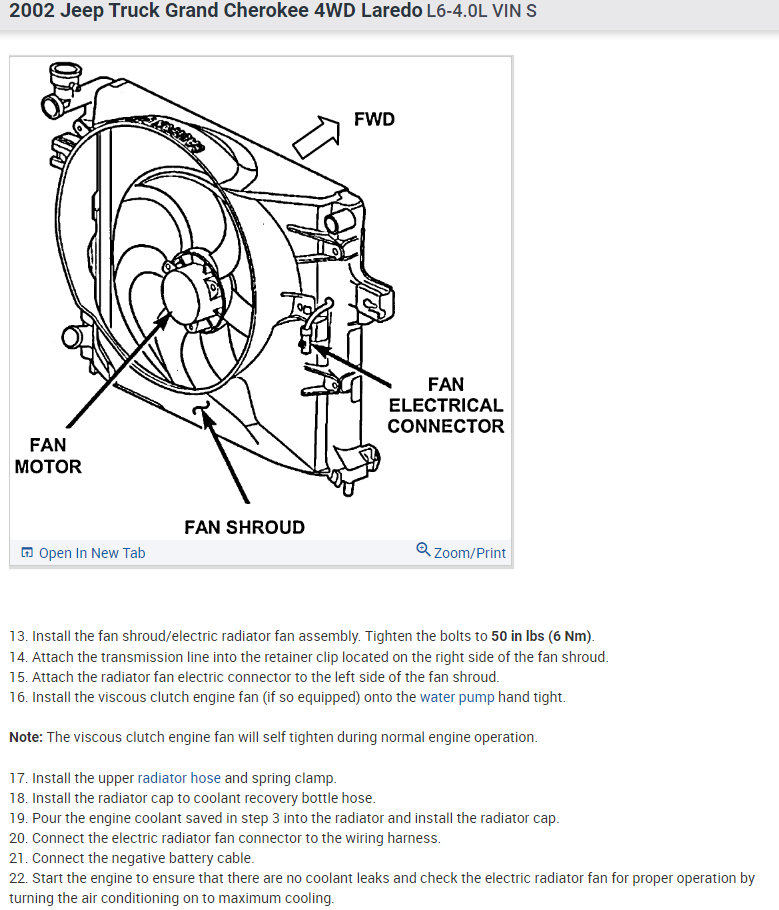

I have attached the diagrams for the fan as well as relay and the module.

Please let me know of any questions.
