o2 sensor plugs are different and I want to know if I can splice the old?

2002 ISUZU RODEO
6 CYL • 2WD • AUTOMATIC
Avatar
MARCUSBRICH
  • MEMBER
  • 5 POSTS
II have a 2002 Isuzu rodeo I had to replace the engine wiring harness and the o2 sensor plugs are different and I want to know if I can splice the old contours on to the new harness and if so where can I find a color wire diagram
Jan 18, 2011 at 10:25 PM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS

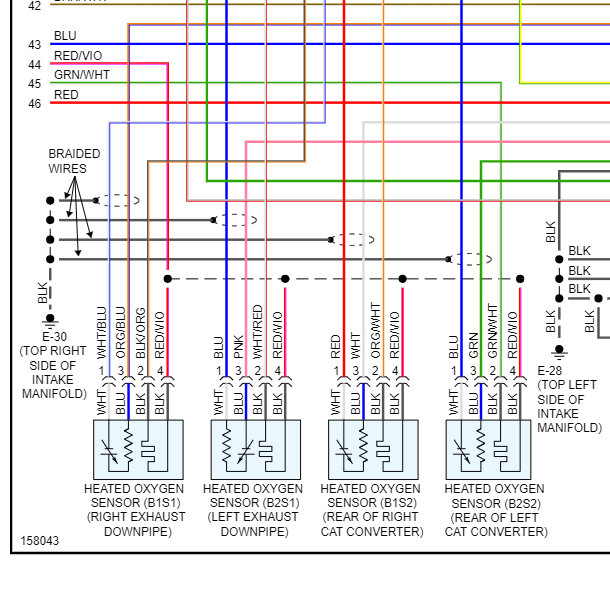

Yep you sure can here is the wiring diagrams so you get the connection correct. Check out the images (Below). Please let us know if you need anything else to get the problem fixed.


Image (Click to enlarge)
Attached Media
Jan 18, 2011 at 10:51 PM
Avatar
MARCUSBRICH
  • MEMBER
  • 5 POSTS
I need to know if there would be a problem if I splice the old on to the new?
Jan 18, 2011 at 10:54 PM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
Yes, match the wires to each side if the connector.
Jan 18, 2011 at 10:57 PM
