Wiring harness diagram needed

2002 HYUNDAI SONATA
157,000 MILES • 2.7L • V6 • 2WD • AUTOMATIC
Avatar
RACHEL FIELDS
  • MEMBER
  • 3 POSTS
The wiring harness protector to my coil pack wires has busted so the pins need to be replaced in the proper place. how do I do that? because I cannot find a new wiring harness thing and I have no idea how to do that the colors do not match on each end of the wires. so I don't know how to rewire it back correctly so my car will start.
May 13, 2021 at 5:27 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good evening,

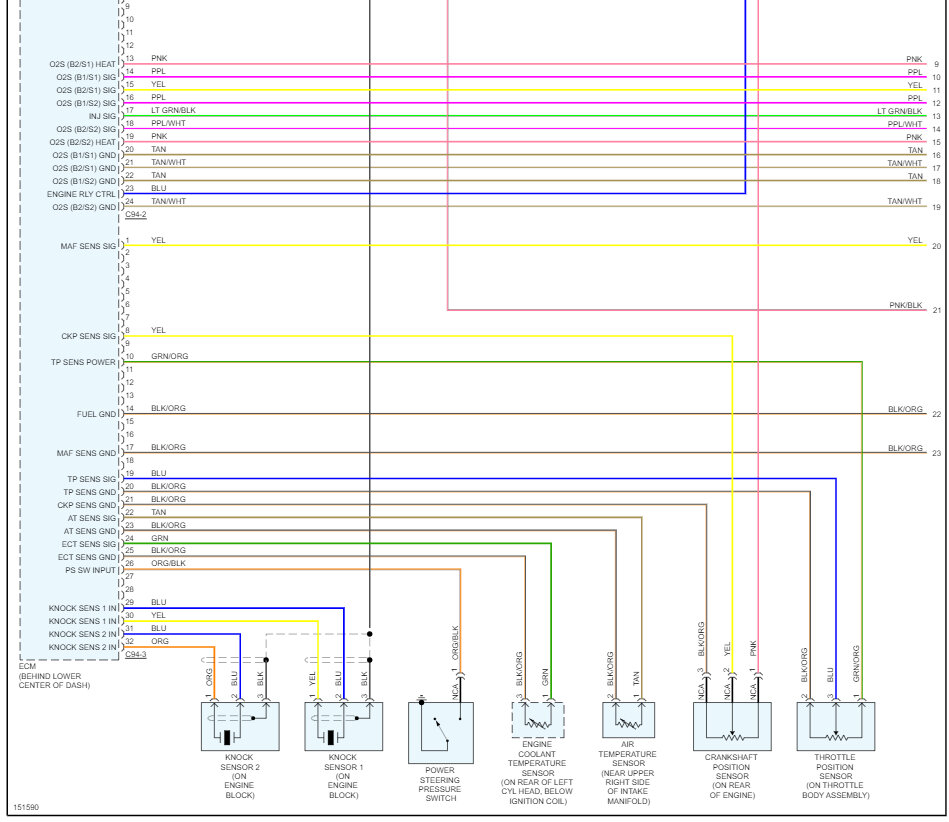

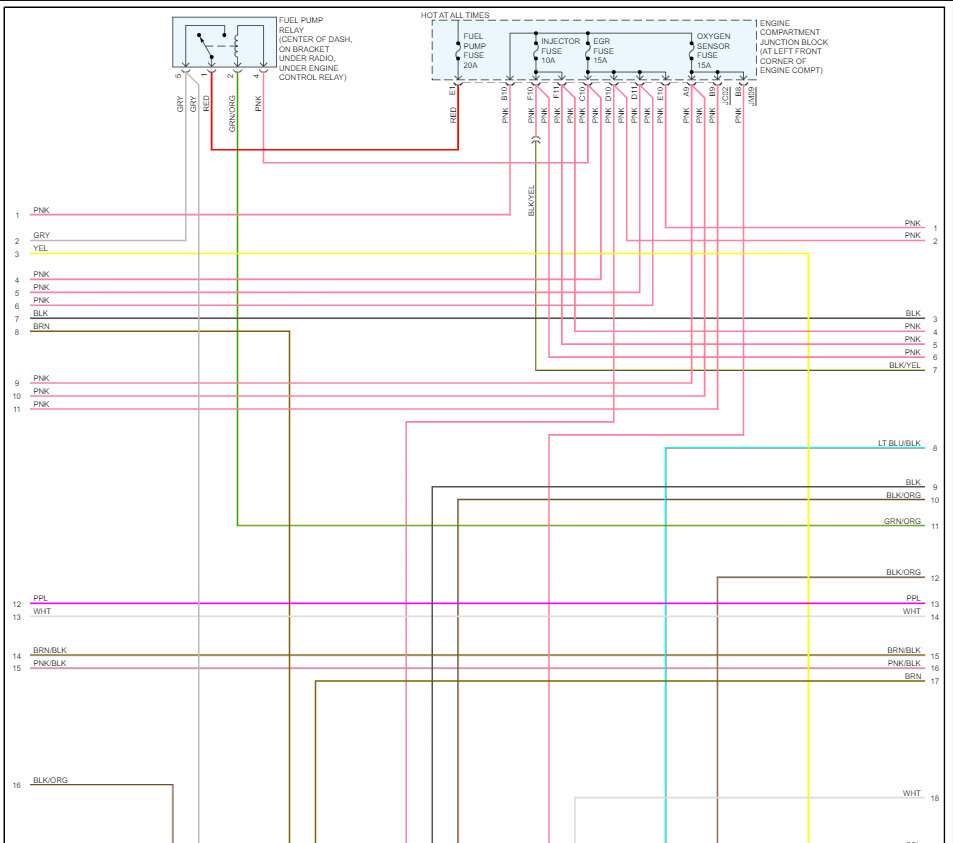

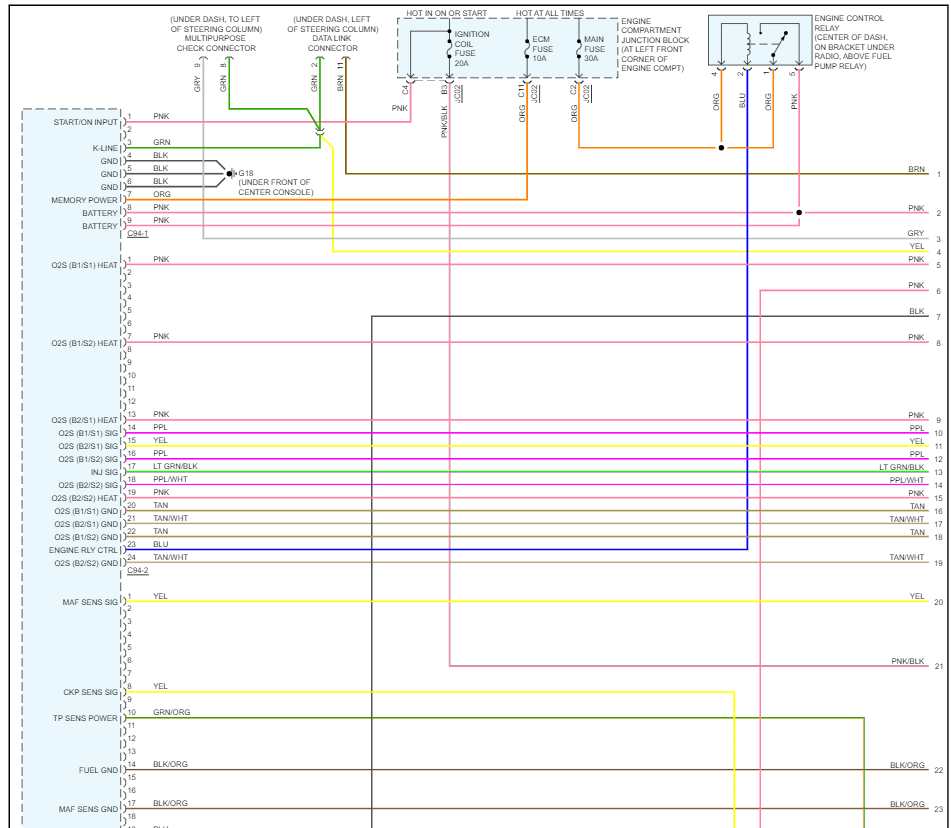

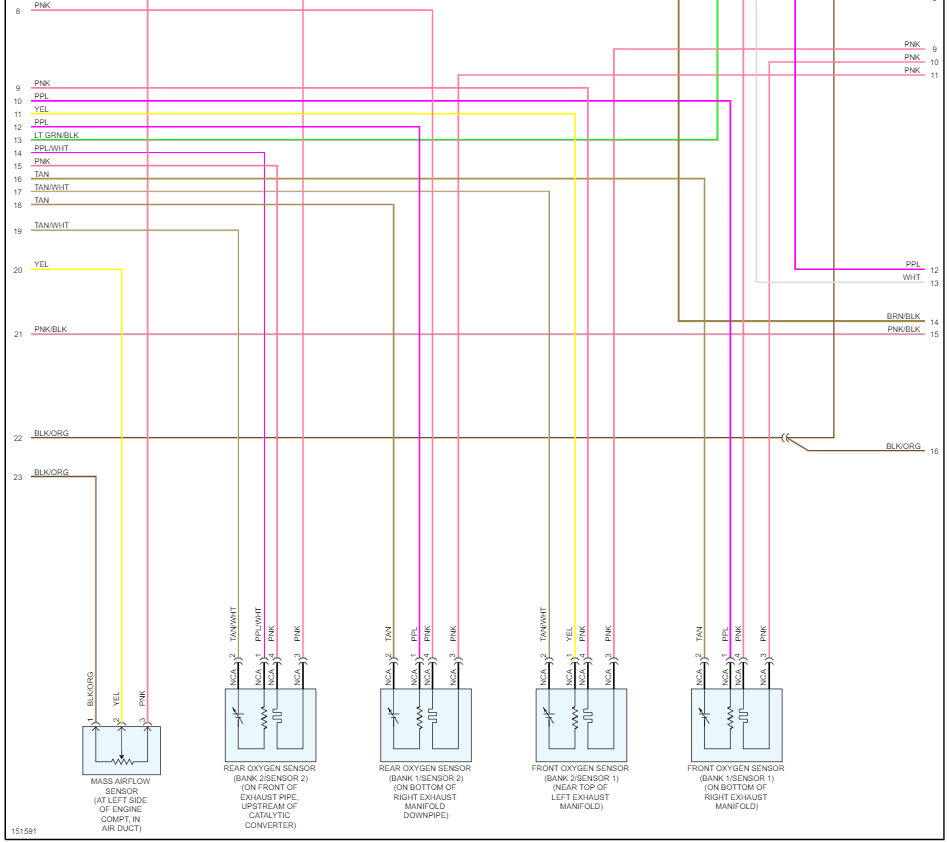

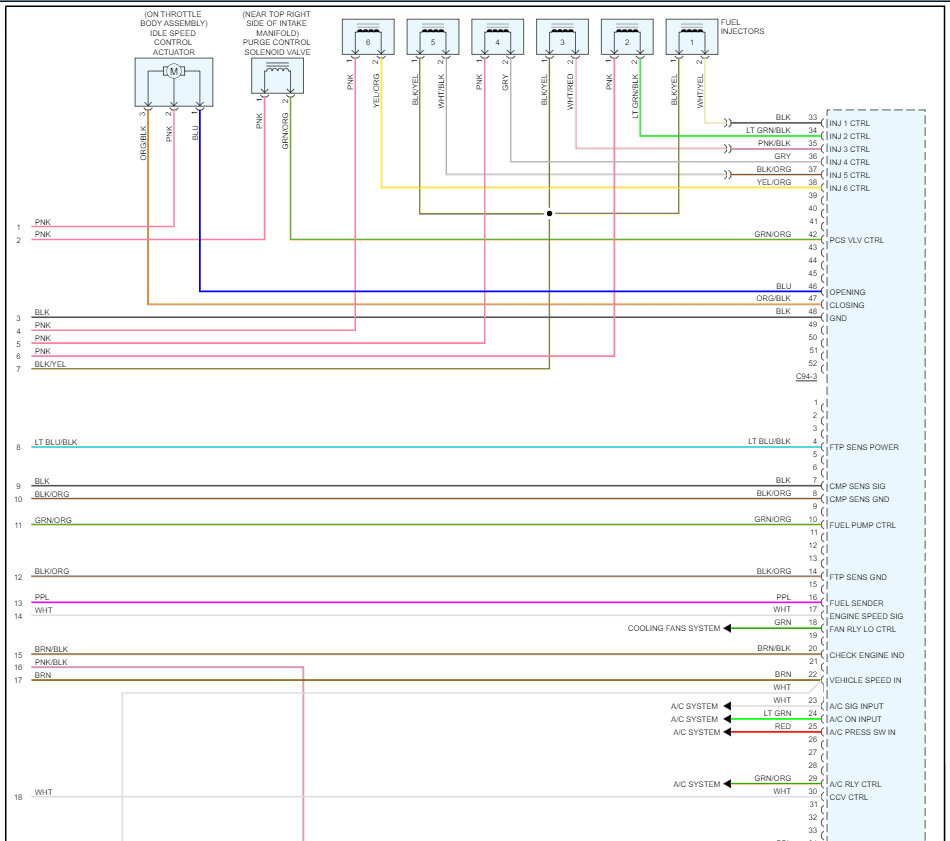

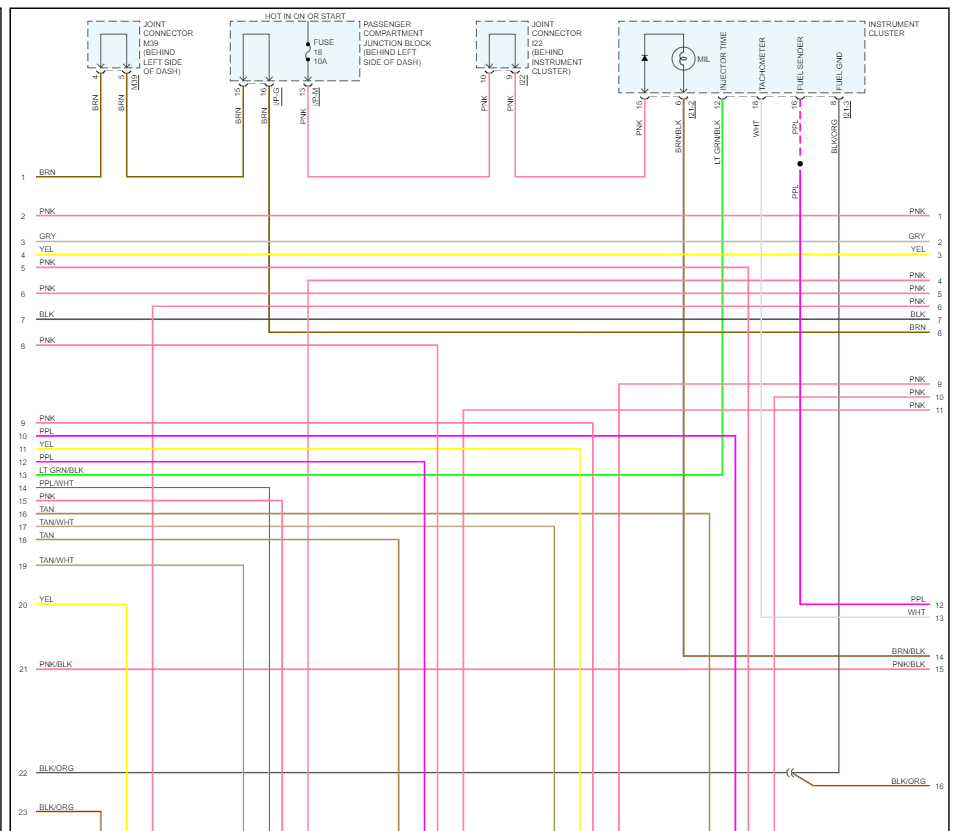

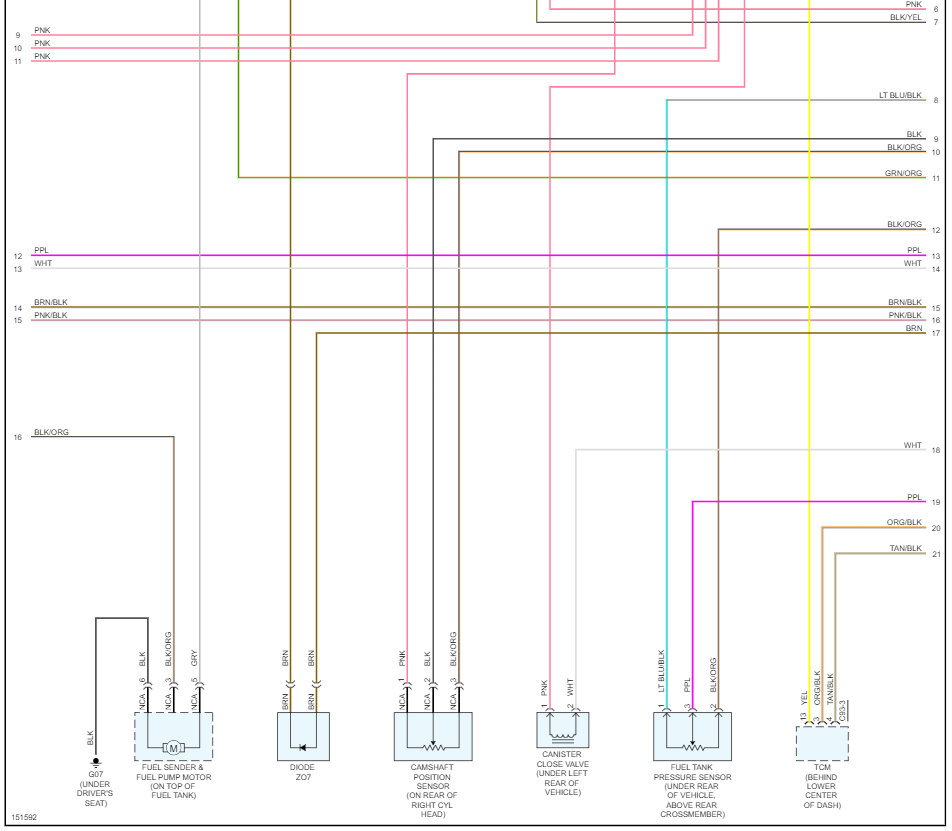

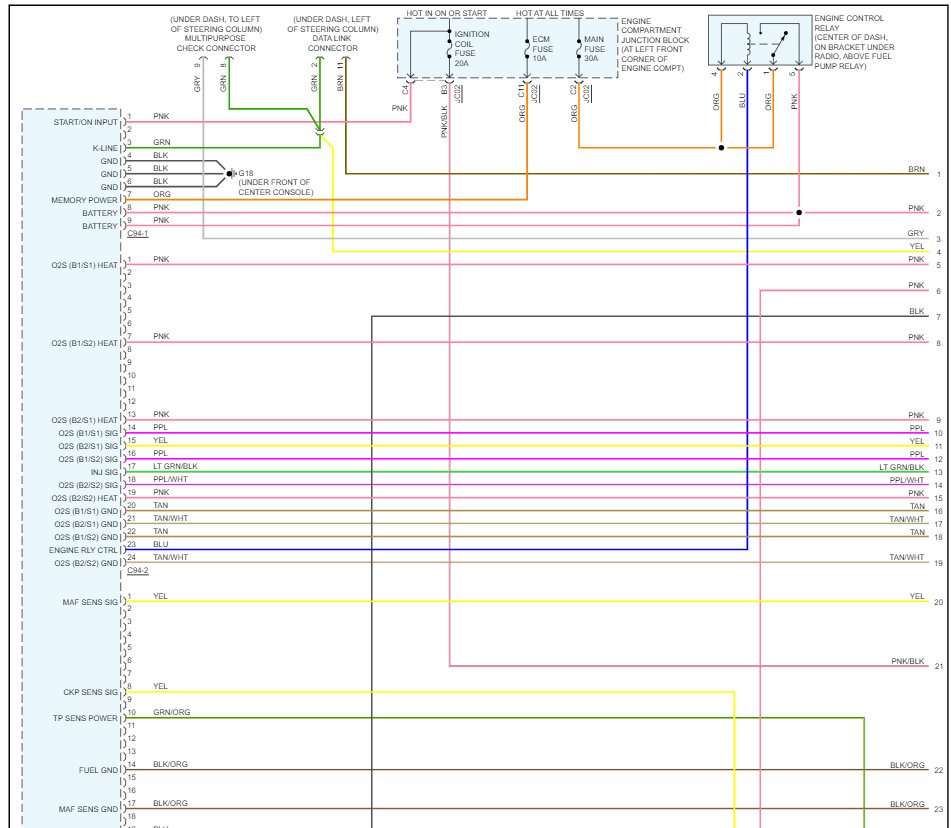

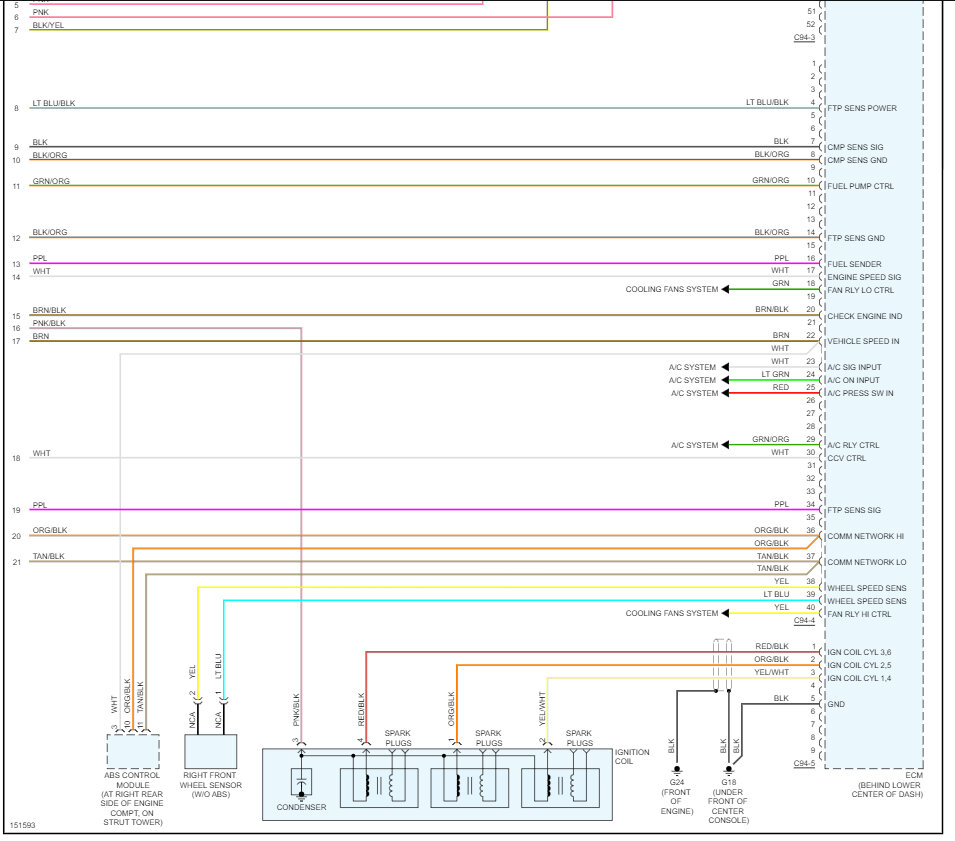

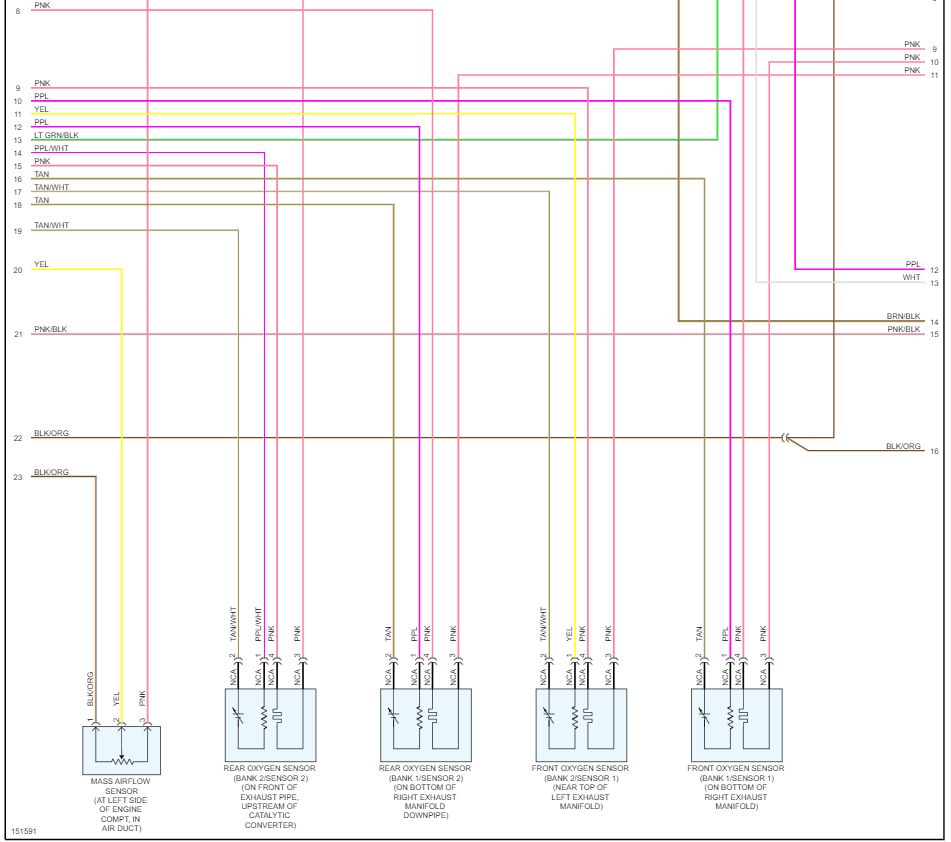

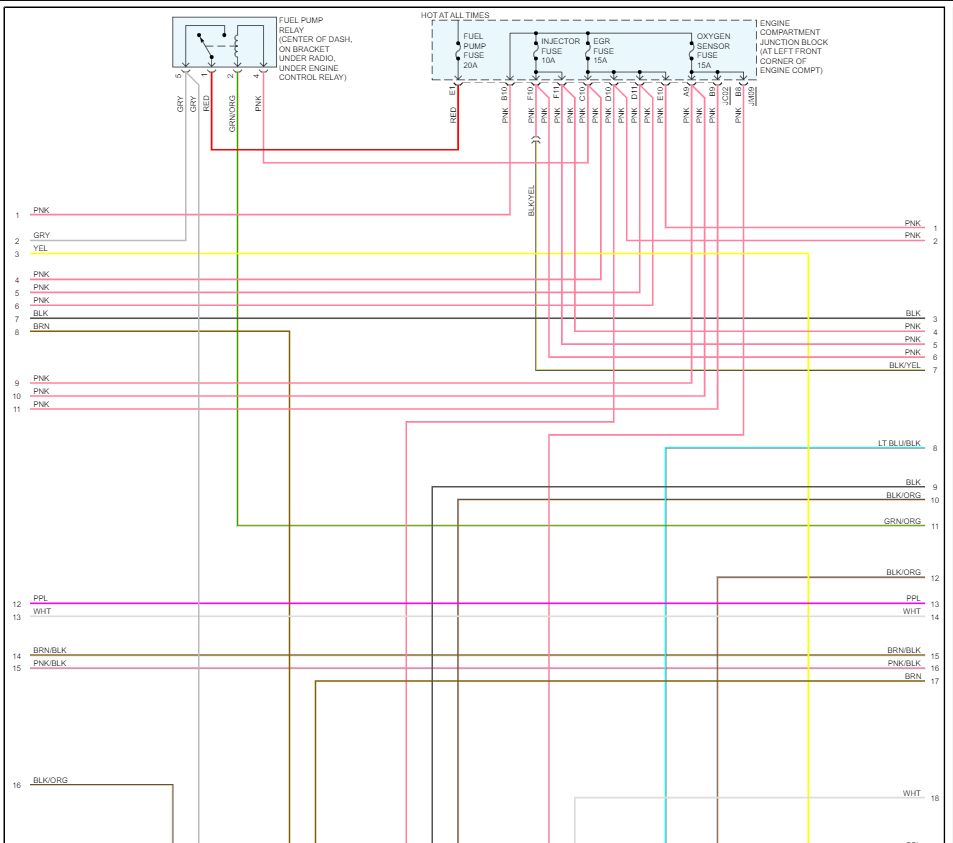

I attached a wiring diagram for you to view for the 2.7 liter engine. You need to match up the colors for the connector. You could go to a junkyard and get the pigtail for the connector for the coil.

https://www.2carpros.com/articles/how-to-check-wiring

If you need the wiring for the 2.4 liter please start a new question

https://www.2carpros.com/questions/new

Check out the images (Below). Please let us know how it goes
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
May 13, 2021 at 7:23 PM
Avatar
RACHEL FIELDS
  • MEMBER
  • 3 POSTS
Thank you so very much. this helps me and I am very appreciative. Fingers crossed will let you know if it starts.
May 14, 2021 at 7:03 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
You are welcome.

Always glad to help.

Roy
May 14, 2021 at 6:11 PM
