timing belt marks

2002 HYUNDAI MATRIX
Avatar
FREDERICK333
  • MEMBER
  • 1 POST
the valves bend an i repair the head but i cant remember how the camshaft was set.
Jan 25, 2012 at 12:53 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

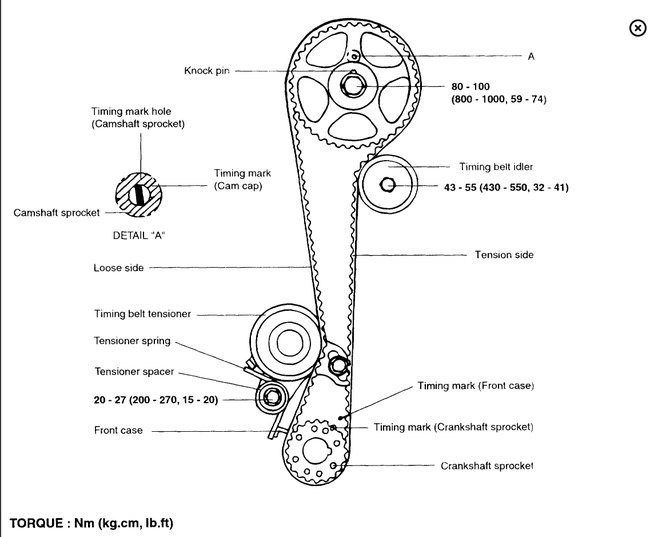

Here is a diagram (below) that shows the camshaft to crankshaft alignment. Please let us know if you need anything else to get the problem fixed.....................................
