torque head specification for gmc 2002 5.7 3500 and push out rod
2002 GMC SAVANA
140,000 MILES
JV415
MEMBER
7 POSTS
FOLLOW
hello I need to know torque head specification gmc 2002 5.7 3500
also push out rod torque specification
Oct 9, 2012 at 11:42 PM
Advertisement
HMAC300
CERTIFIED EXPERT
48,601 POSTS

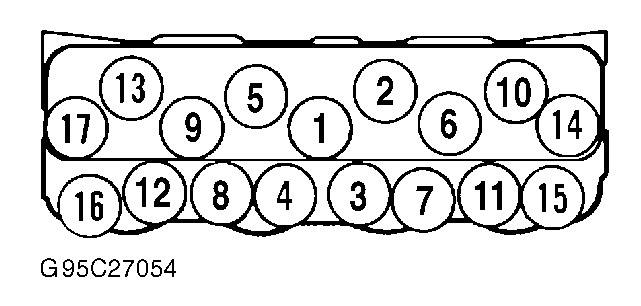

head bolt torque first pass 26, 2nd 44 3rd 66 all ft lbs.valve lash is 1turn down from O
Image (Click to enlarge)
Oct 10, 2012 at 12:21 AM
JV415
MEMBER
7 POSTS
Thanks but in very confused on what do you mean when you said 1 turn down from zero of uu can please explain that in a better way I would much apreciate it thanks jv
Oct 11, 2012 at 1:19 AM
Advertisement
HMAC300
CERTIFIED EXPERT
48,601 POSTS
you have to take all the play out of the pushrodd but stil able to spin it. then go one turn down to tighten
