2002 Ford Windstar harmonic balancer pulley

2002 FORD WINDSTAR
106,000 MILES • 3.8L • V6 • FWD • AUTOMATIC
Avatar
JIMMYE1225
  • MEMBER
  • 1 POST
can you pull the one piece harmonic balancer pulley with the engine still in the van, I have to change the reluctor wheel?
Nov 19, 2015 at 10:27 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

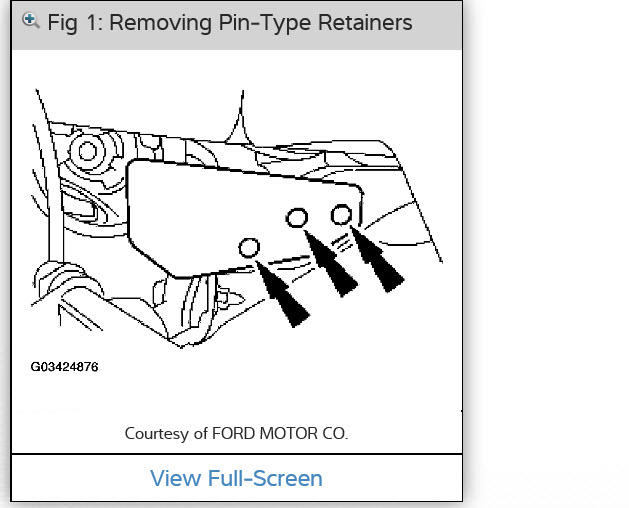

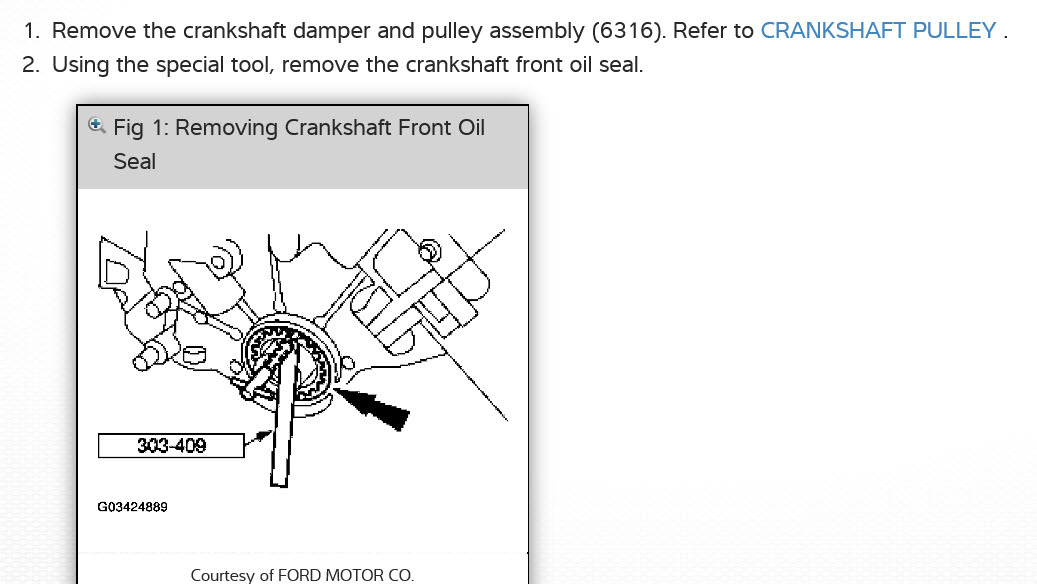

yes you can you mayhave to remove a shield to do it. also replace crank seal.
Image (Click to enlarge)
Attached Media
Nov 19, 2015 at 12:18 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

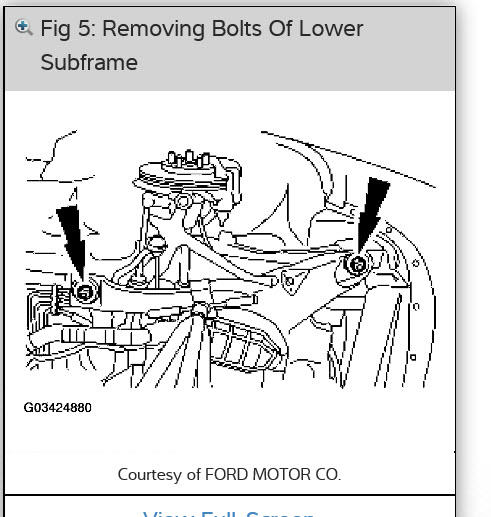

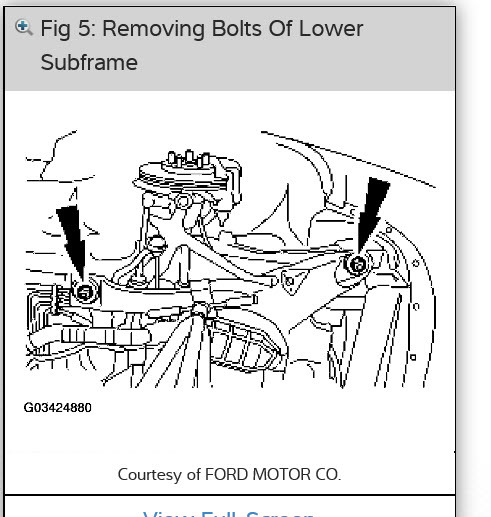

here's more if you need it. make sure to remove rh front wheel and disconnect abs sensor wire make sure to support vehicle on a jack stand the subframe has to be lowered 2" ut sealer on keyway when installing and torque on subframe is 65 ft lbs. crank pulley is 118 ftlbs.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Nov 19, 2015 at 12:24 PM
