Everything is not working but have headlights and taillights can I get a fuse panel diagram please?
Oct 28, 2011 at 10:59 PM
fuse diagram
2002 FORD WINDSTAR
RON RODGERS
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Here is a guide to help you test the fuse and the fuse location below.
https://www.2carpros.com/articles/how-to-check-a-car-fuse

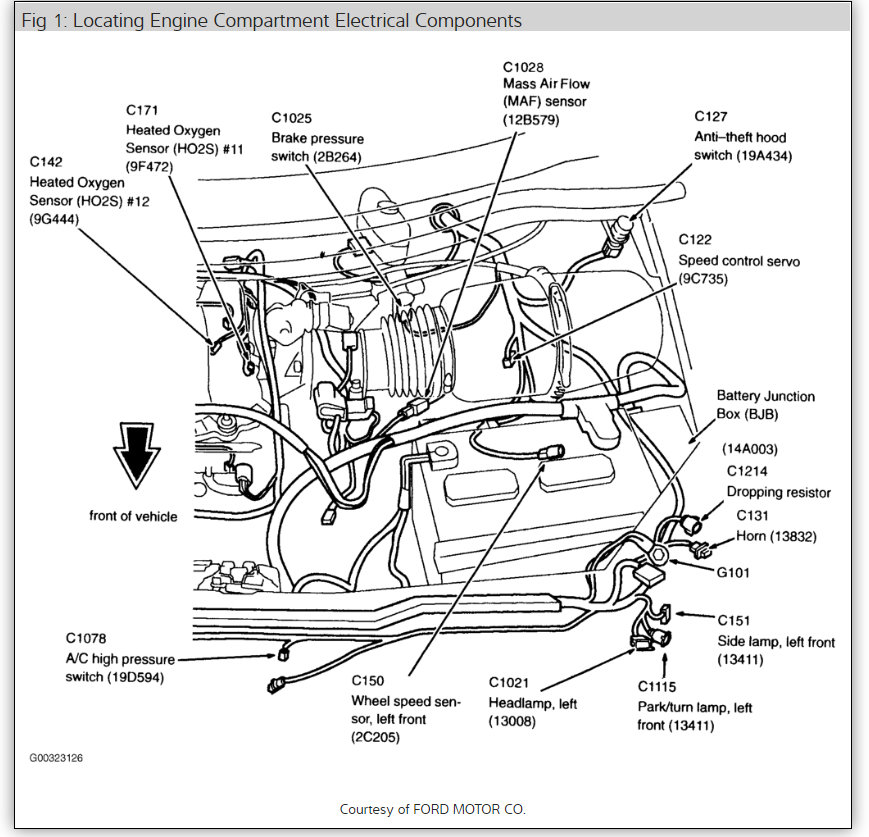

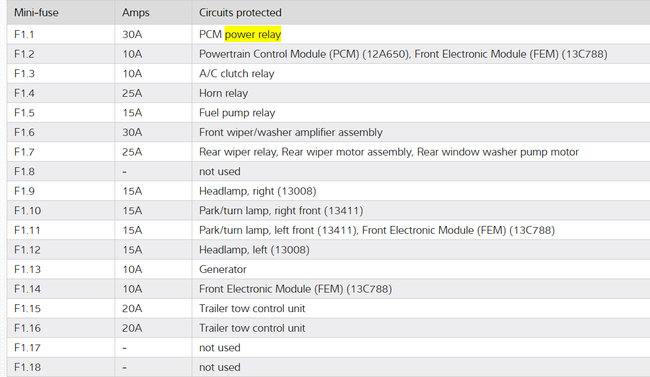

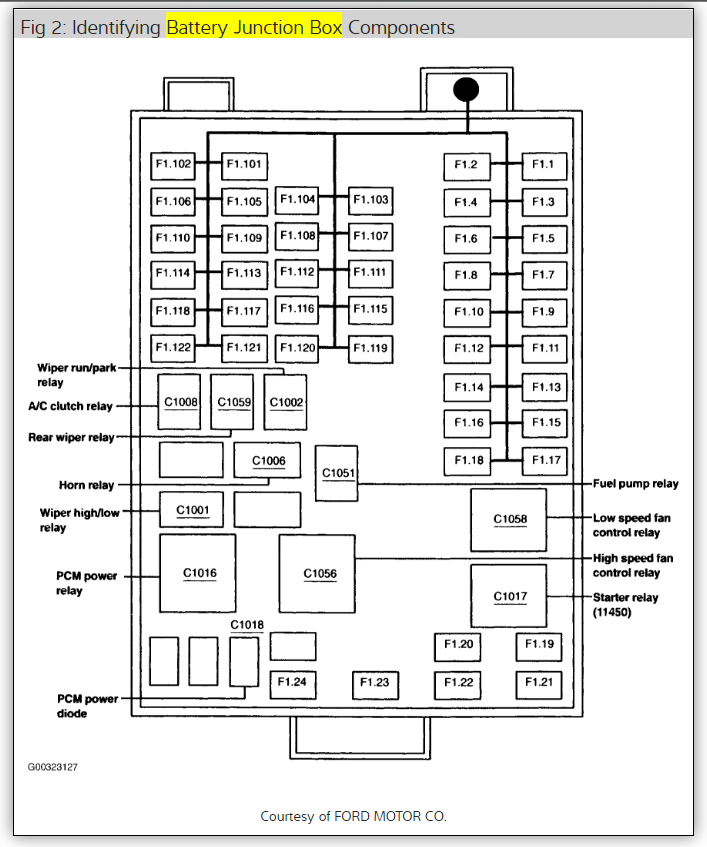

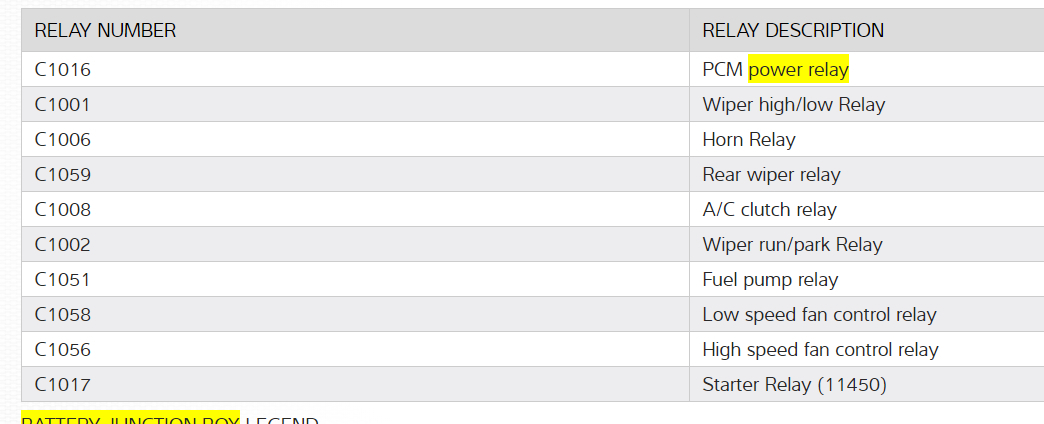

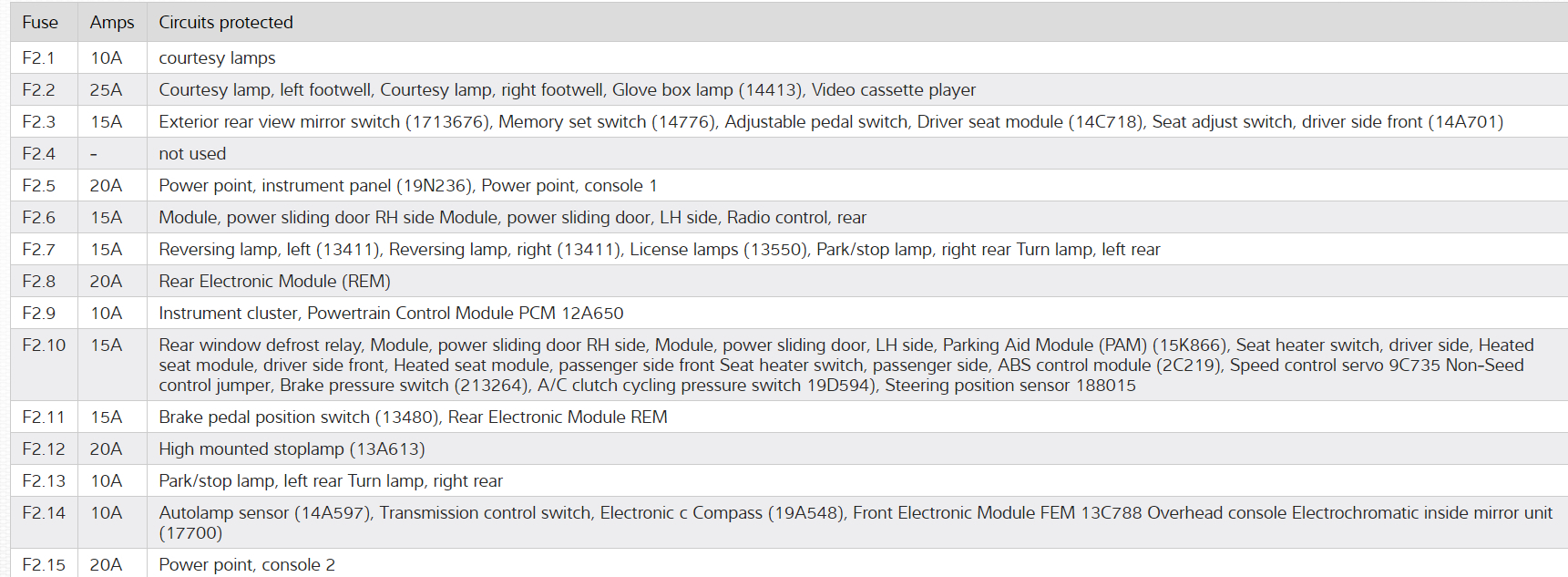

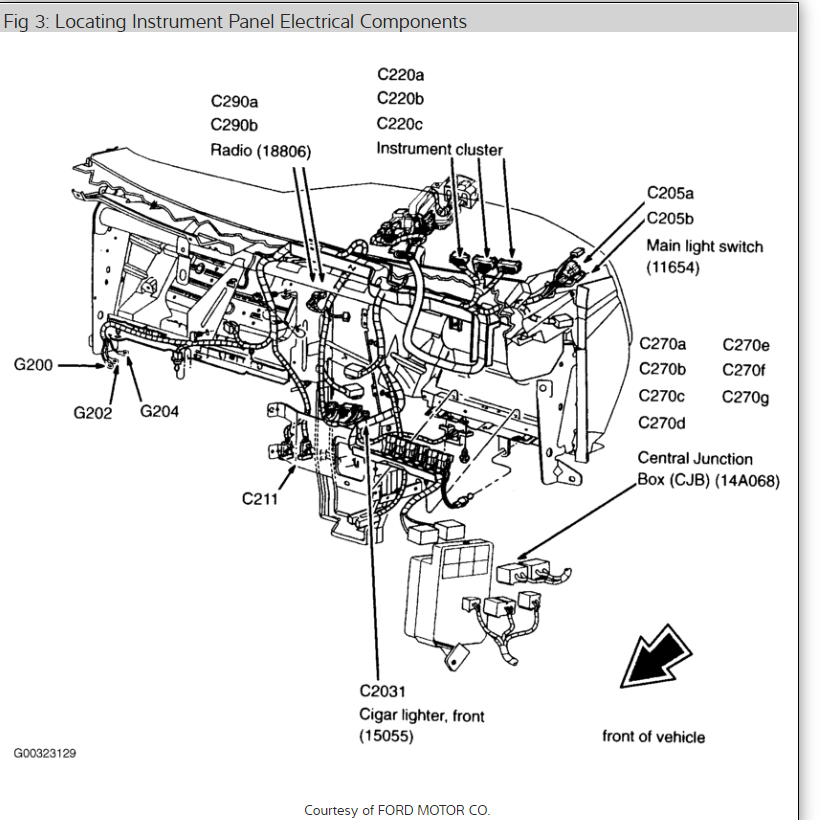

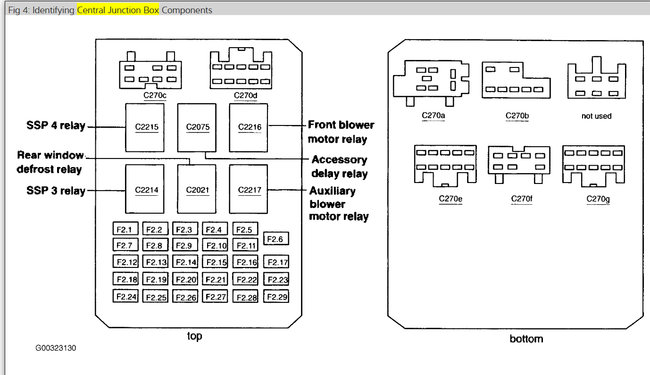

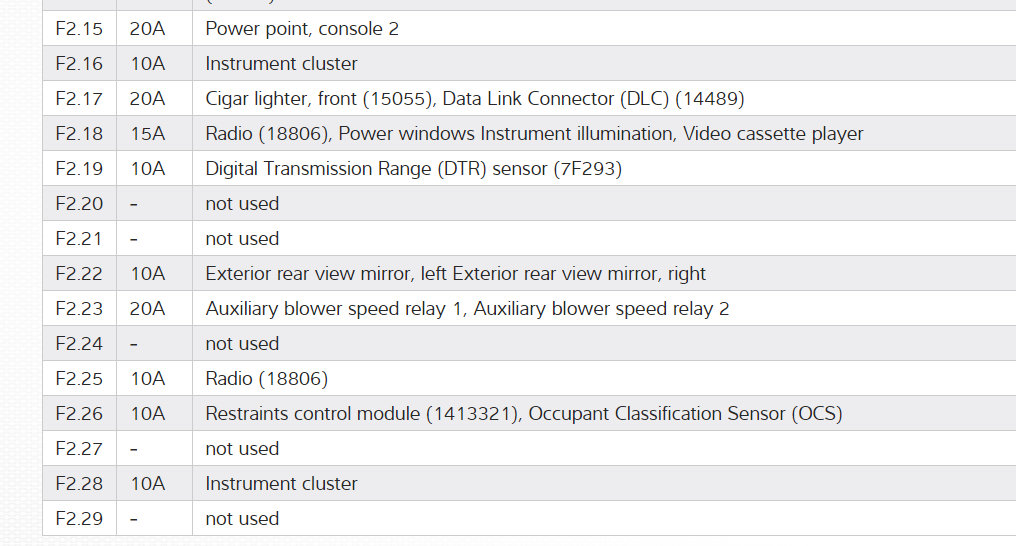

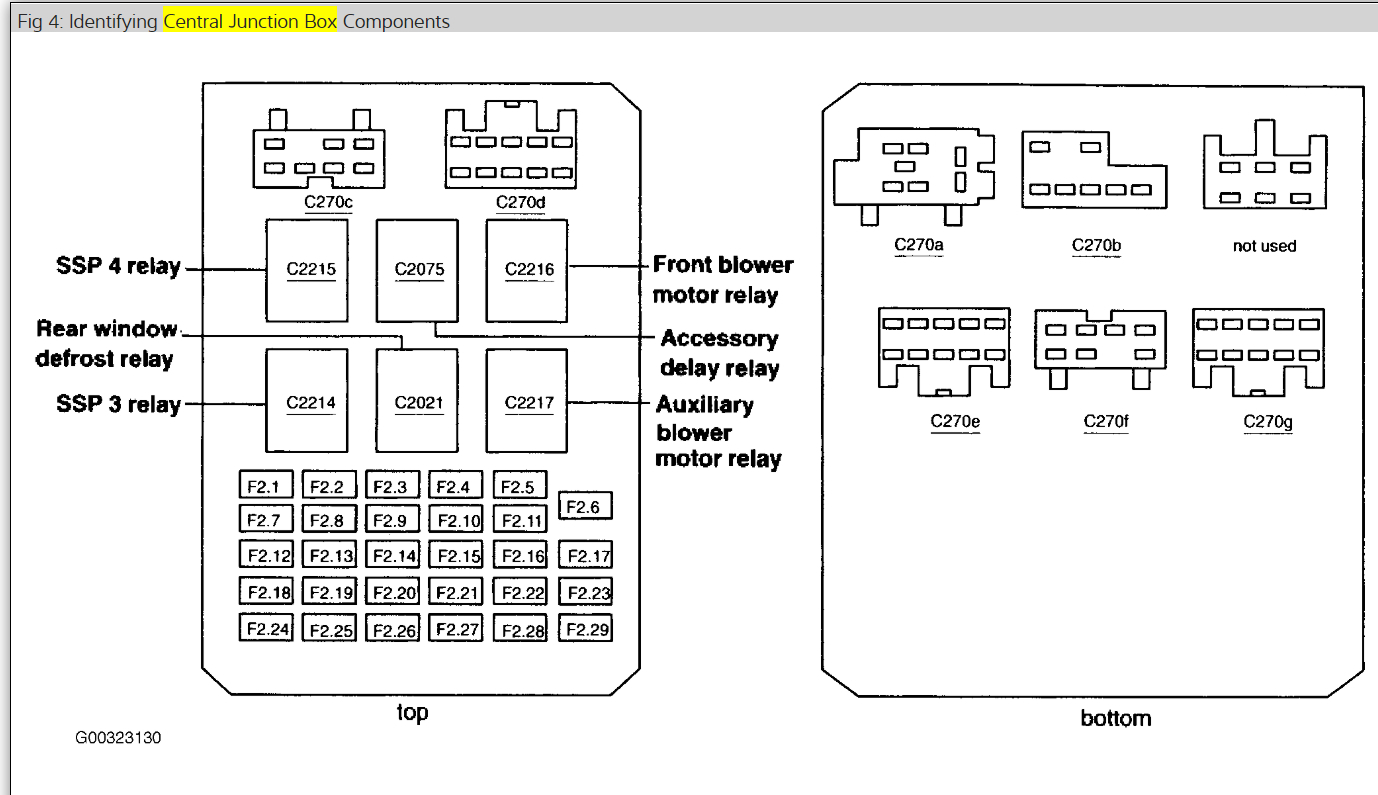

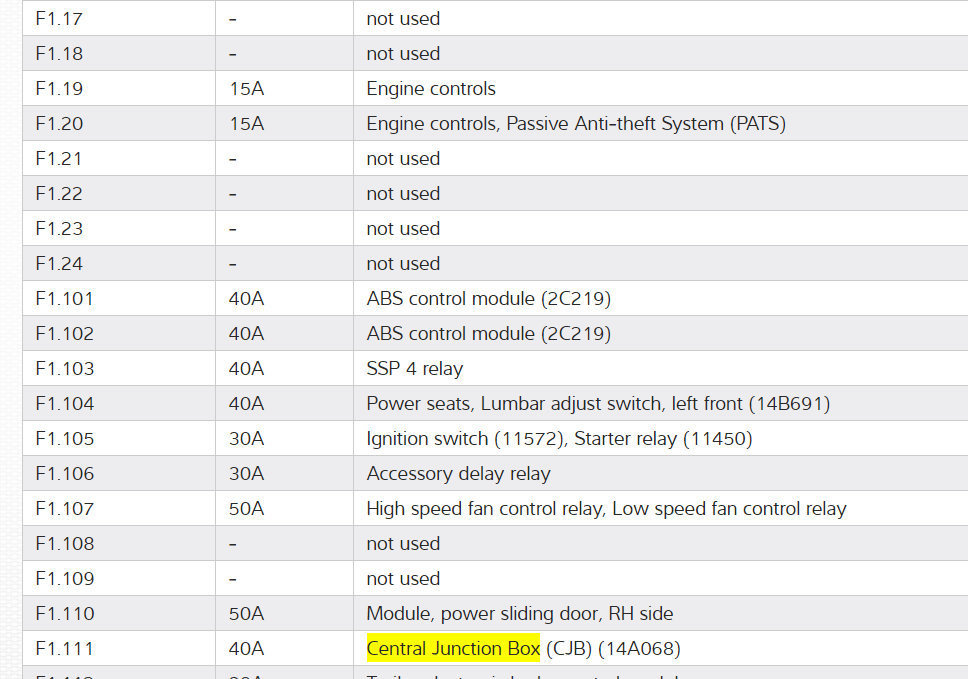

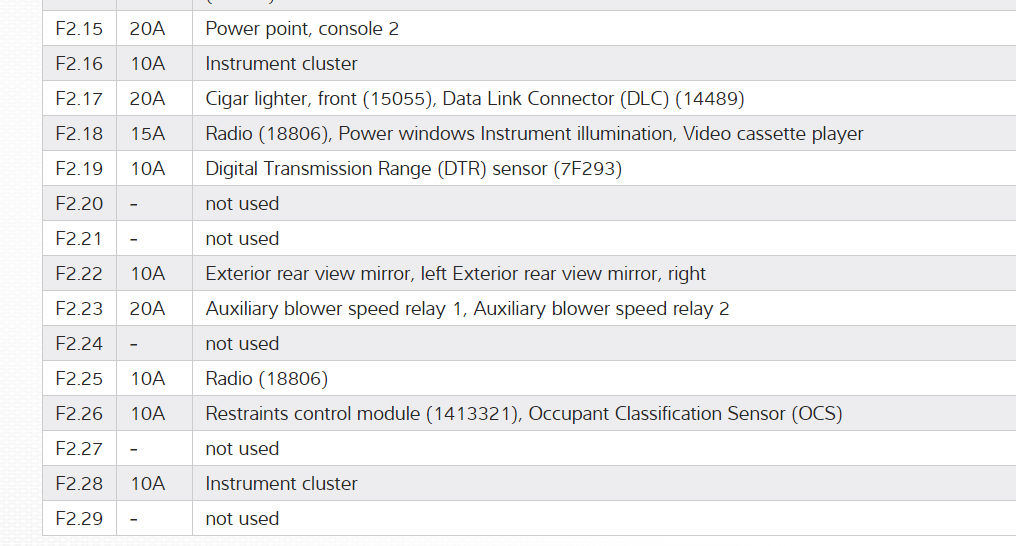

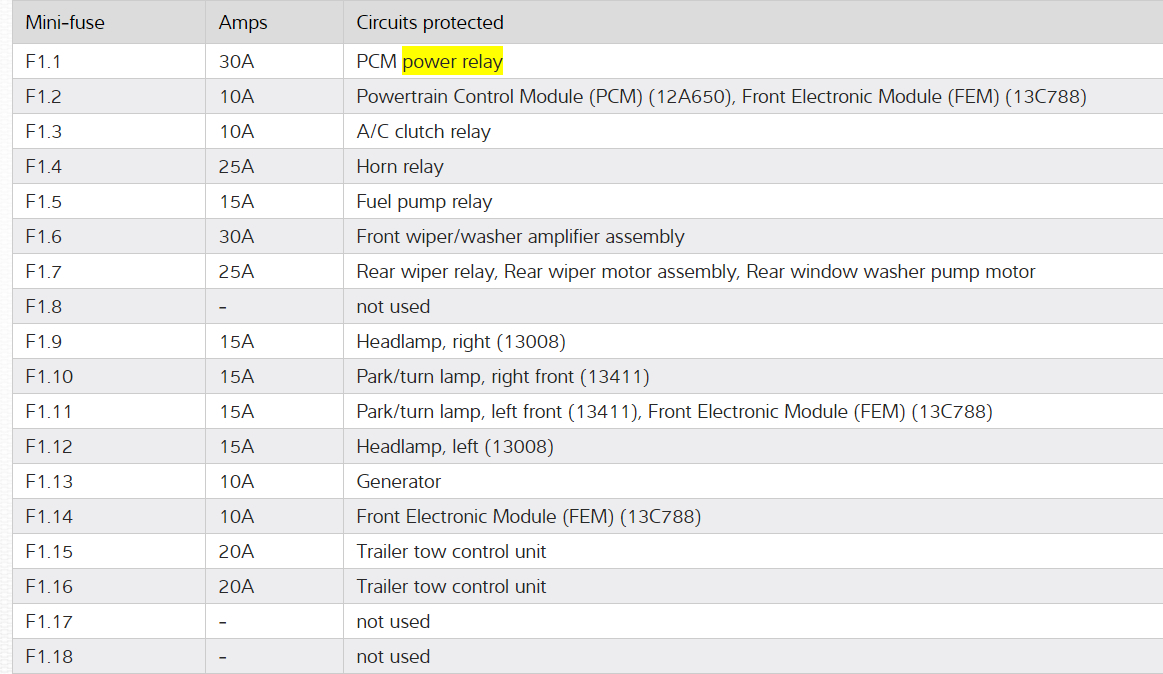

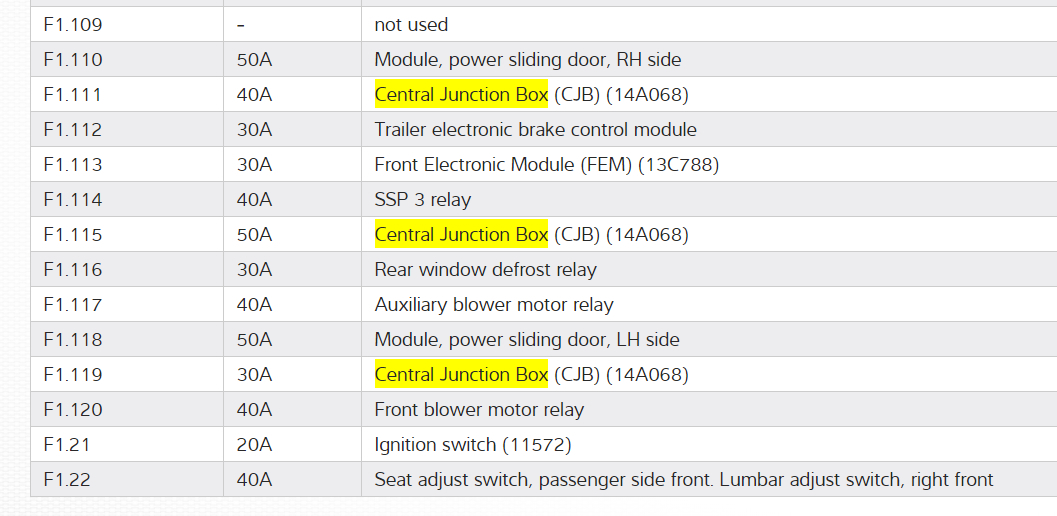

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Cheers
https://www.2carpros.com/articles/how-to-check-a-car-fuse
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Cheers
Images (Click to enlarge)
Nov 1, 2011 at 5:22 PM
