replacing window motor on front passenger window

2002 FORD EXPLORER
Avatar
DLF5656
  • MEMBER
  • 2 POSTS
replaced both door switch and master switch on 2002 ford explorer front passenger and window still wont go up how do you replace motor
Nov 27, 2010 at 5:40 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

In order to replace the window motor you will have to remove the inner door panel.
It will require you to remove few screws and several plastic fasteners, that keeps the panel in place.
This can be done in a relatively short period of time, depending on your comfort level.

Here are couple of helpful articles:

https://www.2carpros.com/articles/how-to-check-and-replace-a-electric-power-window-motor
https://www.2carpros.com/articles/door-panel-removal

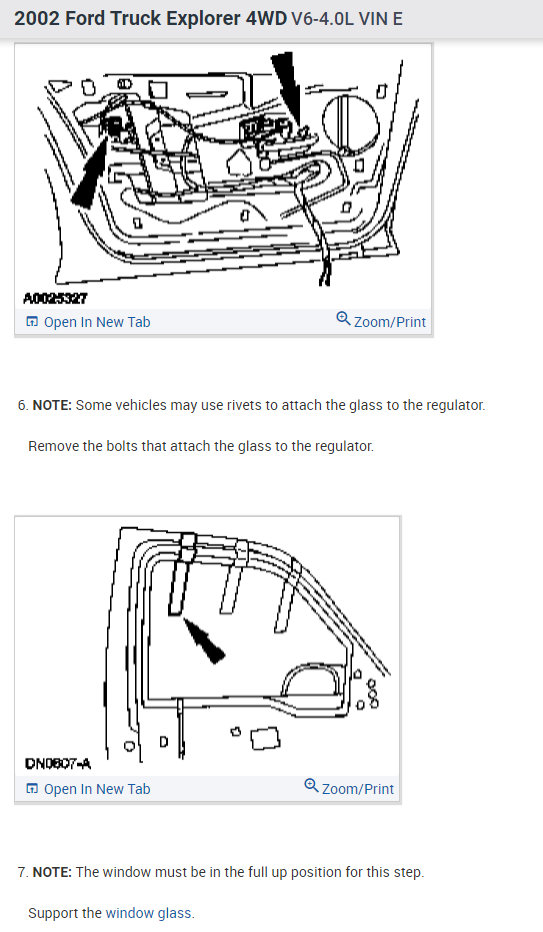

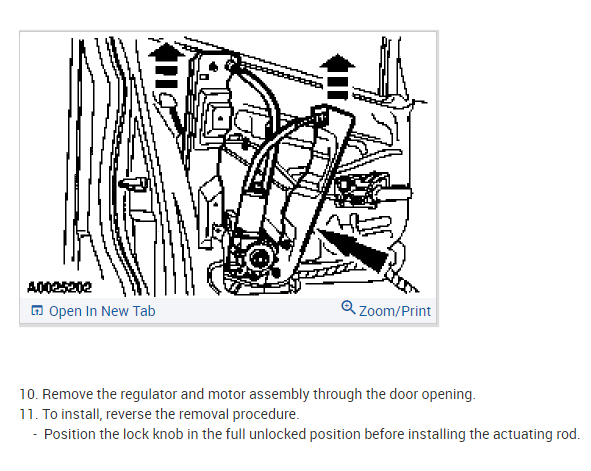

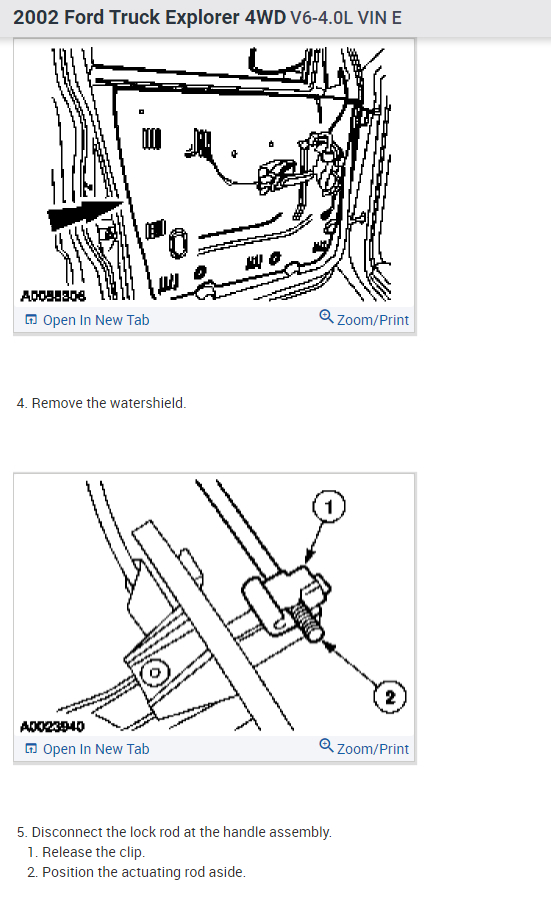

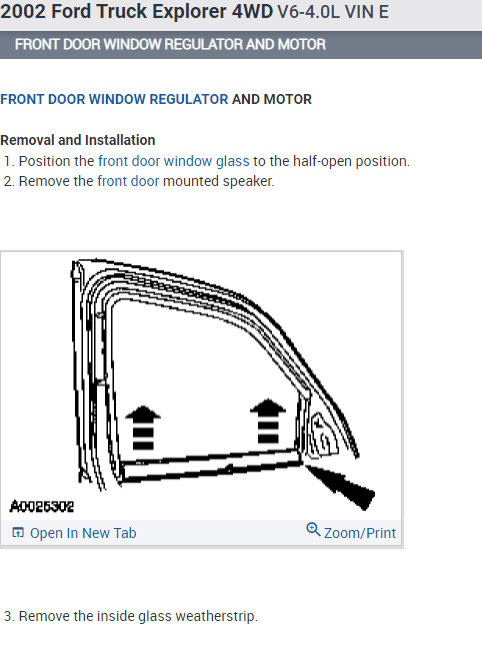

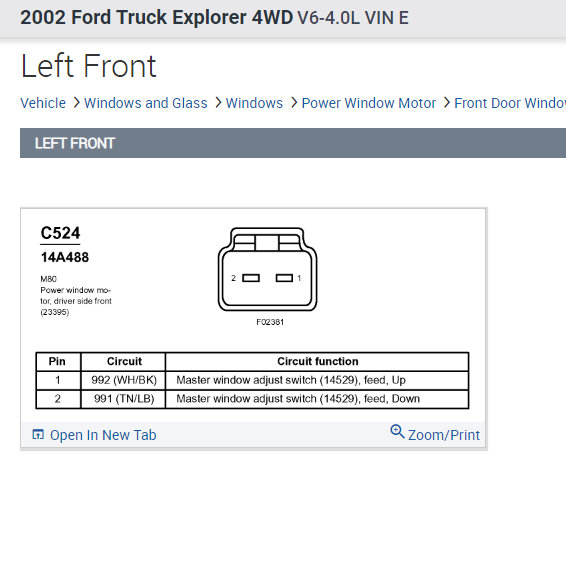

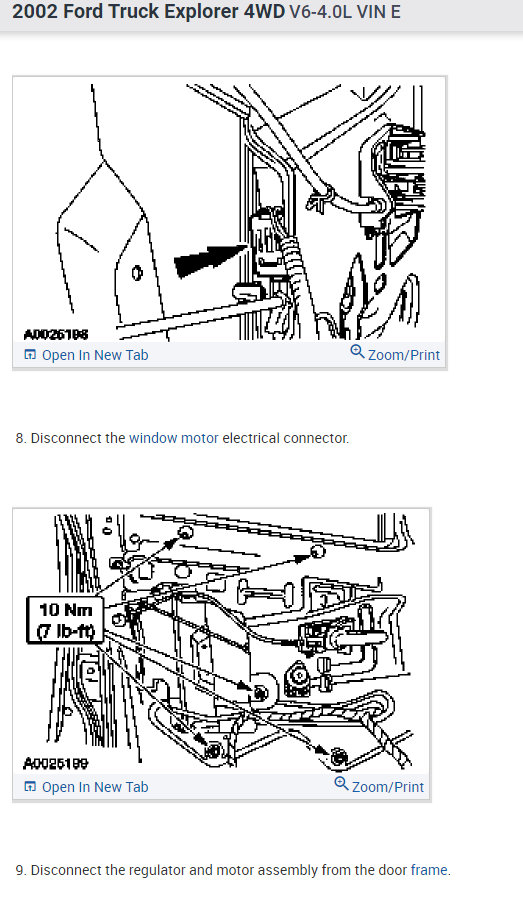

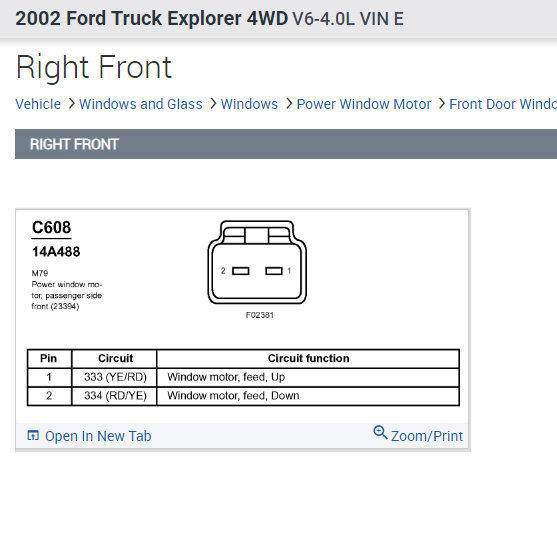

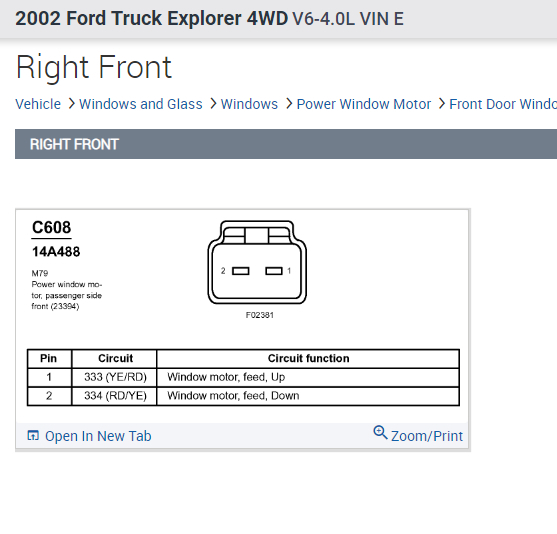

I attached diagrams for your reference.

Please let me know of any questions.
Thank you.
Sep 25, 2021 at 6:10 PM
