Code P0113 high circuit Intake Air Temperature Sensor

2002 FORD EXPLORER
128,726 MILES
Avatar
CHEDGLIN
  • MEMBER
  • 1 POST
I replaced the MAF sensor and the Coolant temperature Sensor and vehicle doesn't run still. Driving down the highway one day and lost power wouldn't go above 2000 rpms when i hit the gas.. i pulled over and the truck died. When i started it back up i would hit the gas and it would shut off and when it idled it was real sluggish. I towed it home its in my driveway and now doesn't start at all. I bought a diagnostics computer and it read a bunch of cylinder misfires and multiple misfires.

I also got the code p0113 came up as 1 circuit high input intake air temp. sensor. On my vehicle it is part of the MAF sensor. I replaced the MAF and still doesn't start. I also replaced the Coolant temp. sensor for the hell of it cuz i noticed it was bad. What is wrong with my truck?
Nov 13, 2011 at 11:40 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

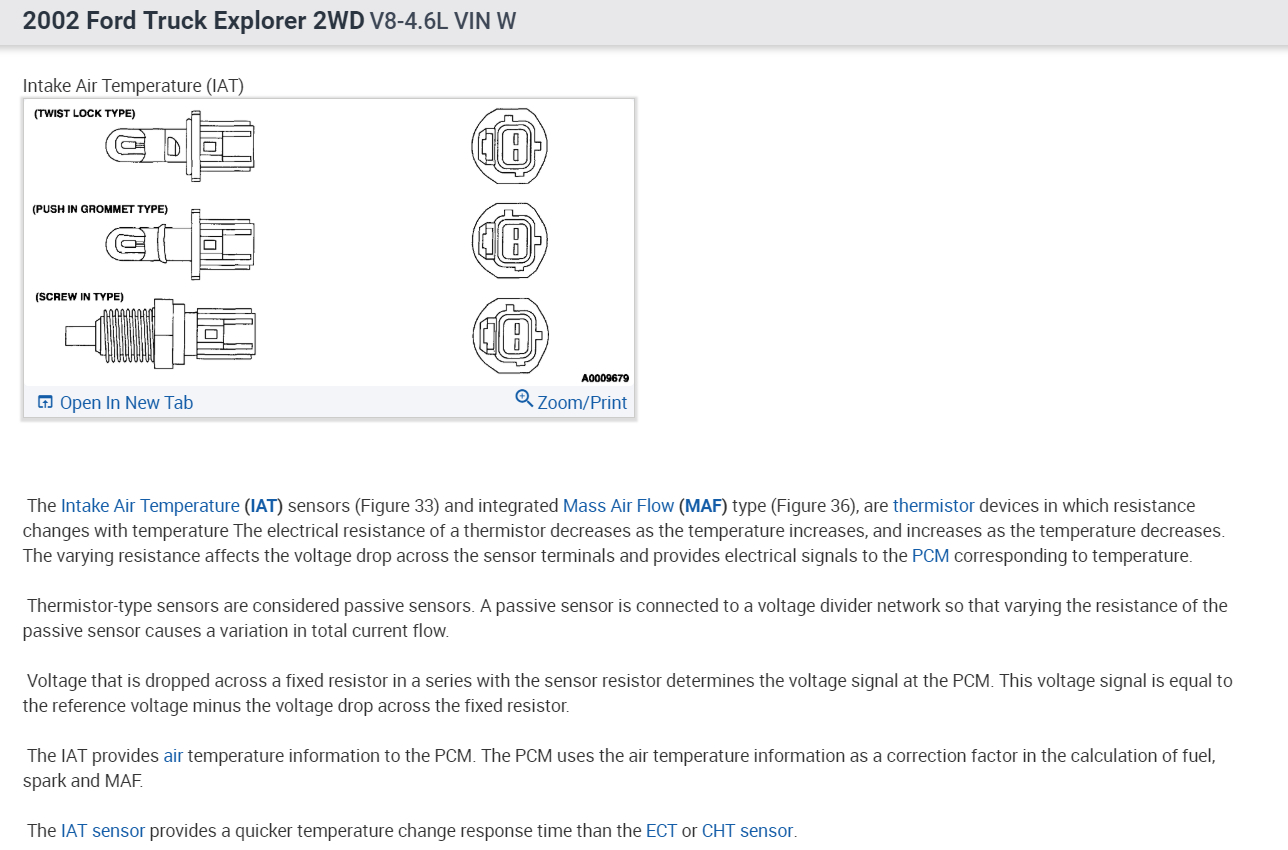

It sounds like the air intake temperature sensor has shorted causing the PCM not to work here is the location of the sensor which is in the air intake tube heading to the throttle body. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Nov 14, 2011 at 1:23 AM
Avatar
CHRIDONWILL
  • MEMBER
  • 1 POST
2002 Ford Explorer 6 cyl Four Wheel Drive Automatic

Where can I locate the Intake Air Temperature Sensor on my 2002 Ford Explorer Sport Trac Truck?
Mar 12, 2019 at 12:19 PM (Merged)
Advertisement
Avatar
DAVE H
  • CERTIFIED EXPERT
  • 13,384 POSTS
Hello .. thanks for the donation.. much appreciated ..

I have looked in my manual for the IAT sensor and the 2002 ford explorer 4.0L sport trac is not fitted with a Intake Air Temp Sensor ..

Hope this helps .. let me know if you require any more information
Mar 12, 2019 at 12:19 PM (Merged)
Avatar
TABITHAD.
  • MEMBER
  • 1 POST
I have a haynes manual tat I use to do most of the work on my vehicle. It seems as though a lot of the digrams shown for my engine are off. I am having trouble finding the IAT sensor. It is not located on the plenum. Could it somehow be an accessory that I don't have. This is an Eddie Bauer 1994 Explorer, 6 cyl.,pushrod 4.0 liter. Please help!
Mar 12, 2019 at 12:19 PM (Merged)
Avatar
BMRFIXIT
  • CERTIFIED EXPERT
  • 19,053 POSTS
[quote:1e6c5d0989="tabithad."]Other Category problem
1994 Ford Explorer 6 cyl Two Wheel Drive Automatic 200000 miles
----------------------------------------------------------------
I have a haynes manual tat I use to do most of the work on my vehicle. It seems as though a lot of the digrams shown for my engine are off. I am having trouble finding the IAT sensor. It is not located on the plenum. Could it somehow be an accessory that I don't have. This is an Eddie Bauer 1994 Explorer, 6 cyl.,pushrod 4.0 liter. Please help![/quote:1e6c5d0989]
located in the air tube before the throtle body and right after the air filter and mass air flow sensor almost over the valve cover u can see the wires

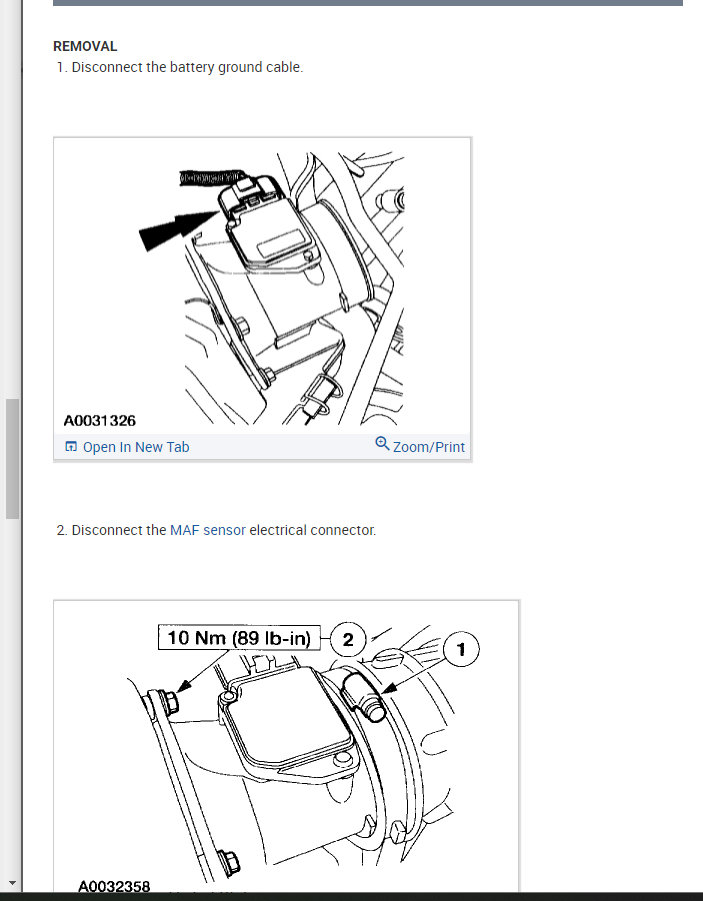

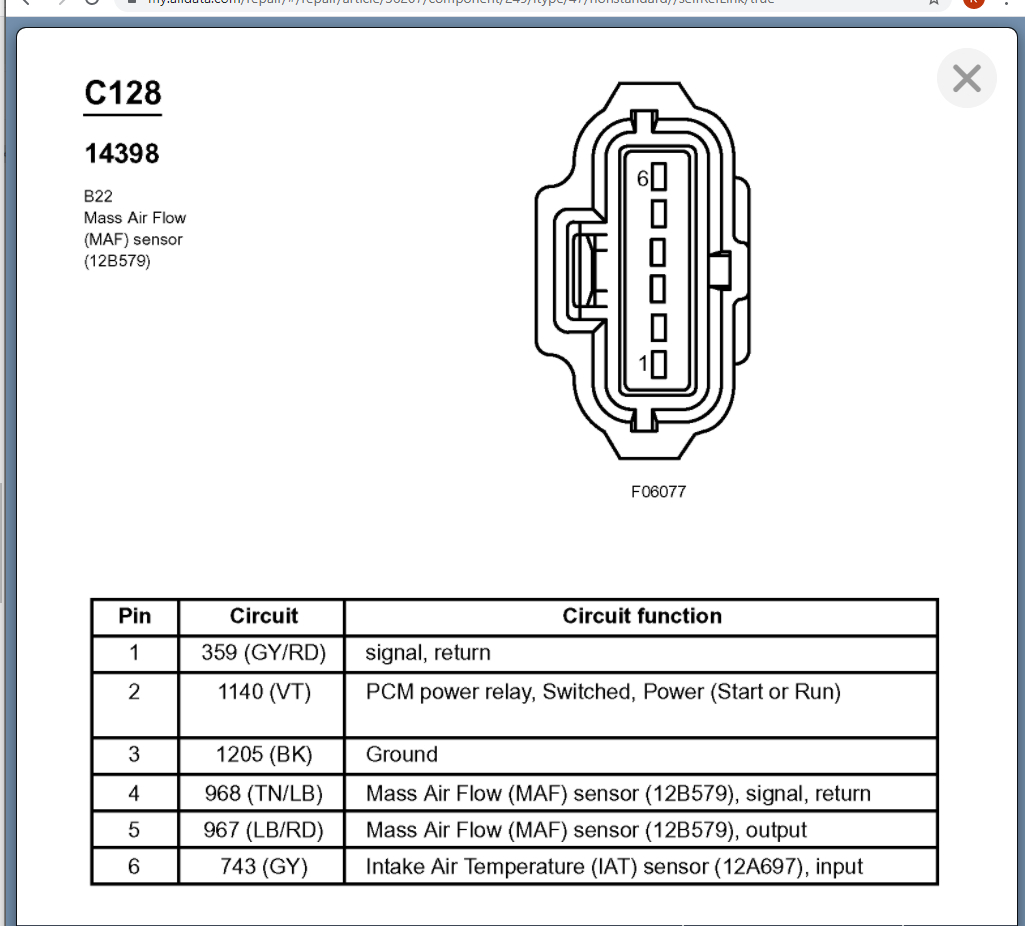

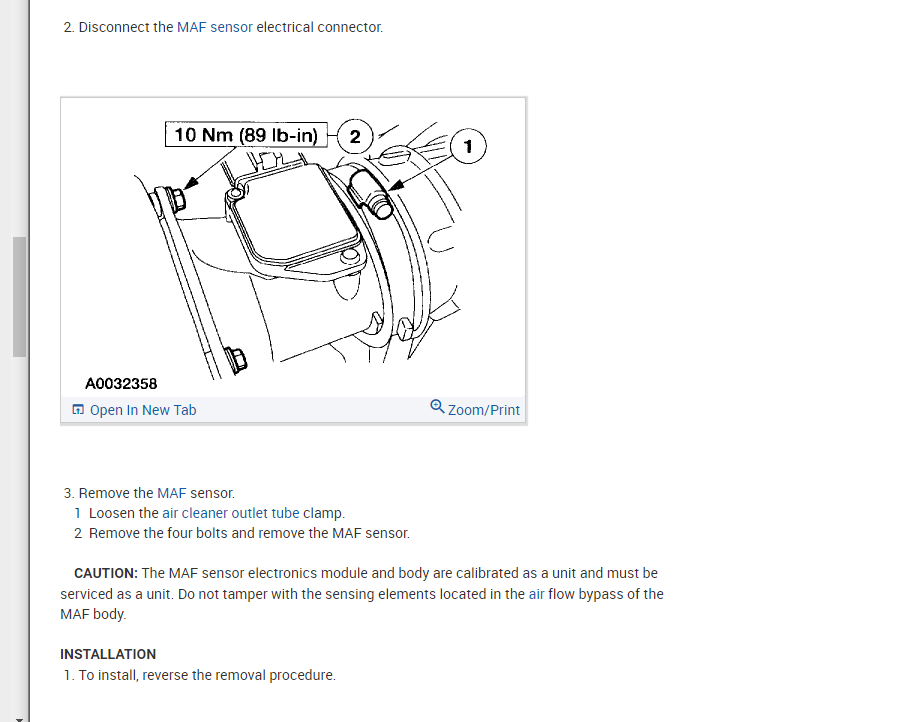

The IAT and MAF are actually in the same sensor. See the info below.
Mar 12, 2019 at 12:19 PM (Merged)
