wiring schematics for 2002 dodge stratus r/t

2002 DODGE STRATUS
96,000 MILES • 6 CYL • FWD • MANUAL
Avatar
AMBERIFIC9282
  • MEMBER
  • 2 POSTS
Hello, i drive a 2002 Dodge Stratus R/T and I need a diagram or an order in which the wires are connected to the mass air flow sensor. Either by color or a certain way that they plug in would help greatly.
Feb 2, 2011 at 6:12 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

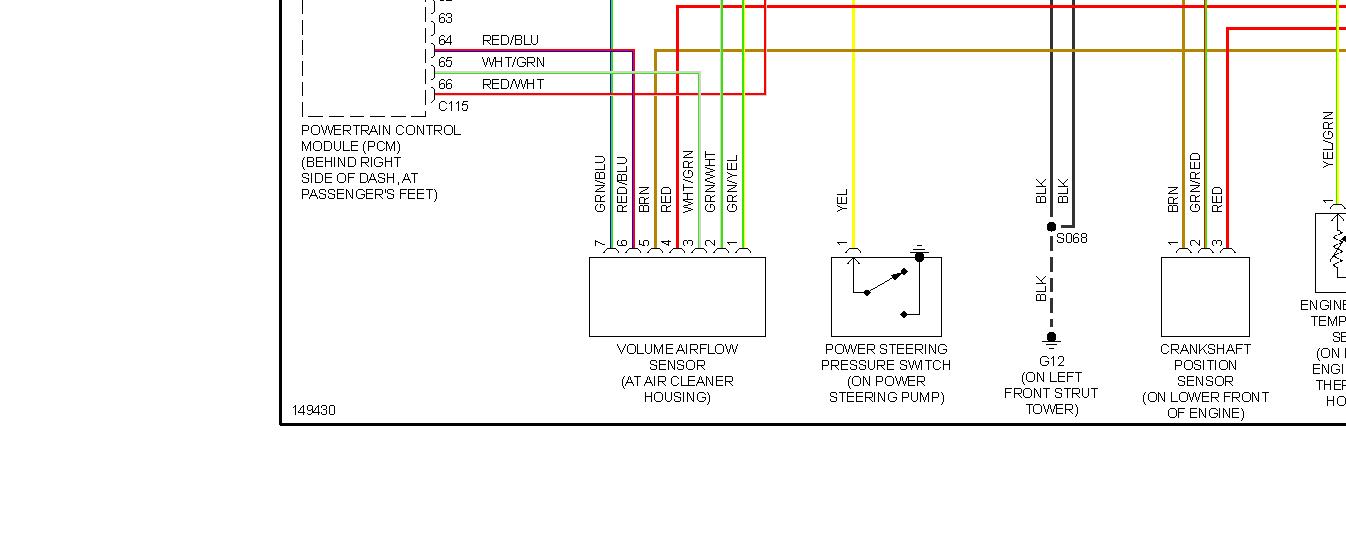

See below:

Image (Click to enlarge)
Attached Media
Feb 2, 2011 at 6:36 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

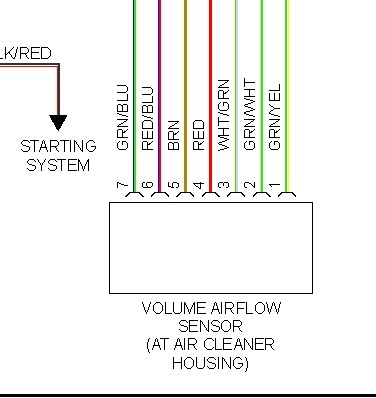

I'm not sure this is what you need? Click on the link.
Image (Click to enlarge)
Attached Media
Feb 2, 2011 at 6:40 PM
Advertisement
Avatar
AMBERIFIC9282
  • MEMBER
  • 2 POSTS
Yep!! Thank you so much. I looked everywhere for this chart. Thanks once again!
Feb 2, 2011 at 8:01 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
No problem. Have a good day.
