2002 Intrepid 2.7L need to know where markers need to be set for timing chain

2002 DODGE INTREPID
Avatar
KAT0421
  • MEMBER
  • 10 POSTS
working on timing chain and dont no where to set the markers for the timing chain
Feb 9, 2012 at 8:36 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

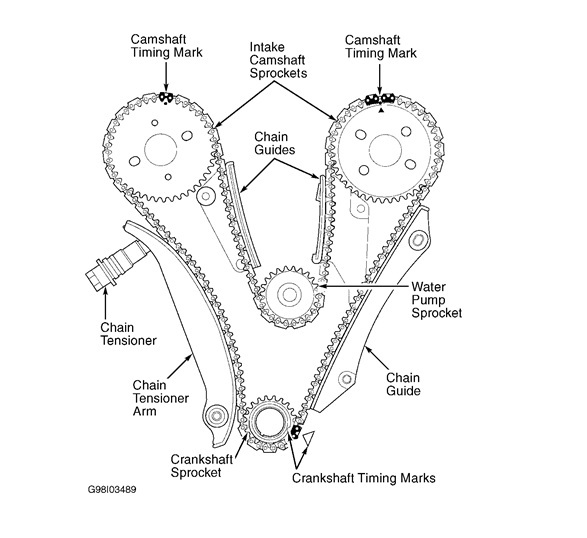

My info shows this, diagram.
Image (Click to enlarge)
Attached Media
Feb 9, 2012 at 8:40 PM
