2002 CHEVROLET SUBURBAN
200,000 MILES
Avatar
BSINNED29
  • MEMBER
  • 1 POST
is there a link somewhere for a schematic of color code wire diagram for factory radio wires in dash?
Dec 7, 2012 at 7:51 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

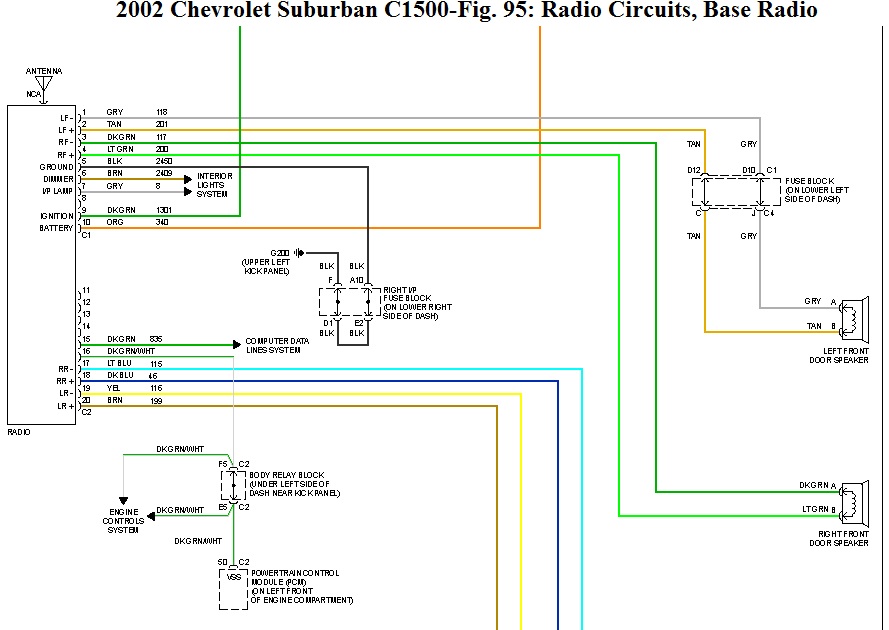

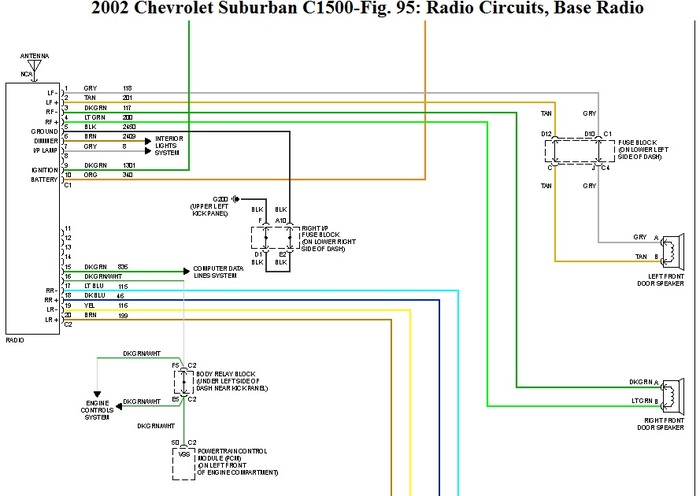

This is for base radio, Hope you can read it.
Image (Click to enlarge)
Attached Media
Dec 7, 2012 at 9:06 PM
