2002 Chevrolet S-10 broken connector

2002 CHEVROLET S-10
50,000 MILES • 4.3L • 6 CYL • 4WD • AUTOMATIC
Avatar
ASCAR1966
  • MEMBER
  • 1 POST
I have a 3 wire connector that has been ruined (cut wires close to connector) I am not sure what the connector is for, but it goes to what looks like a sensor that says "sensor pressure...5v out ground" it has #09359409 on it. When I look up the diagram of it, I find what looks like MAP sensor. It is right behind the throttle body, it sits in a black "u" shaped clip. OK, but when I look up the part, I find almost the exact match...almost. It looks as though the inside of the connector is opposite what I have. Any thoughts?
Jul 18, 2014 at 6:59 PM
Advertisement
Avatar
CADIEMAN
  • CERTIFIED EXPERT
  • 3,544 POSTS
cut the wires and crimp connectors to the wires and install them back on the proper terminals. then go to the dealer and see if they stock it.if they don/t they can order it.you can try local junk yards also.
Jul 18, 2014 at 7:32 PM
Avatar
ASCAR1966
  • MEMBER
  • 1 POST

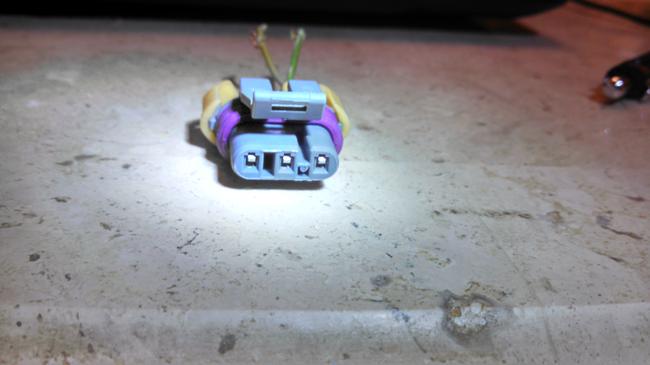

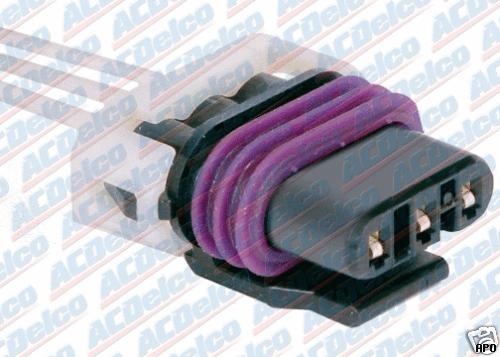

Thanks. Yes I thought of that fix, but the wires are cut right at the connector, so no chance to repair mine. I am not sure what the connector is for as I said in my question, I think it may be MAP sensor, I have gone to parts store, and when they pull up the MAP connector, the picture is opposite. See the pics included, first one is mine, second one is the image for MAP sensor connector
Images (Click to enlarge)
Attached Media
Attached Media
Jul 18, 2014 at 7:56 PM
