Monte Carlo Ls Transmission Fluid Pressure switch

I do not have a diagram for that I can give you due to ownership rights. However, it is an internal pressure switch and the cases have to be taken apart to get to it.

What ownership rights? Is it on the right side of the transmission or left where the housing is separated to get to the flywheel ect.

Btw answering with I don't have a diagram because of ownership rights is not really a helpful answer, it would have been easier to not say anything.

Like a copyright the manufacturer owns propietary rights to any and all information they produce. That gives them the right to charge for any type of use or distribution of material..

I am sorry and I understand your poistion. I just saw that your question was not being answered quickly and I also could have been more clear in the description of its location.

The Pressure Control Solenoid is on the passenger side of the vehicle, right side, and is nearest to the rear of the transmission cases.

If you need anything else, please let me know as I don't try to make anyone dis-satisfied in the information they receive and I agree that despite the diagram, I could have been more descriptive in its location.

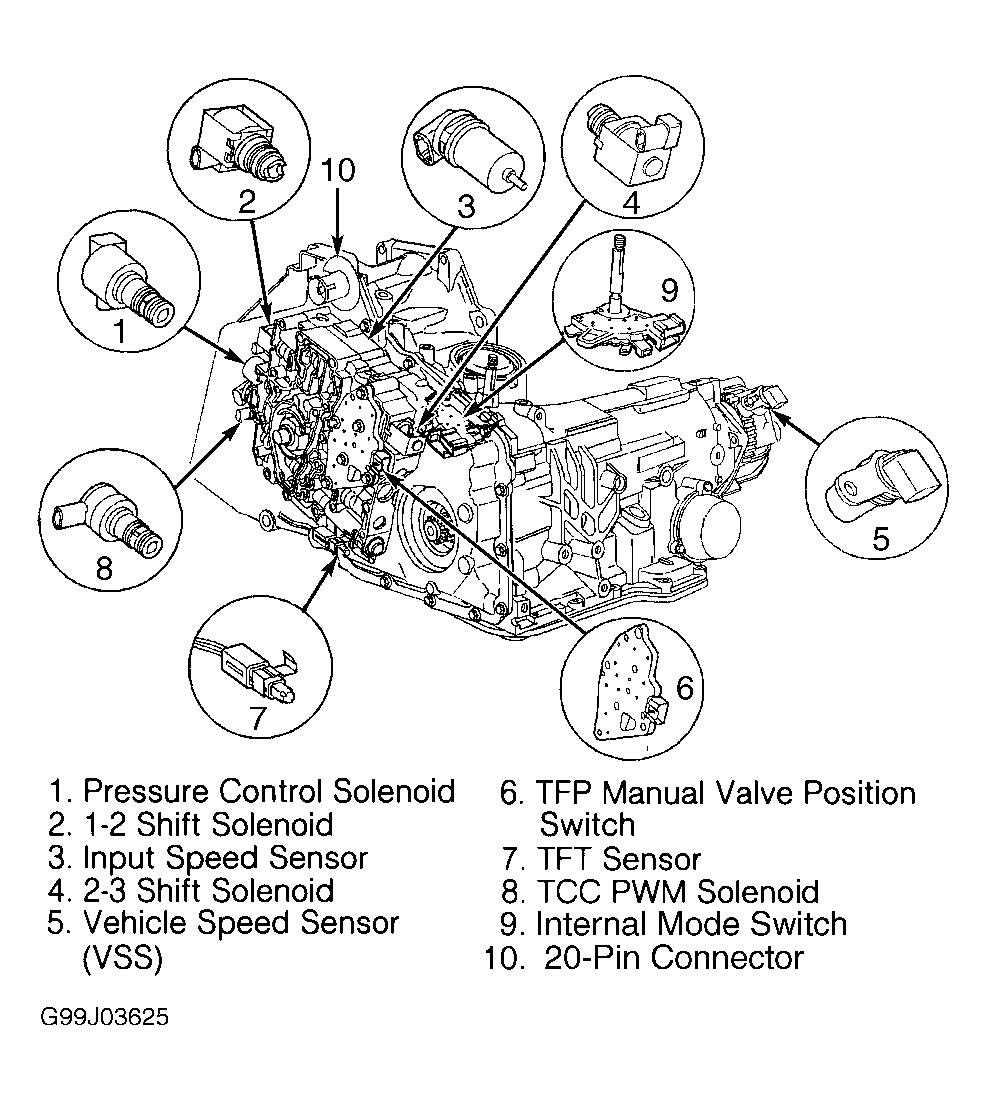

I got the diagram for you. I just had to verify. Sometimes these things can get sticky, but it is attached.
Let me know if you can view it without issue because I had to work around a few things.
