2002 Chevrolet Avalanche replace timing chain

2002 CHEVROLET AVALANCHE

160,000 MILES • 5.3L • V8 • 4WD • AUTOMATIC

VRMCMEZQUITA

MEMBER
1 POST
FOLLOW

I want to know the easy way to replace chain behind the oil pump and the torque for each bolt in that area

Mar 26, 2015 at 9:39 AM

HMAC300

CERTIFIED EXPERT
48,601 POSTS

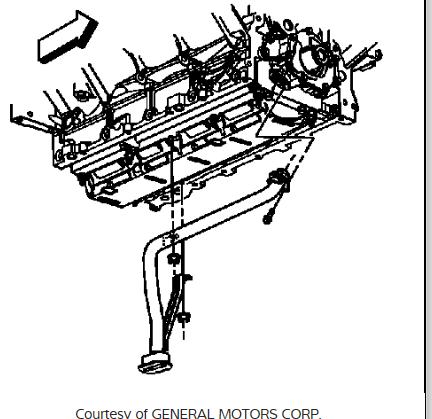

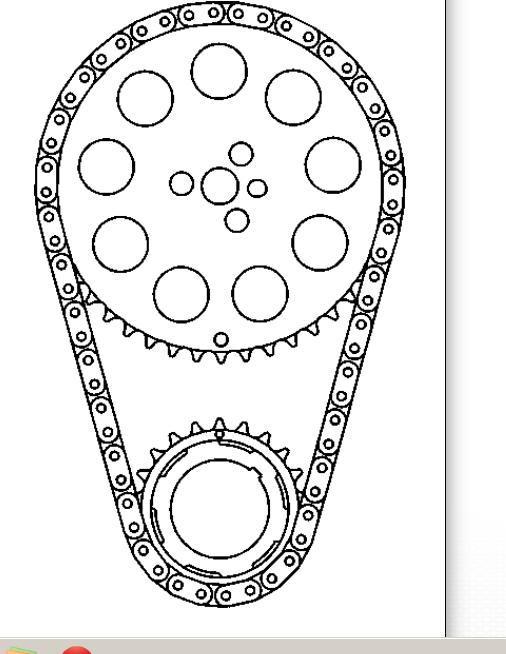

cam sprocket bolts torque 26 ft.lbs. yo have to drop the pan to remove the oil pump as the pickup is bolted to main cap. most of the pan and timing cover bolts as well as pump bolts are 18 ft lbs.

Images (Click to enlarge)

Mar 26, 2015 at 9:52 AM
