replacing the stereo in my wifes avalanche cut the wires and found wiring diagram got all finished but now the dash lights wont come on?
Dec 29, 2010 at 4:02 PM
now the dash lights wont come on?
2002 CHEVROLET AVALANCHE
DEAN WINTERS
- MEMBER
- 1 POST
- FOLLOW
Advertisement

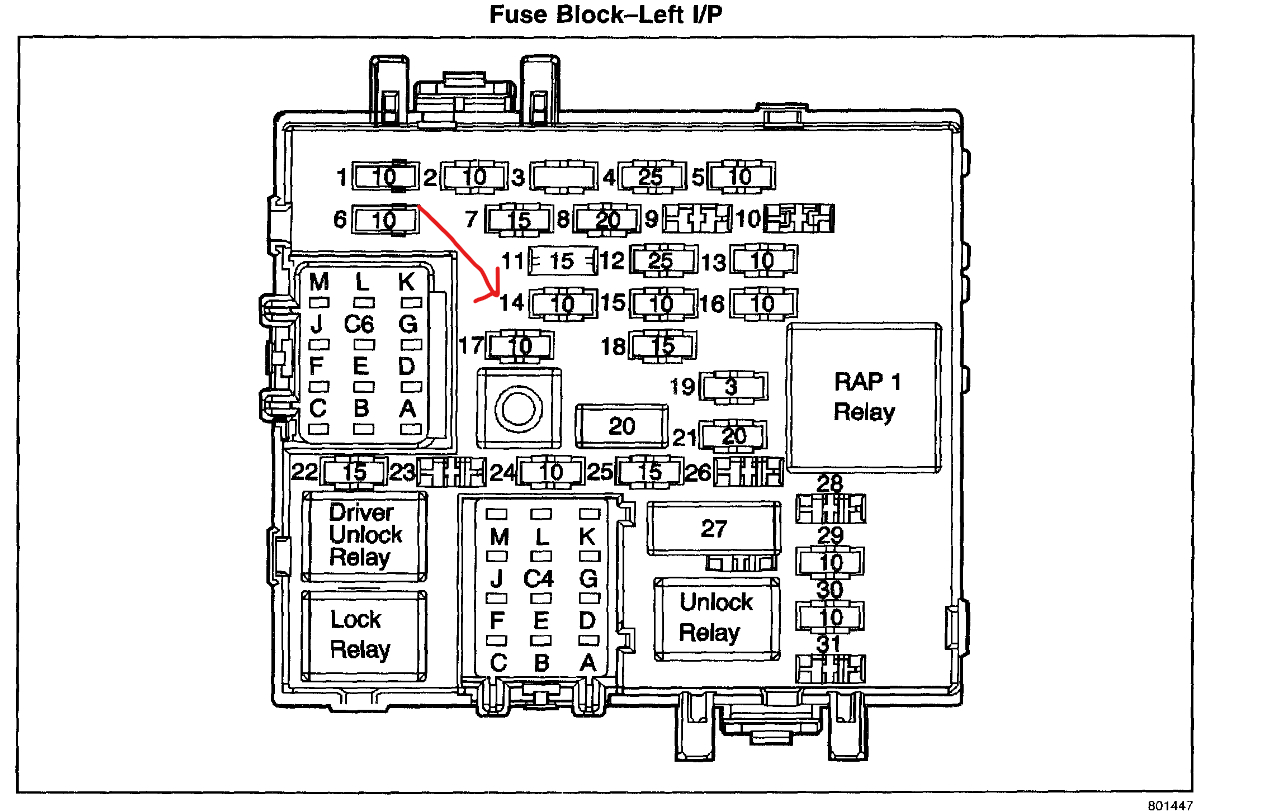

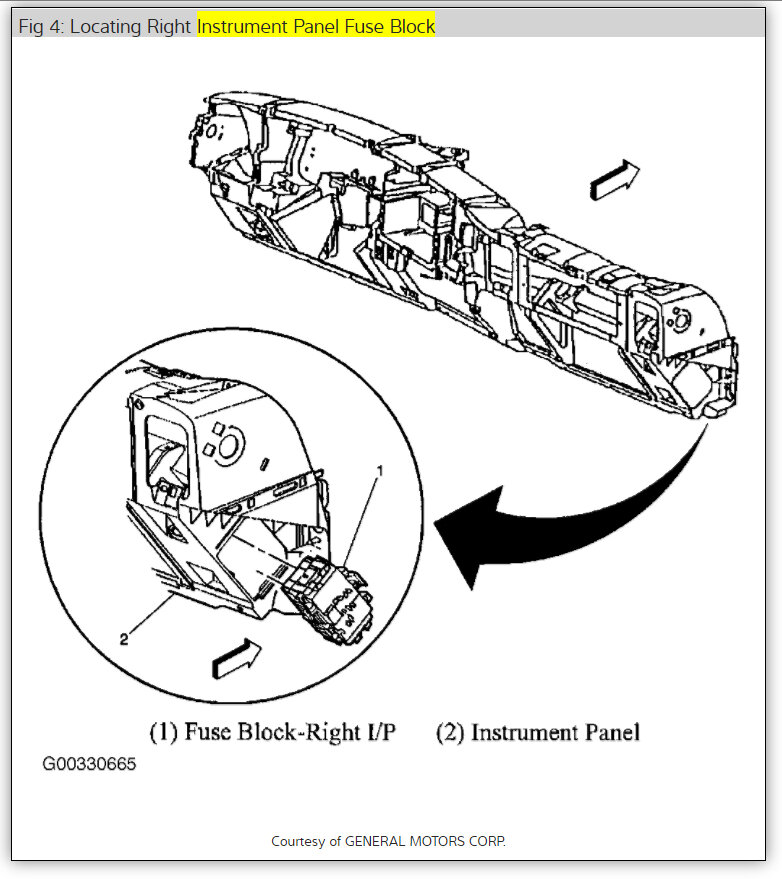

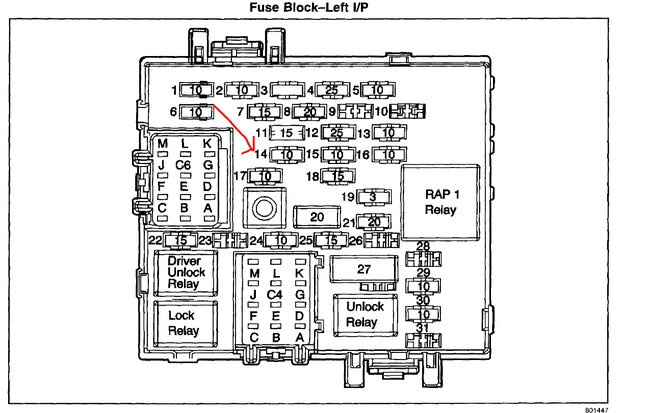

Let's check the fuse #14 -10 amp in the interior fuse panel, it could have popped when you were doing the work. Here is a guide to help and the fuse location in the images below.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
If the fuse is okay my suggestion is since you put an aftermarket radio in, re solder the original connect to it's wires, then buy any installation adapter, this will plug into your harness and into the new radio without cutting any wires. These adapters power all needed items so everything works. This is the proper way to do the job an cars with onboard computers, like yours for example. Check out the images (Below). Please let us know what happens.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
If the fuse is okay my suggestion is since you put an aftermarket radio in, re solder the original connect to it's wires, then buy any installation adapter, this will plug into your harness and into the new radio without cutting any wires. These adapters power all needed items so everything works. This is the proper way to do the job an cars with onboard computers, like yours for example. Check out the images (Below). Please let us know what happens.
Images (Click to enlarge)
Mar 10, 2011 at 8:10 PM
