rear window defog not working replaced relay no help are there any other fuses
Dec 27, 2010 at 1:36 AM
rear window defog not working
2002 CHEVROLET ASTRO
JESSPRIDDYSR
- MEMBER
- 4 POSTS
- FOLLOW
Advertisement
Replacing parts without understanding what is fault is a waste of time and money.
For electrical faults, you need a test lamp or DVOM to test for power supply.

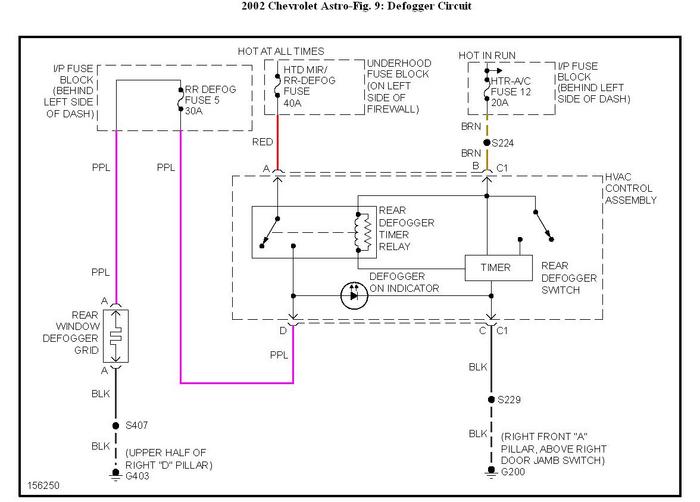

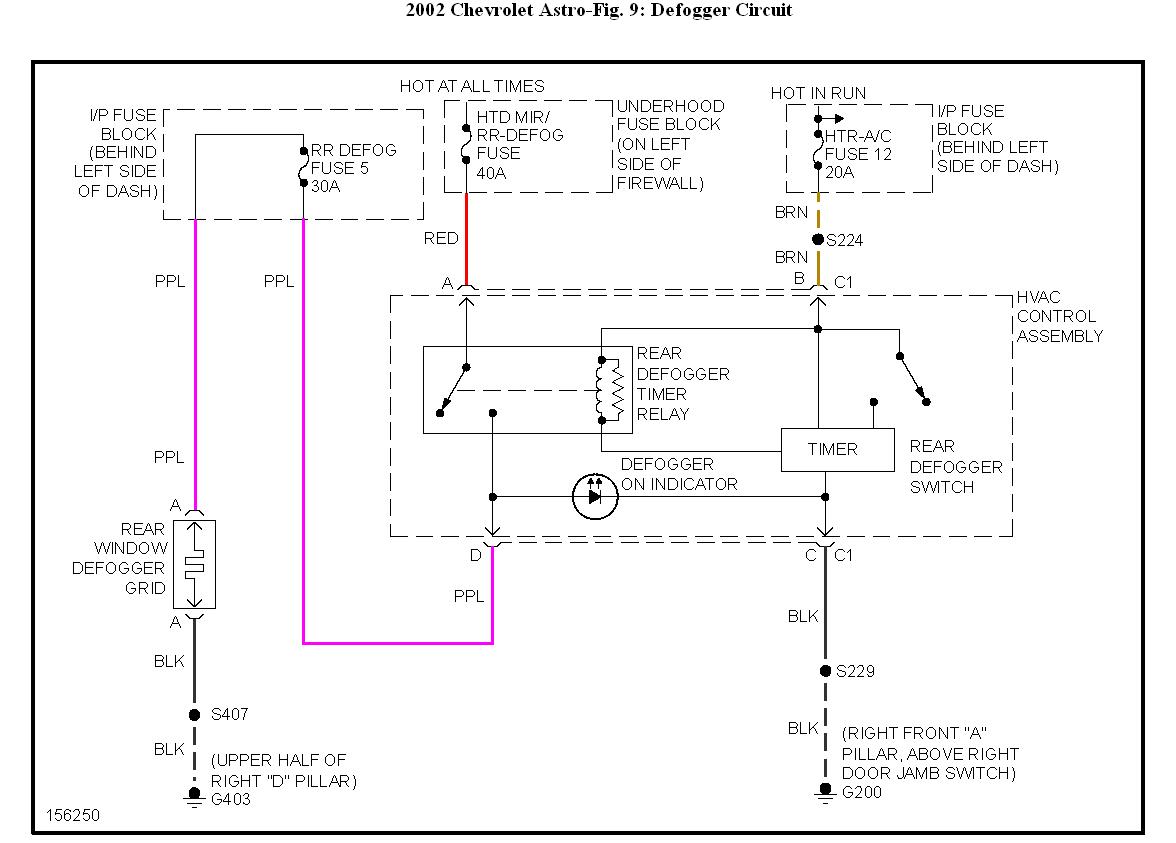

The schematic shows all the omponents related to the defoger. Get a test lamp to check for power supply to RR Defoger fuse when turned on.
For electrical faults, you need a test lamp or DVOM to test for power supply.
The schematic shows all the omponents related to the defoger. Get a test lamp to check for power supply to RR Defoger fuse when turned on.
Image (Click to enlarge)
Dec 31, 2010 at 5:44 PM
