Where is the flasher relay located I need to replace it?
Nov 2, 2012 at 7:54 PM
Turn Signal flasher relay location
2002 CADILLAC ESCALADE EXT
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement

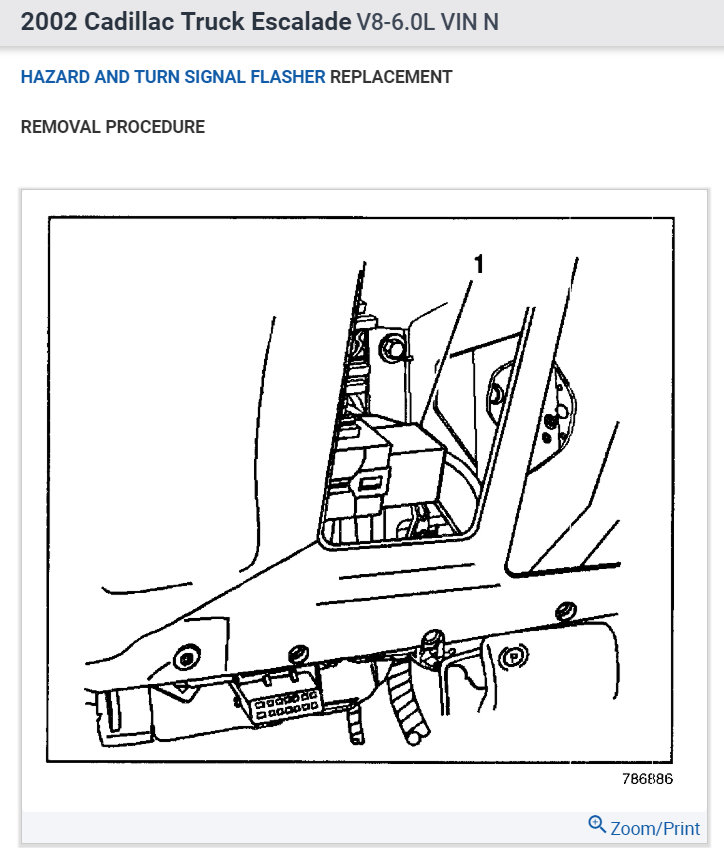

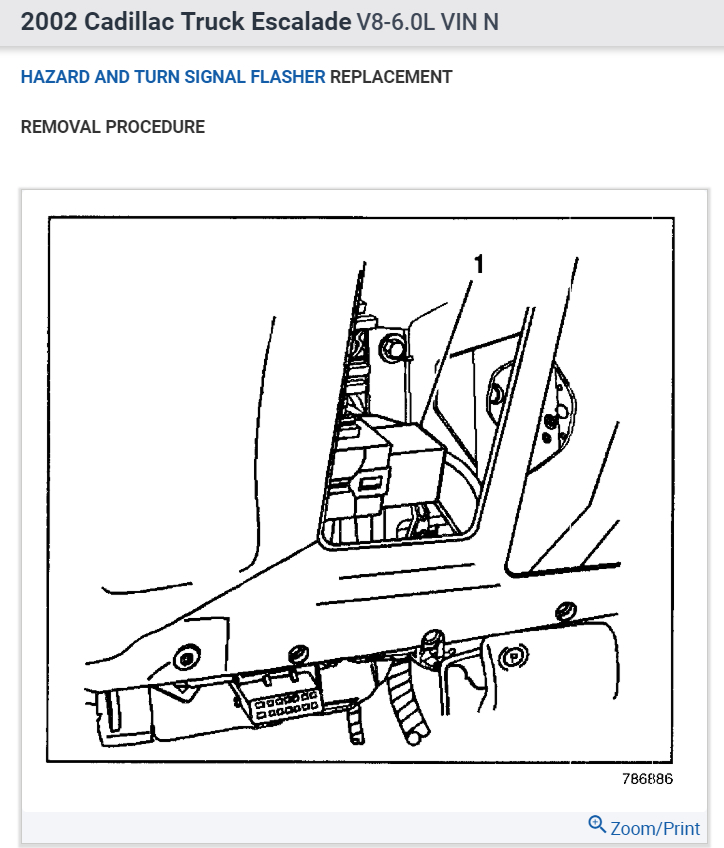

Under the left side of the dash here is the location with a diagram below.
1. Remove the knee bolster.
2. On the back side of the fuse block release the retainer while pulling the flasher (1) outwards.
3. Remove the flasher (1) from the fuse block.
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
1. Remove the knee bolster.
2. On the back side of the fuse block release the retainer while pulling the flasher (1) outwards.
3. Remove the flasher (1) from the fuse block.
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
