When the convertible top is lowered, all of the windows automatically lower also. They are raised with their individual switches.
Last time the top went down all of the windows went down with it as they should, now only the drivers window goes up. The passenger and rear windows don't move.

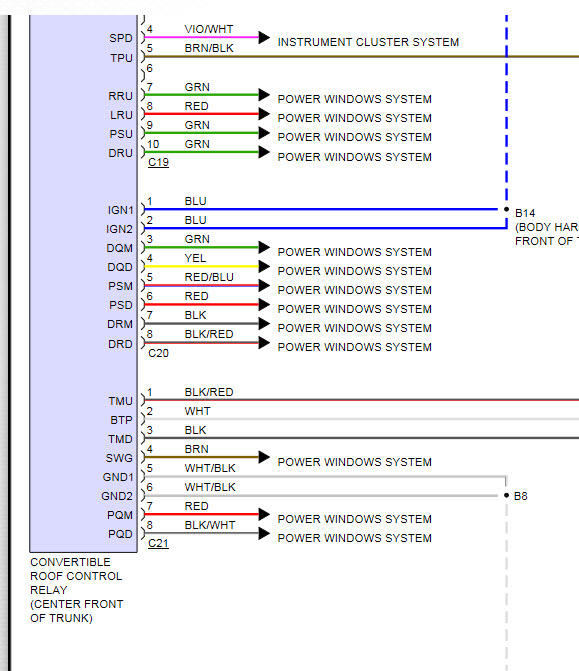

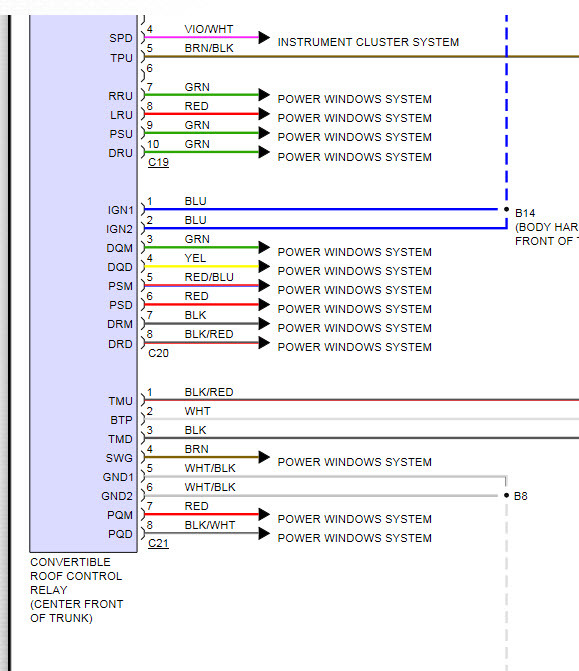

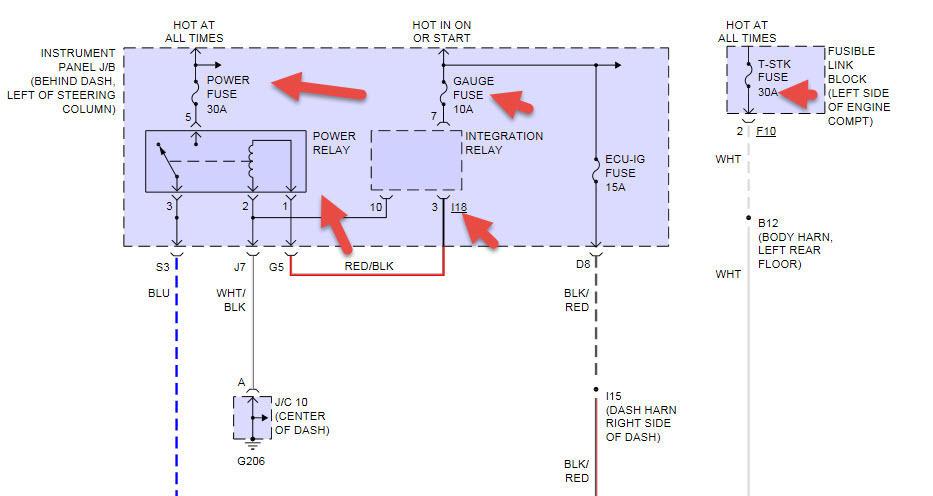

I don't think I had 3 window motors or regulators fail simultaneously. It is like there is a relay somewhere that disables the window switches so the windows can automatically lower with the top, but it never clicked back to enable the manual switches to work.
I cant explain why the drivers window still works. I think it is unlikely that these windows are on separate circuits.

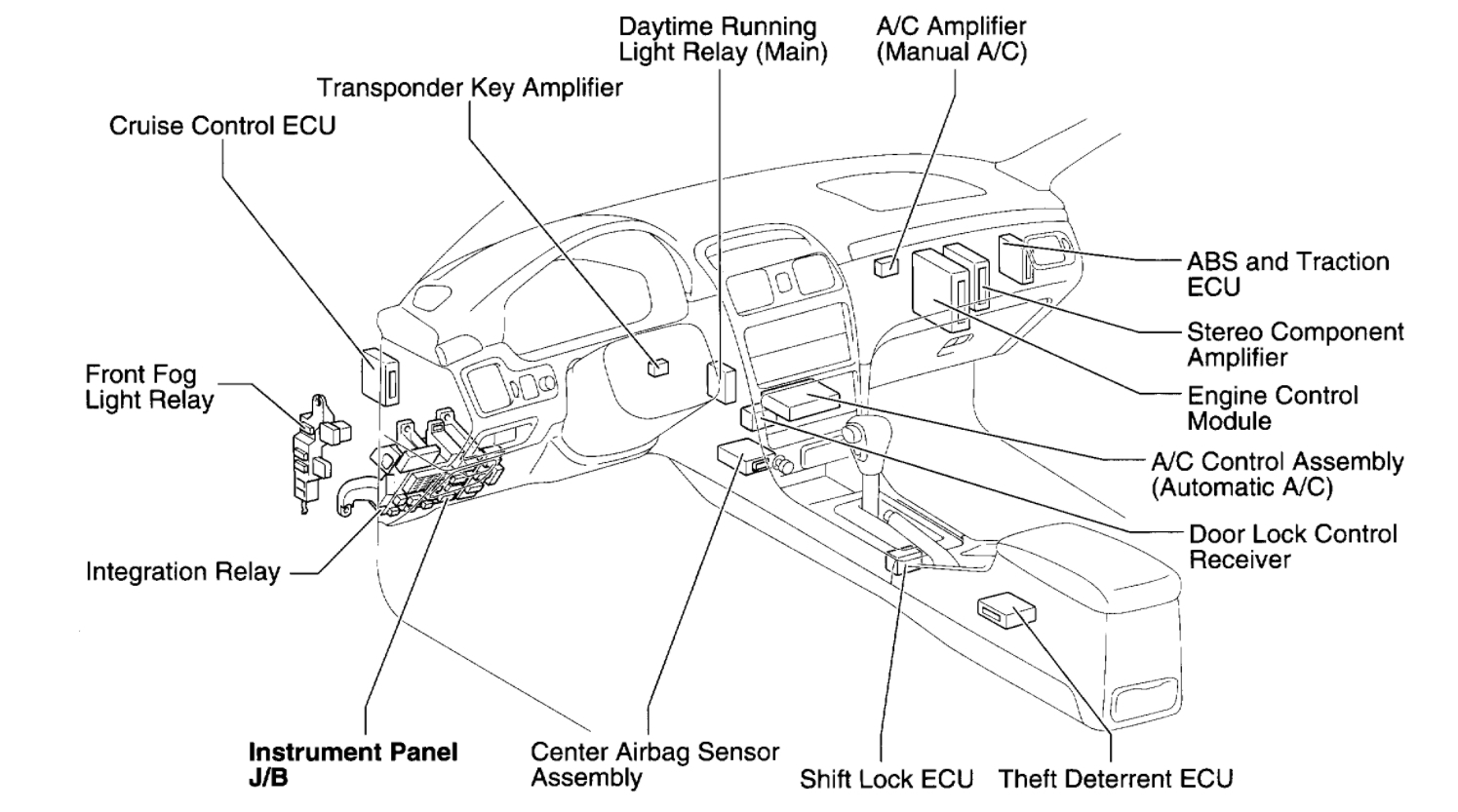

I am a former electrical engineer so a schematic with a circle around the usual suspect and its location in the car would work for me.
Last time the top went down all of the windows went down with it as they should, now only the drivers window goes up. The passenger and rear windows don't move.
I don't think I had 3 window motors or regulators fail simultaneously. It is like there is a relay somewhere that disables the window switches so the windows can automatically lower with the top, but it never clicked back to enable the manual switches to work.
I cant explain why the drivers window still works. I think it is unlikely that these windows are on separate circuits.
I am a former electrical engineer so a schematic with a circle around the usual suspect and its location in the car would work for me.
Jul 6, 2015 at 7:29 AM
