A/C problem

2001 TOYOTA CELICA
Avatar
TOYOTAGA
  • MEMBER
  • 1 POST
I have a 2001 Toyota Celica GT with the A/C not working. The compressor is not getting power to it. Is there a fuse or relay that needs to be checked and if so where is it?
May 19, 2011 at 6:14 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

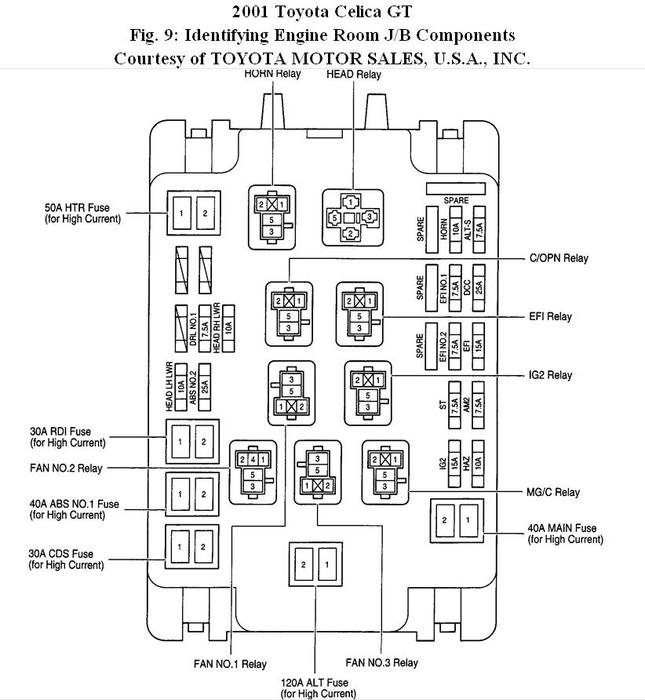

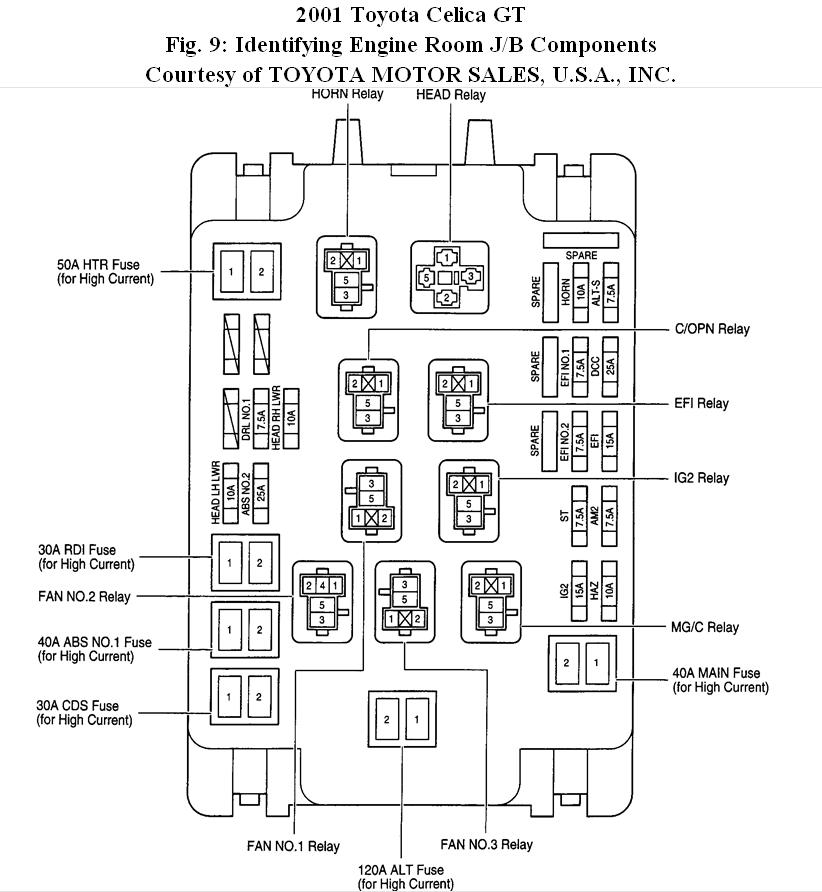

Check the compressor relay. It is called the magnetic clutch relay (MG/C Relay)

Image (Click to enlarge)
Attached Media
May 19, 2011 at 9:14 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
What happens is the system get low on Freon so it shuts down the system. Here is a few guides and fuse locations just in case.

https://www.2carpros.com/articles/air-conditioner-how-to-add-freon

and

https://www.2carpros.com/articles/how-to-check-a-car-fuse

and

https://www.2carpros.com/articles/car-air-conditioner-not-working-or-is-weak

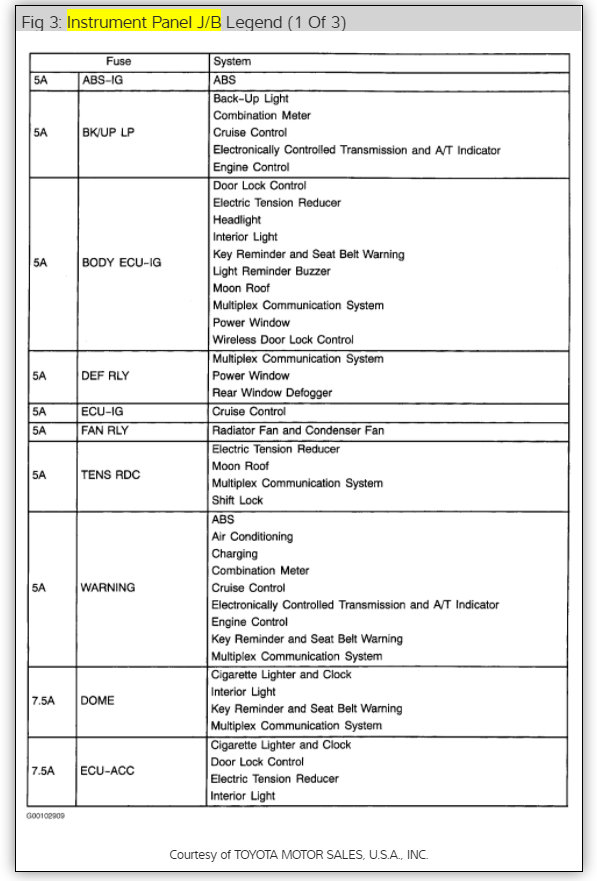

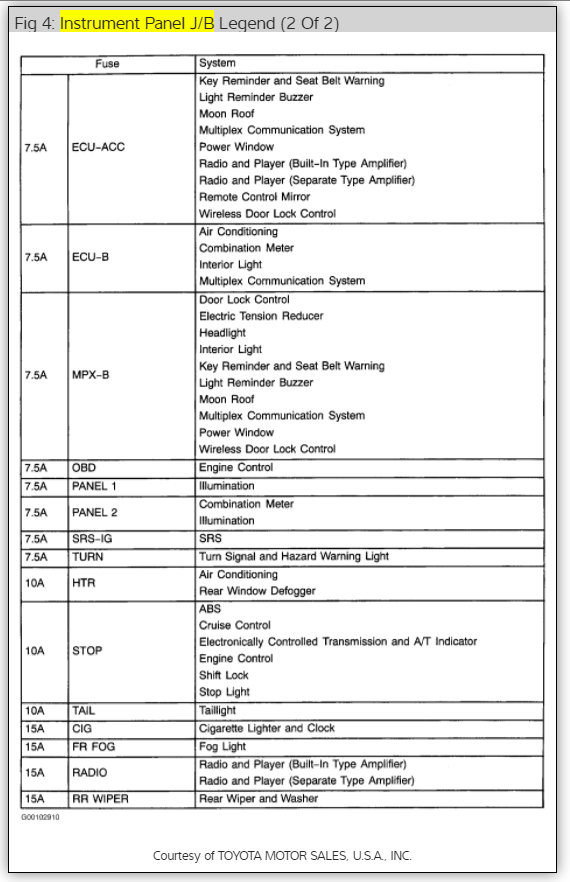

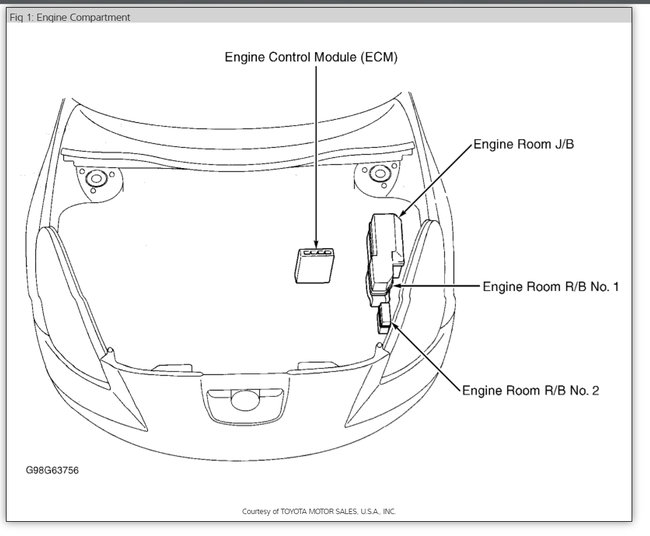

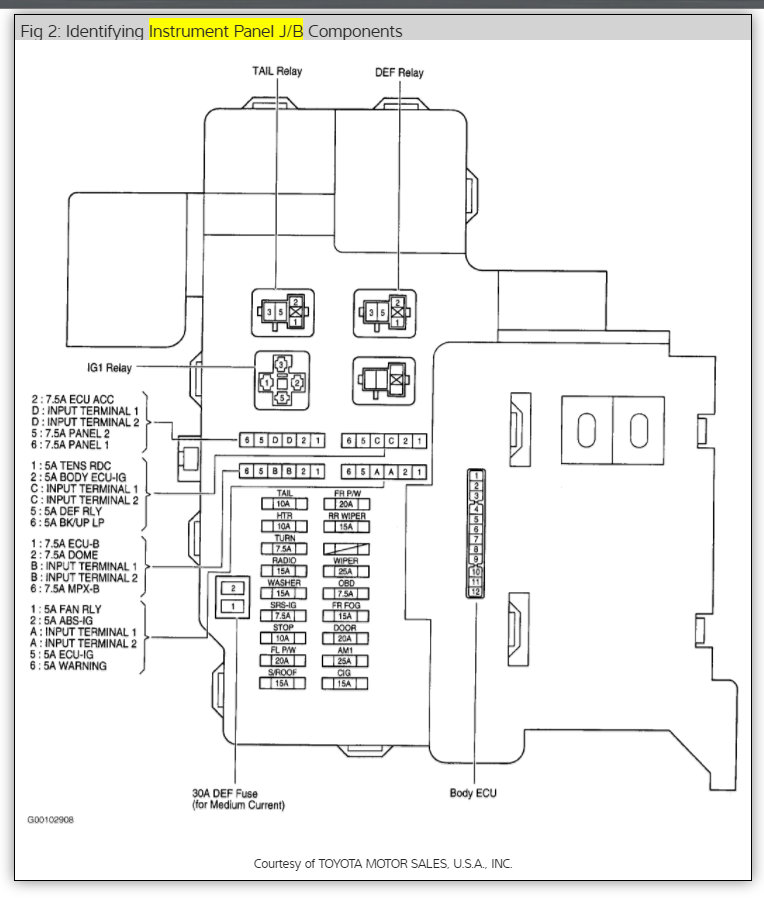

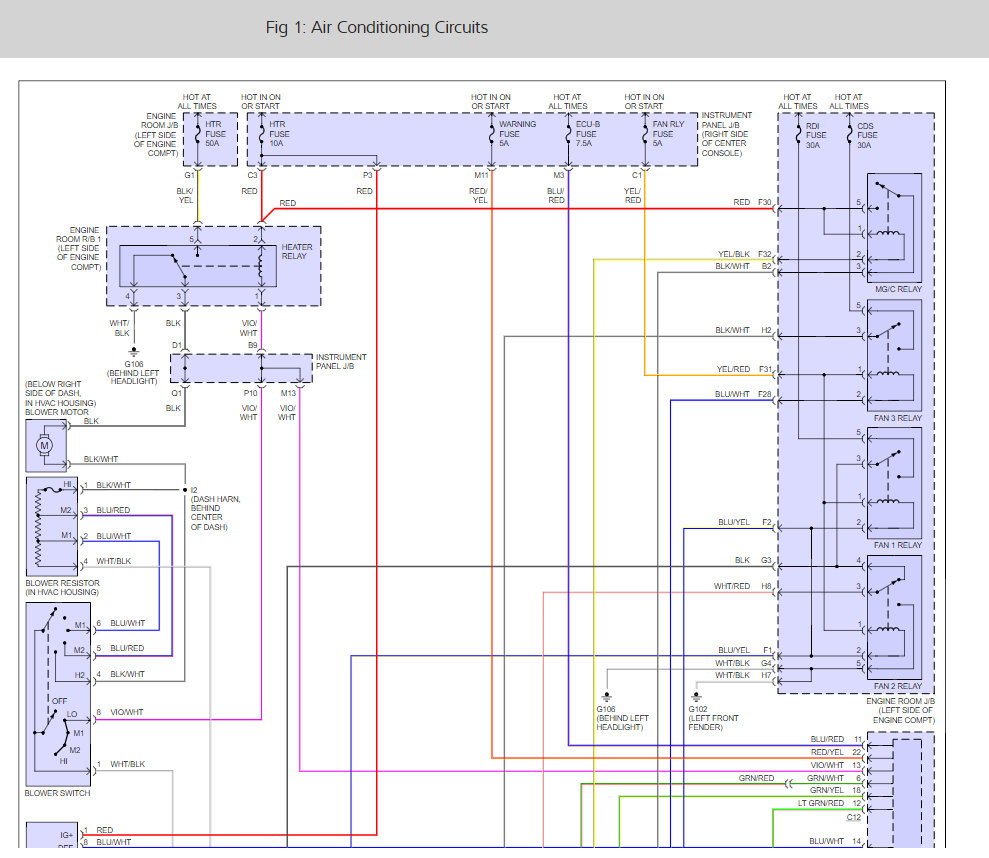

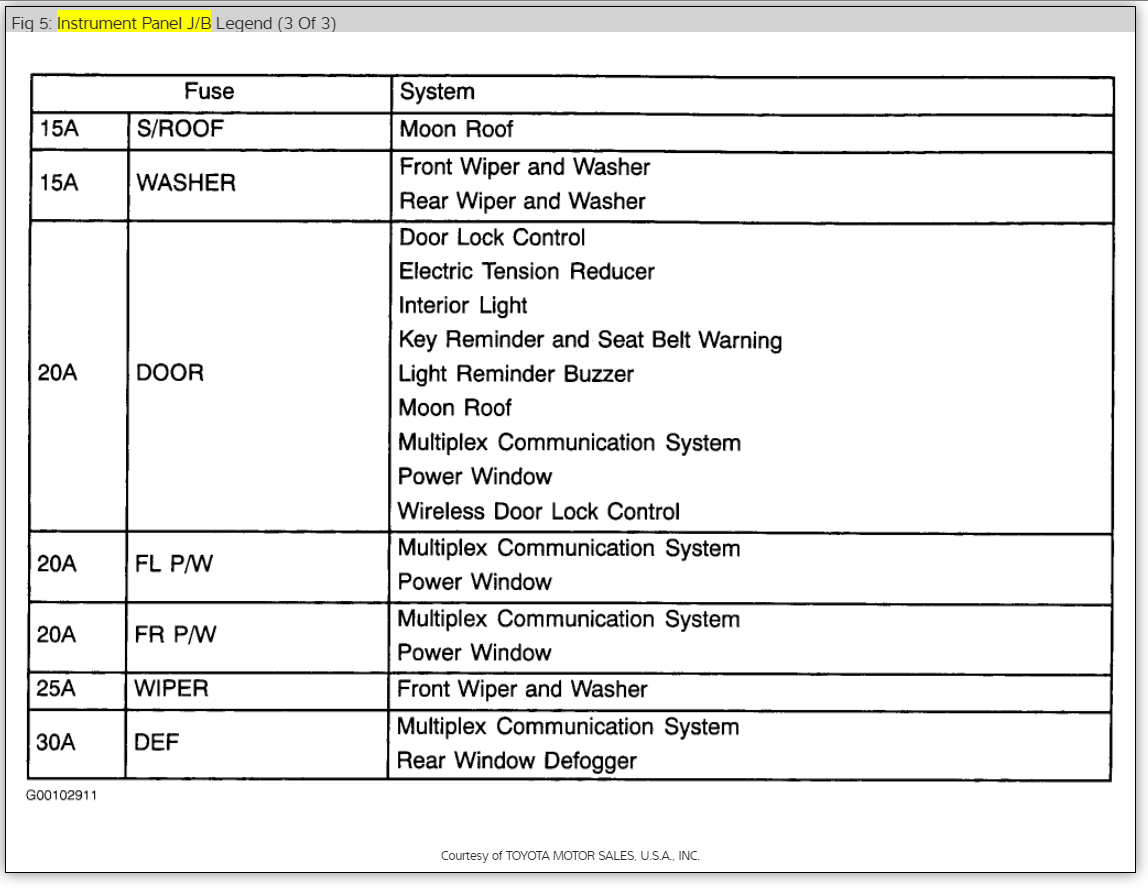

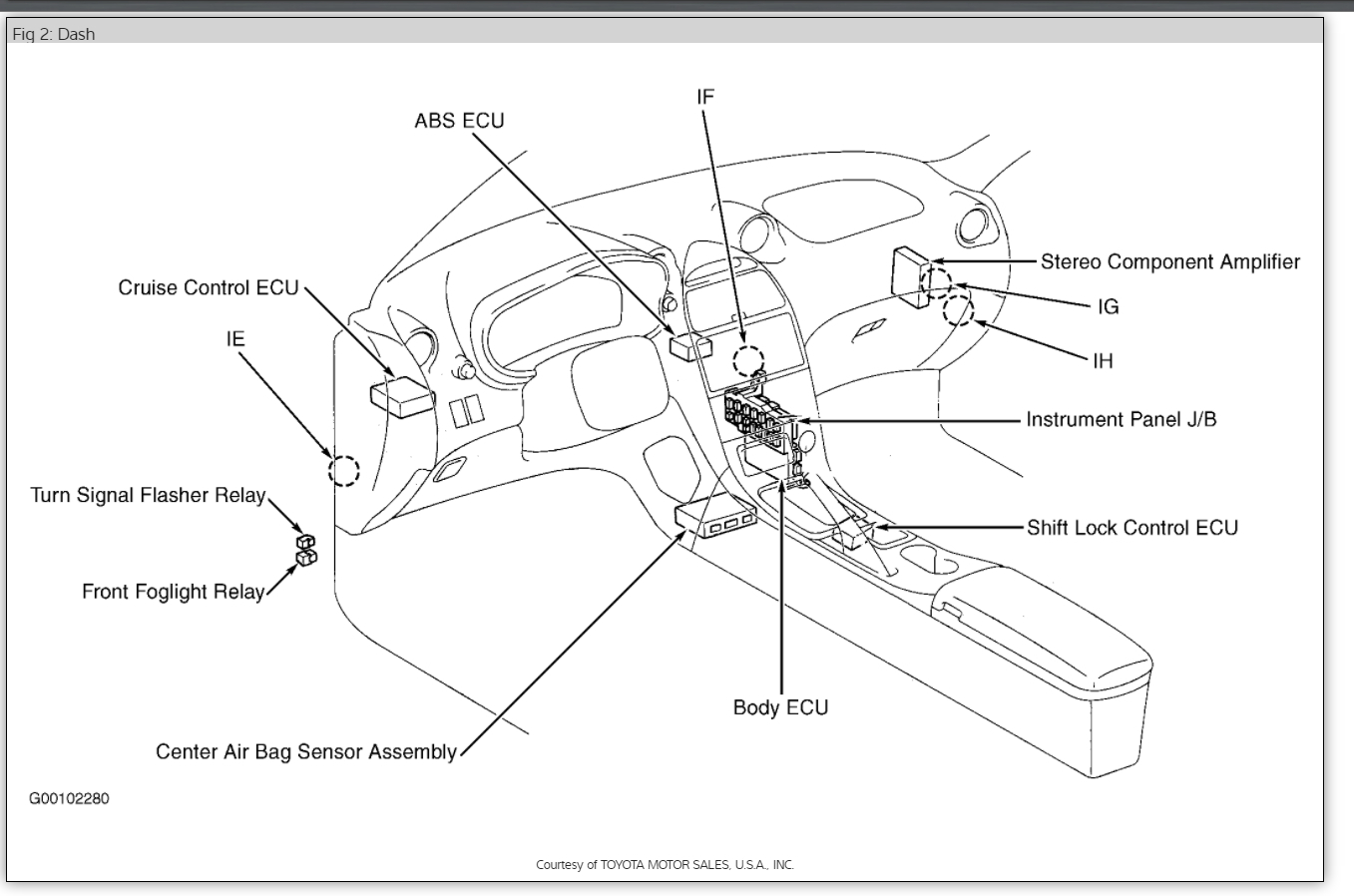

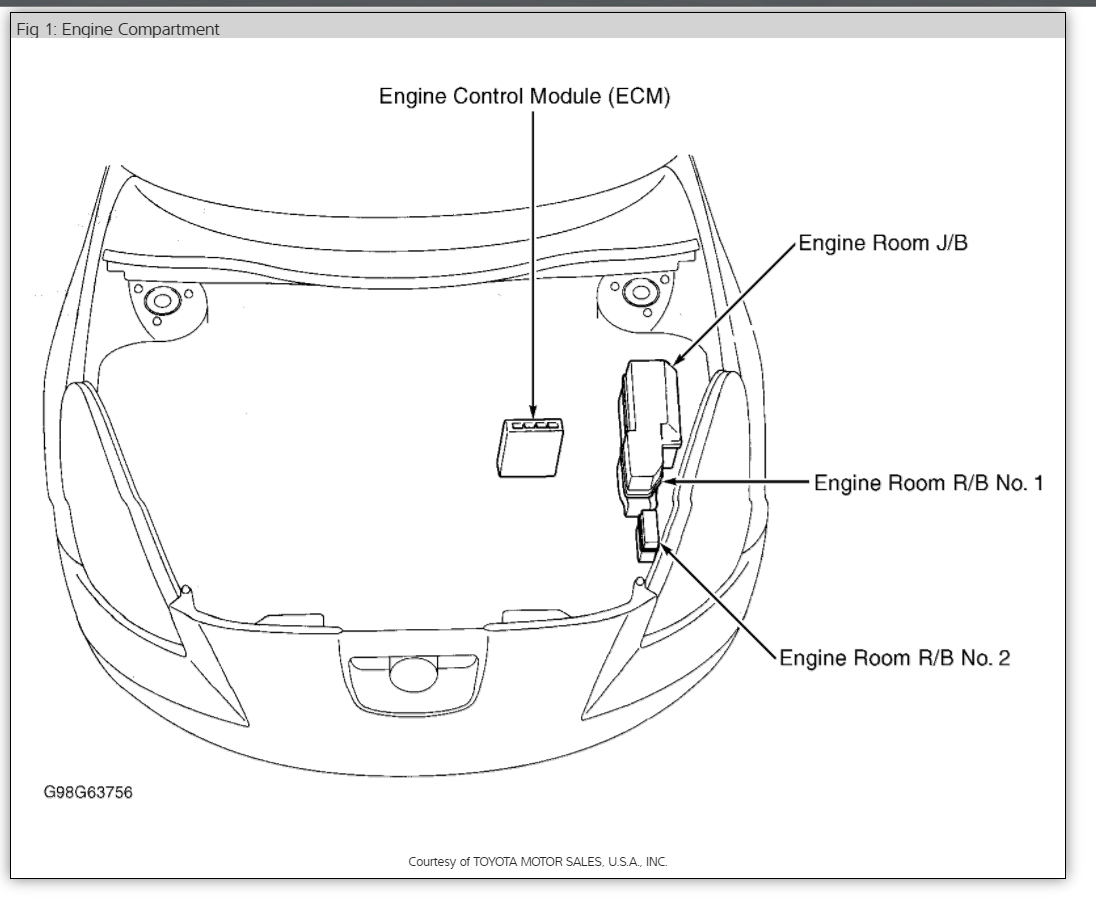

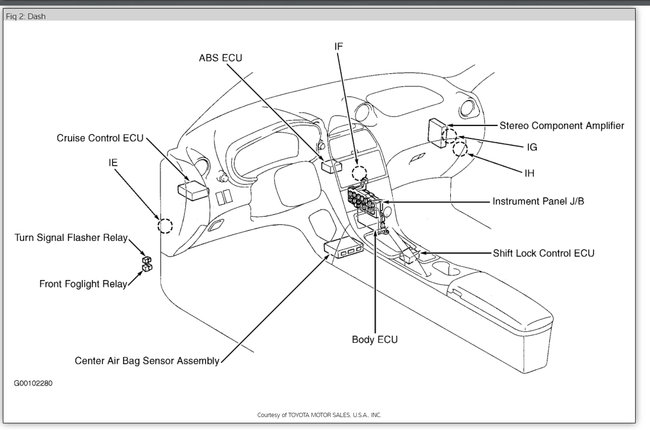

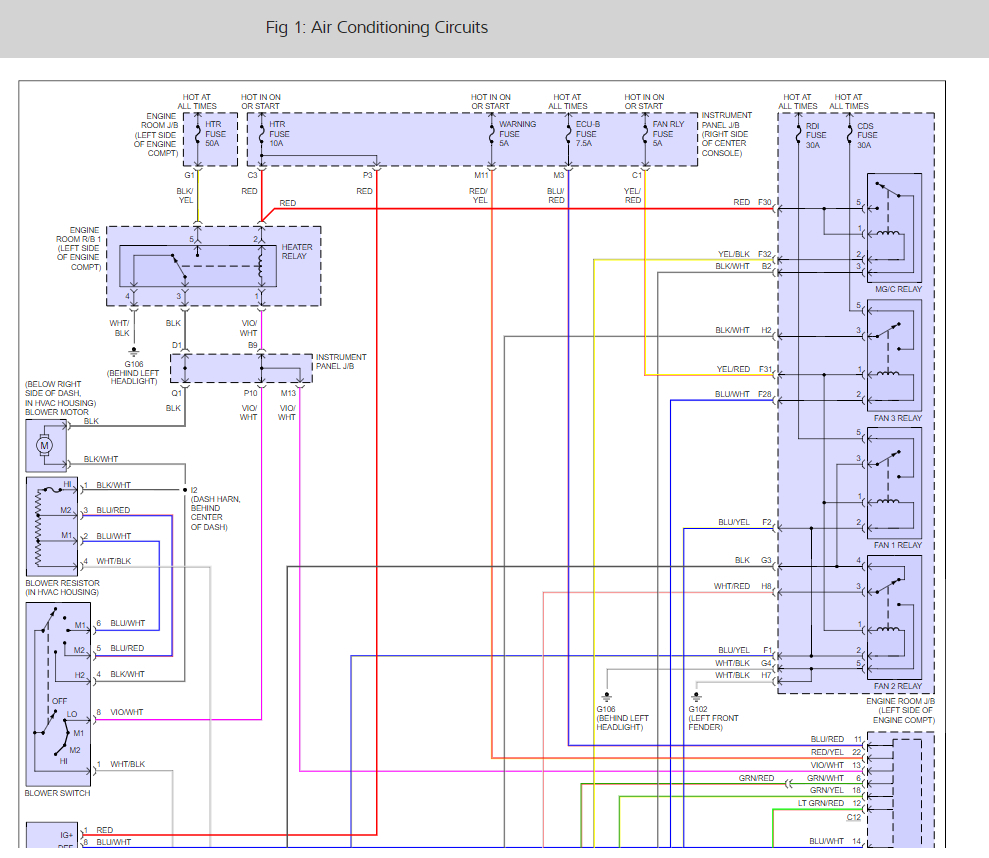

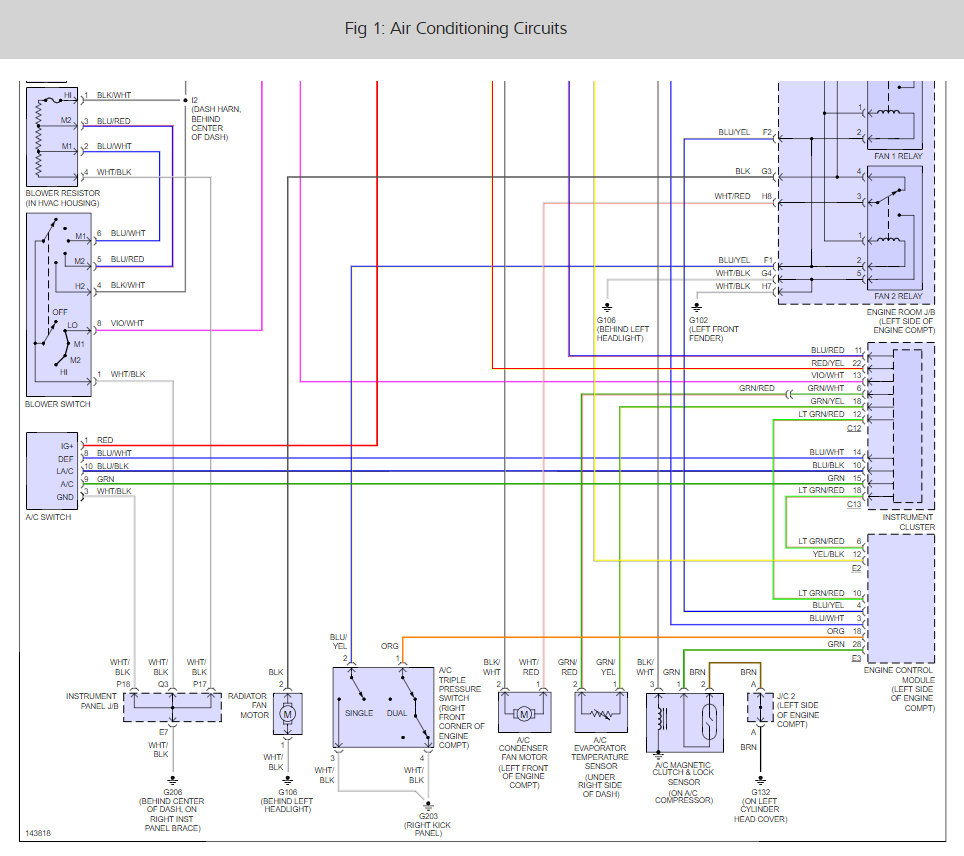

Check out the diagrams (below)

Please let us know what happens so it will help others.

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Oct 6, 2017 at 8:45 PM
