headlights and interior lights flicker and loses power

2001 TOYOTA CAMRY

103,600 MILES • 6 CYL • AUTOMATIC

BOOBALABA

MEMBER
1 POST
FOLLOW

The headlights and interior lights of my 2001 camry started to flicker while driving and sometimes loses the power to the radio, a/c and the lights shut off - the power comes back within few seconds. The flicker is not related to RPM speed - when the RPM's increase, the flickering remains the same - no change. The flickering is only present when the car is running This condition never goes away - doesn't matter if the car has been driven 50 miles - flicker still present.

I've replaced the battery a couple months ago with a Toyota battery from the dealer, but the flickering is still present sometimes - not always. Any help is really appreciated.

Dec 19, 2010 at 4:17 PM

V MRAUDER

MEMBER
1 POST

I have a 2001 Camry V6 and all my lights started flickering and is more pronounced whil driving. I checked the altenator at the advice from a friend and found that the voltage was fluctuating approximately 1.5 volts and increased when I raised the engine rpm. I checked voltage at the alt positive to battery ground. I replaced the alt and still the same. I had Toyota check it for me and was told that the altenator is causing the issue. I will be returning it to Auto Zone for an exchange in the next few days.

I also would like any sound advice

Feb 11, 2011 at 12:55 AM

STRAILER

CERTIFIED EXPERT
53,855 POSTS

Hello,

These voltage fluctuations can usually due to a bad engine to frame ground. Check to make sure there is a ground strap going to the engine from the frame. Also check the battery cables for corrosion which causes high resistance.

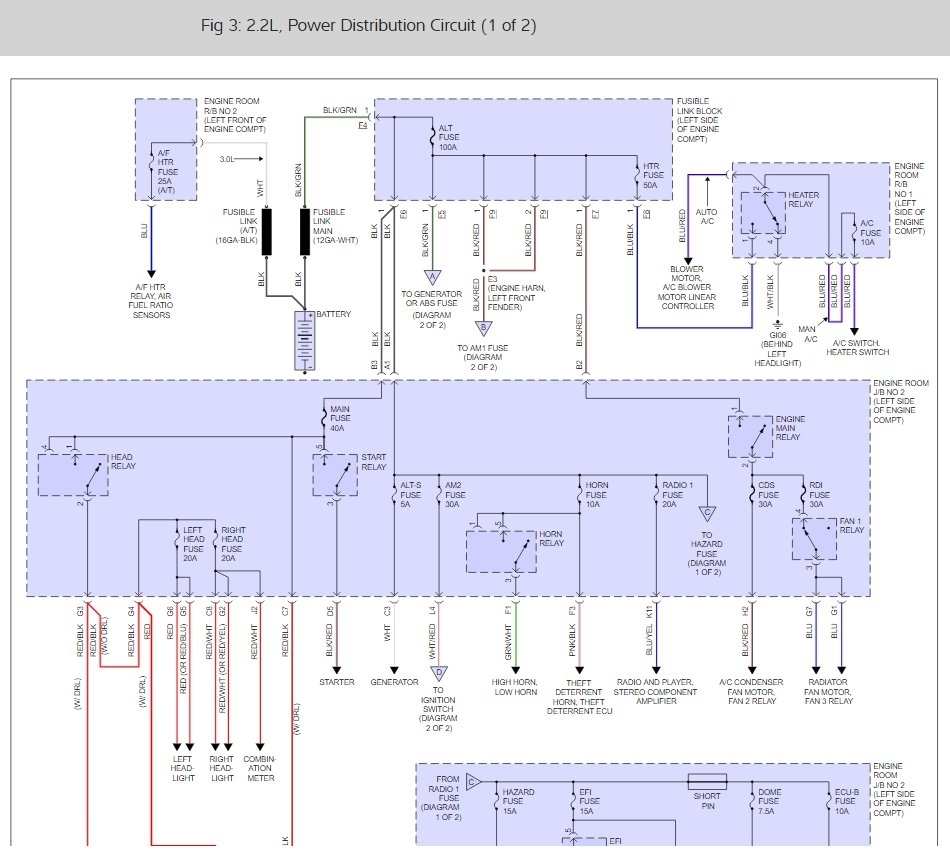

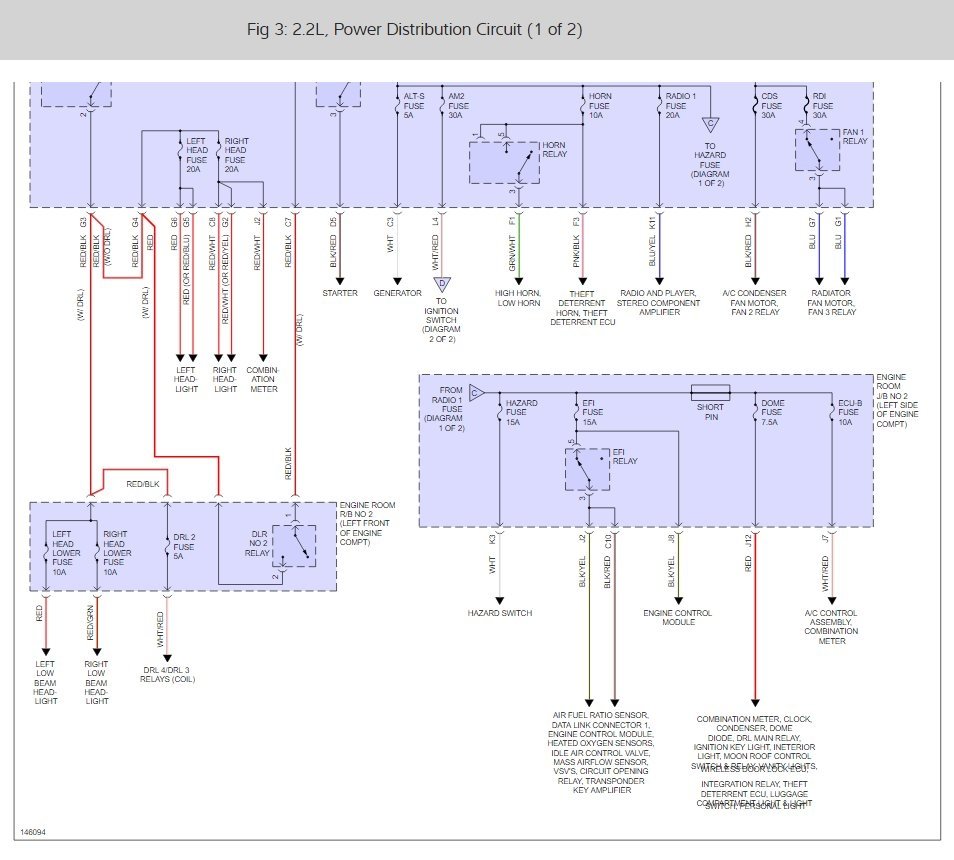

I have found the wiring diagrams for your car so you can run some tests with the help of the guide below.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

Please run some tests and get back to us so we can continue helping you.

Cheers, Ken

Images (Click to enlarge)

Jun 23, 2017 at 12:29 PM
