2001 Suzuki Other Transmission oil change/topup

2001 SUZUKI
25,000 MILES • 1.6L • 4WD • MANUAL
Avatar
POB1976
  • MEMBER
  • 2 POSTS
Hi, I have a 2001 Suzuki Grand Vitara 1.6 16v, and when I put it into reverse it crunches very badly. I can't find where I can top up the transmission oil or change it. Can someone help? Thanks.
Aug 1, 2014 at 6:06 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

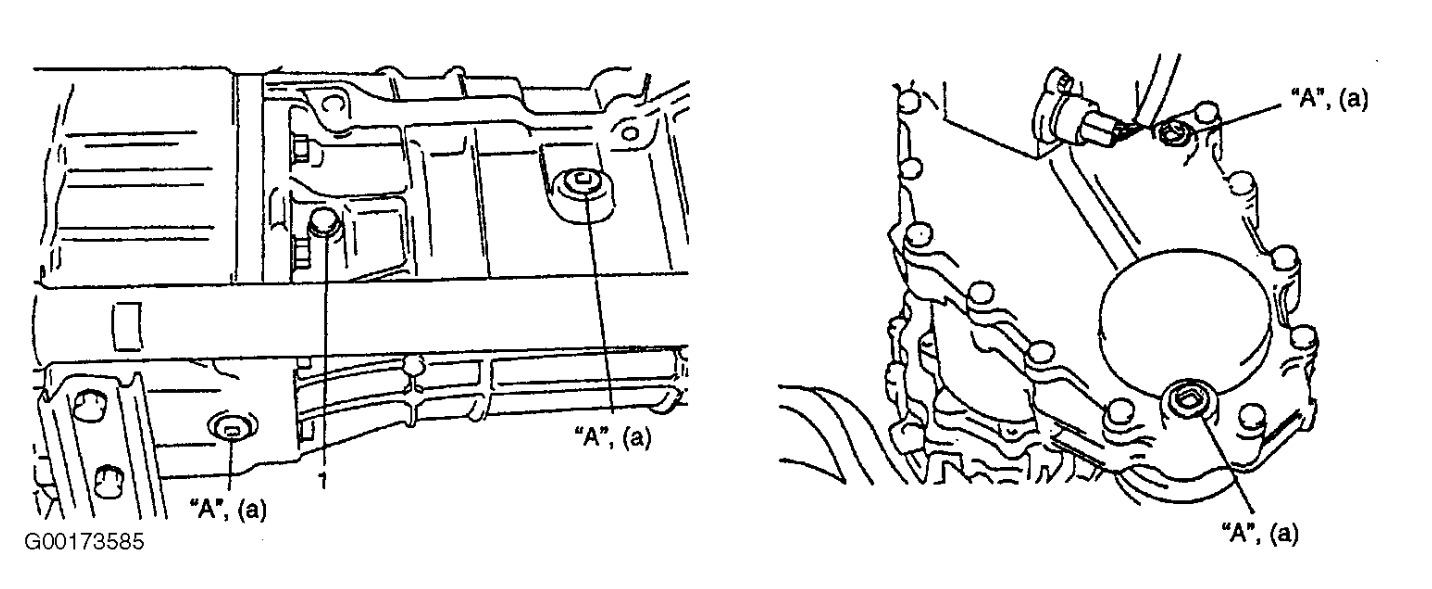

see pic
Image (Click to enlarge)
Attached Media
Aug 1, 2014 at 6:46 AM
Avatar
POB1976
  • MEMBER
  • 2 POSTS
Hi, thank you very much for your reply, I've had a look at the engine and I'm struggling to find the area as per picture, hope you can advise, kindest regards.
Aug 1, 2014 at 7:03 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
if t's front wheel drive look on rear of transmission if rear wheel drive look on lh side under car
Aug 1, 2014 at 7:07 AM
