where is fuel filter located
Nov 10, 2012 at 3:23 PM
2001 SUZUKI ESTEEM
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Fuel filter is installed in fuel pump assembly. Replace fuel filter with new one periodically.
WARNING: This work must be performed in a well ventilated area and away from any open flames (such as gas hot water heaters).
This guide will help us
https://www.2carpros.com/articles/how-to-change-a-fuel-filter

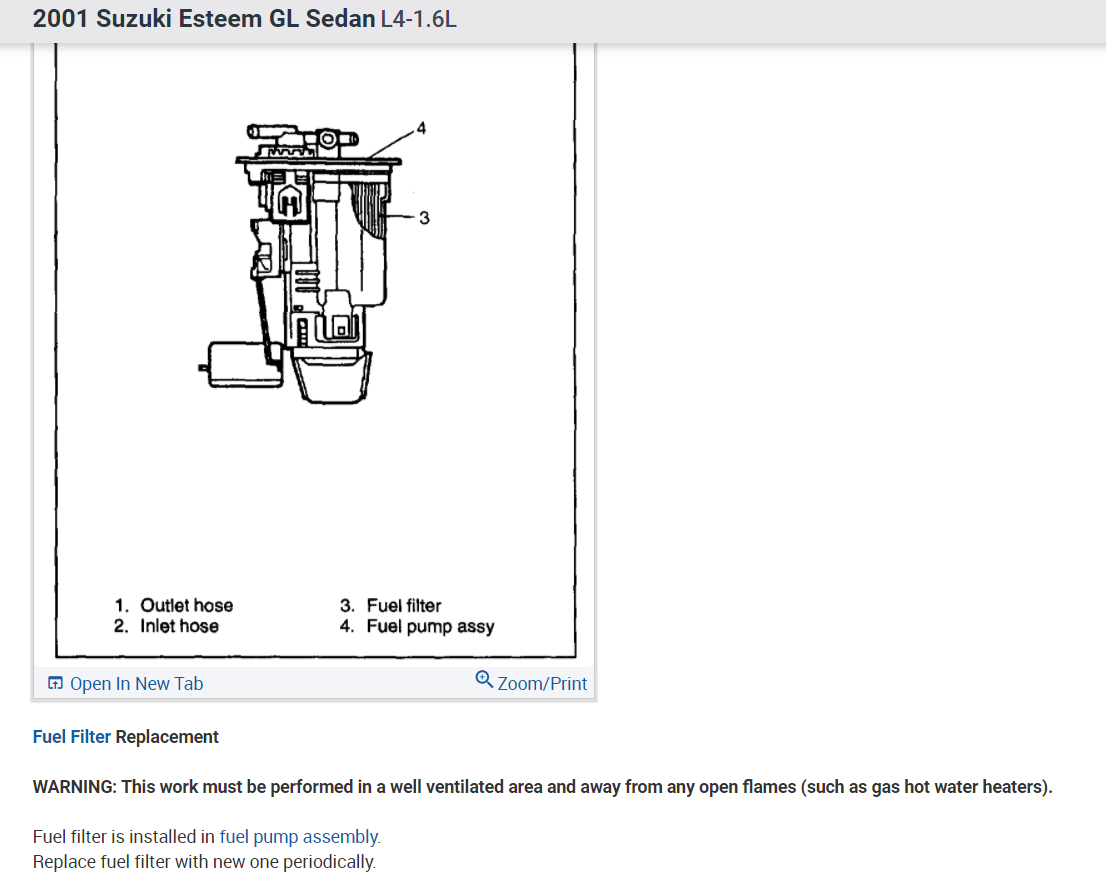

Check out the diagrams (Below). Please let us know what happens.
WARNING: This work must be performed in a well ventilated area and away from any open flames (such as gas hot water heaters).
This guide will help us
https://www.2carpros.com/articles/how-to-change-a-fuel-filter
Check out the diagrams (Below). Please let us know what happens.
Image (Click to enlarge)
Nov 10, 2012 at 6:17 PM
were is the fuel filter located on a 2000 suzuki esteem 1.6l
Jun 8, 2020 at 11:55 AM
(Merged)
Advertisement
REMOVAL
Relieve fuel pressure in fuel feed line.
Disconnect negative cable at battery.
Place fuel container under fuel filter.
Disconnect inlet and outlet hoses from fuel filter.
WARNING: A small amount of fuel may be released after fuel hose is disconnected. In order to reduce the chance of personal injury, cover hose and pipe to be disconnected with a shop cloth. Be sure to put that cloth in an approved container when disconnection is completed.
Remove fuel filter.
Remove bracket from fuel filter.
Relieve fuel pressure in fuel feed line.
Disconnect negative cable at battery.
Place fuel container under fuel filter.
Disconnect inlet and outlet hoses from fuel filter.
WARNING: A small amount of fuel may be released after fuel hose is disconnected. In order to reduce the chance of personal injury, cover hose and pipe to be disconnected with a shop cloth. Be sure to put that cloth in an approved container when disconnection is completed.
Remove fuel filter.
Remove bracket from fuel filter.
Image (Click to enlarge)
