both headlights not working?

2001 NISSAN MAXIMA
210,000 MILES
Avatar
TAUSER11
  • MEMBER
  • 1 POST
Both headlights have stopped working. Noticed i didn't have any high beams a while back and now the low beans don't work either. I checked the fuses and the bulbs, they are both okay. Any ideas what the problem is?
Oct 20, 2012 at 11:10 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
If both the R/L headlight relays are good the problem is coming from the smart entrance control unit behind center of dash.

Image (Click to enlarge)
Attached Media
Oct 20, 2012 at 11:25 PM
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello, I'm Danny,

You might be having a problem with the headlight relay. It is located in the relay box which is under hood on the right side of the engine compartment. Here is a tutorial showing how to test relays:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

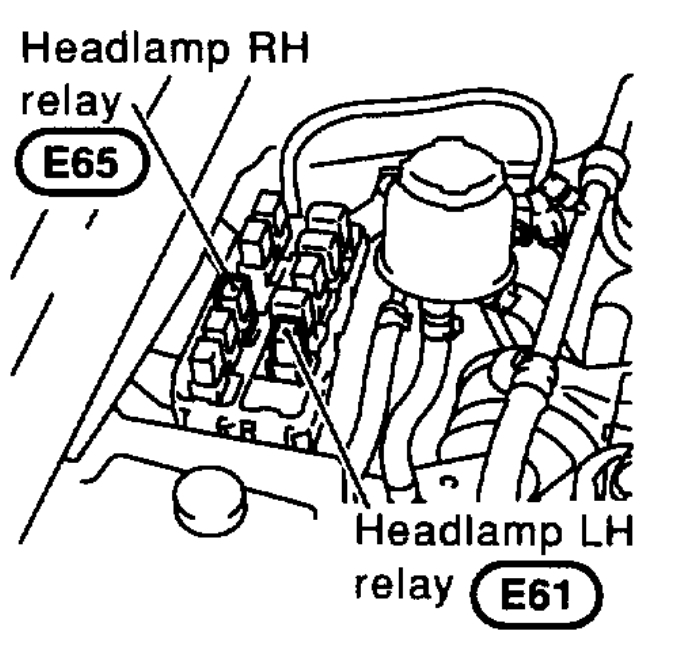

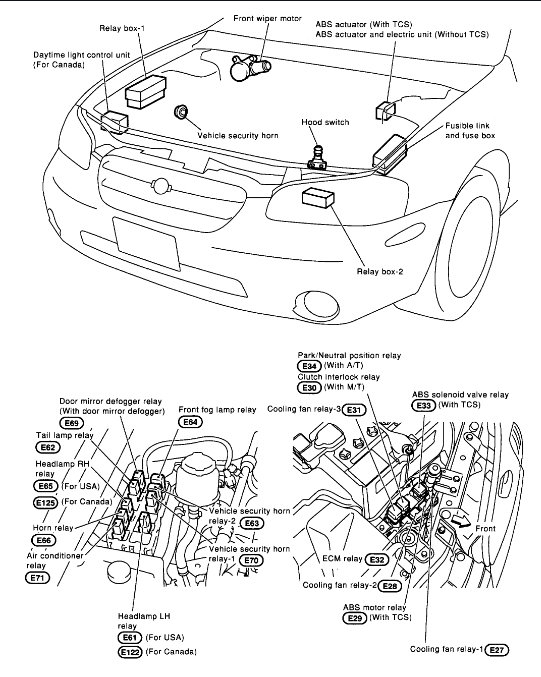

I've attached 2 pictures below of where the relay is located on your car. Hope this helps and thanks for using 2CarPros.
Images (Click to enlarge)
Attached Media
Attached Media
Nov 27, 2020 at 6:46 PM
