Engine Mechanical problem
2001 Mitsubishi Mirage 4 cyl Front Wheel Drive Automatic

How to set the timing on this car.Is there a diagram that i could see how to set the timing fo this 01 mitsubishi mirage Ls 1.8 four cyclinder engine.
Apr 25, 2010 at 2:18 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
Hi there, Timing set up as per pic..


https://www.2carpros.com/forum/automotive_pictures/61395_mirage_1.jpg

mark (mhpautos)
Apr 25, 2010 at 5:26 AM
Avatar
BCMULLEN95
  • MEMBER
  • 249 POSTS

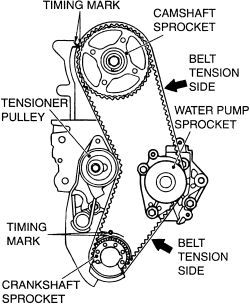

Do you have the diagram for an 01 Mirage ES 1.8L 4cyl that water pump runs off of the timing. Thanks I have been using this diagram, because it resemble the timing set up I have. Is this the correct one?
Image (Click to enlarge)
Attached Media
Aug 29, 2011 at 5:30 AM
