need to know how to remove left side valve cover
Feb 13, 2014 at 1:51 PM
2001 Lincoln Town Car valve cover
2001 LINCOLN TOWN CAR
MAMALUC
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Disconnect negative battery cable. Remove air cleaner outlet tube. Release fuel system pressure. See FUEL PRESSURE RELEASE & FUEL LINE CONNECTION.
Raise and support vehicle. Remove oil filter. Disconnect power steering pump and oil pressure sender wiring harness connectors. Lower vehicle. Disconnect Cylinder Head Temperature (CHT) sensor jumper wire connector.
Disconnect camshaft position sensor. Disconnect fuel charging wiring electrical connectors from ignition coils and fuel injectors. Remove windshield wiper assembly. Disconnect 42-pin connector, 16-pin connector and transmission harness connector. See Fig. 2. Remove ignition wires from spark plugs. Remove PCV valve. Remove bolts and studs from valve cover. Remove valve cover.
Raise and support vehicle. Remove oil filter. Disconnect power steering pump and oil pressure sender wiring harness connectors. Lower vehicle. Disconnect Cylinder Head Temperature (CHT) sensor jumper wire connector.
Disconnect camshaft position sensor. Disconnect fuel charging wiring electrical connectors from ignition coils and fuel injectors. Remove windshield wiper assembly. Disconnect 42-pin connector, 16-pin connector and transmission harness connector. See Fig. 2. Remove ignition wires from spark plugs. Remove PCV valve. Remove bolts and studs from valve cover. Remove valve cover.

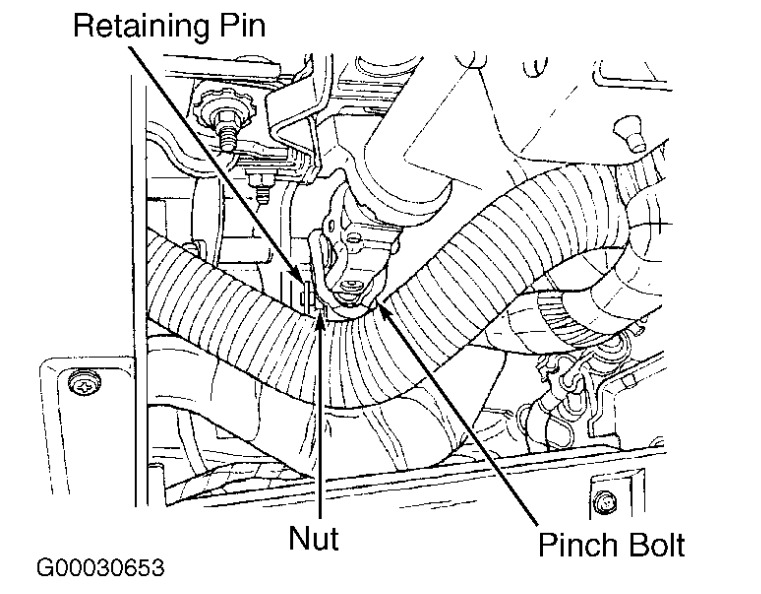

Image (Click to enlarge)
Feb 14, 2014 at 7:46 AM
