I am trying to locate the orifice tube filter, if there is one.

2001 LINCOLN CONTINENTAL
Avatar
DLMARTIN
  • MEMBER
  • 2 POSTS
I have removed the windshield washer reservoir and power steering pump, etc to get to the high pressure line underneath, but can't see where the orifice filter in located.
Aug 29, 2011 at 7:49 PM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
Either replace liquid line or install kit see diagrams below. This guide will help out as well.

https://www.2carpros.com/articles/re-charge-an-air-conditioner-system

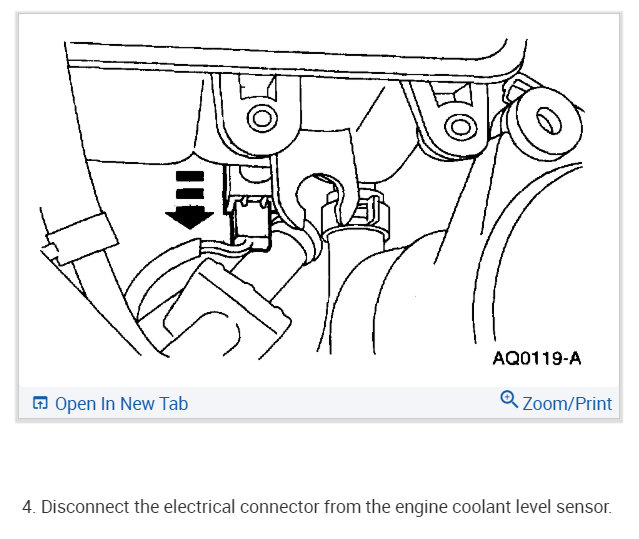

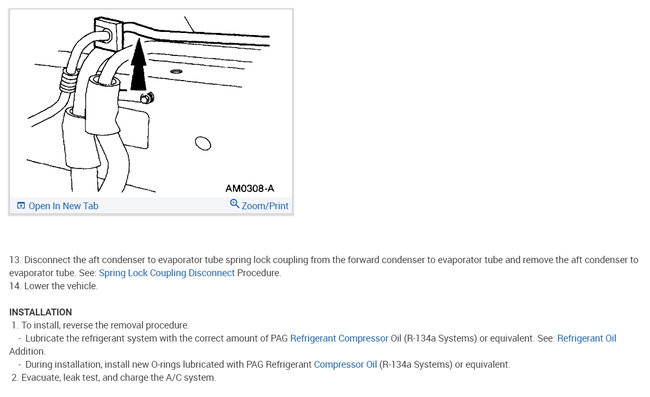

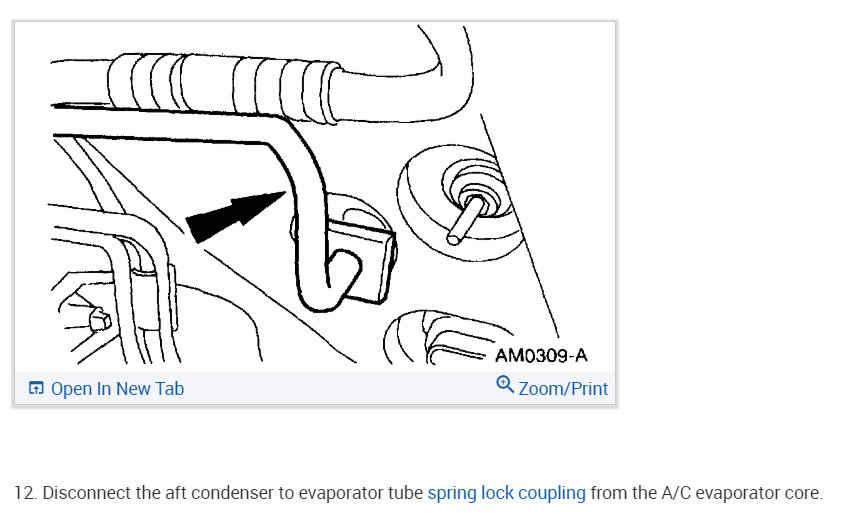

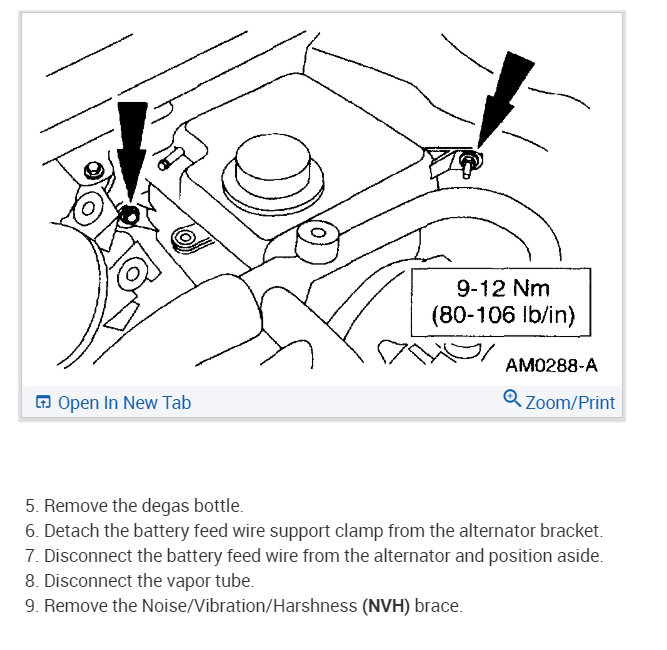

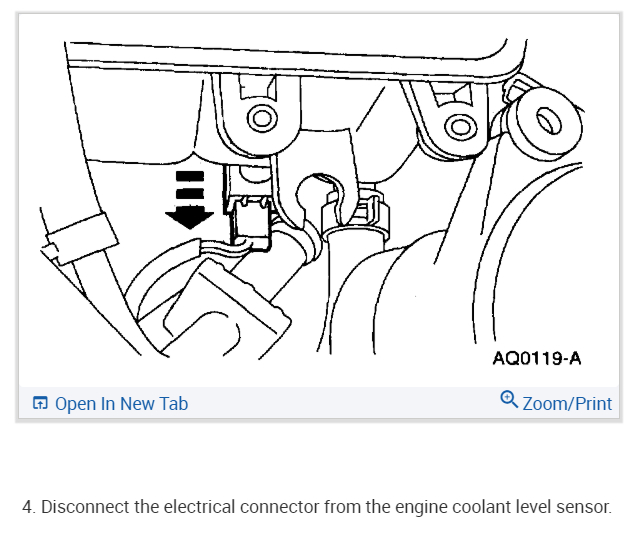

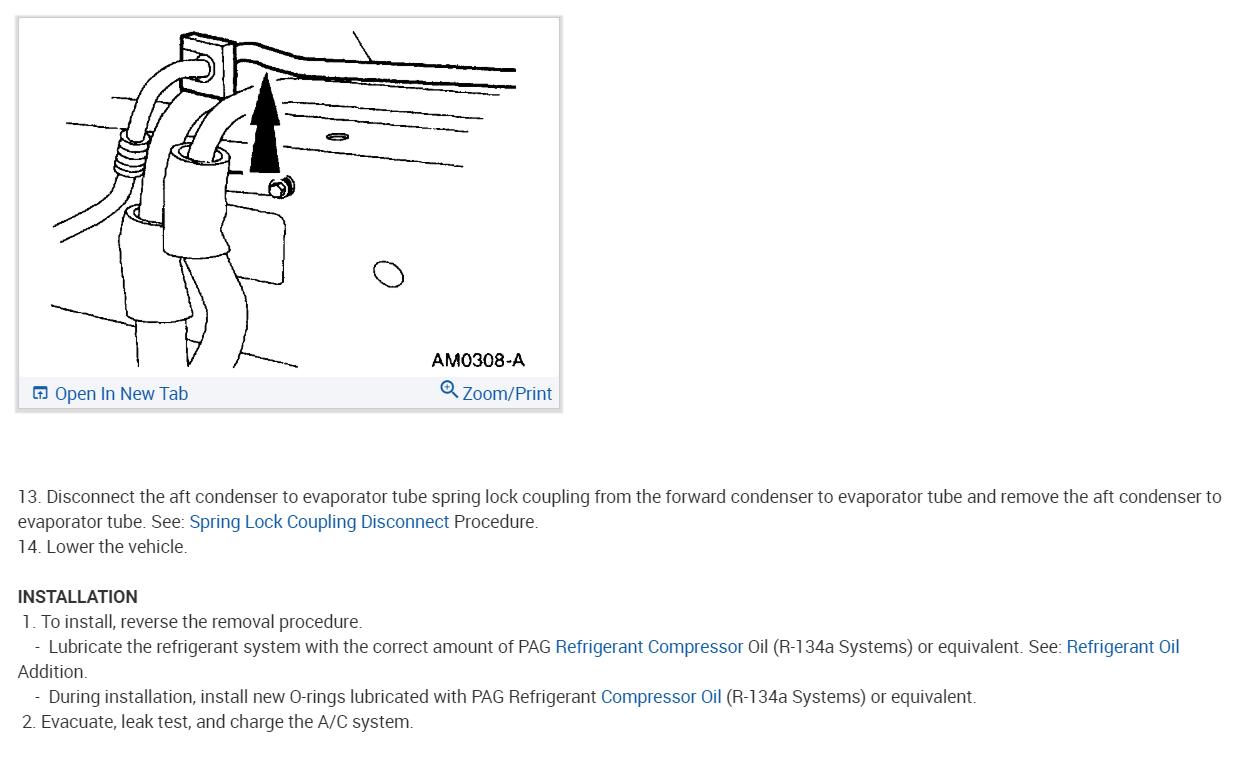

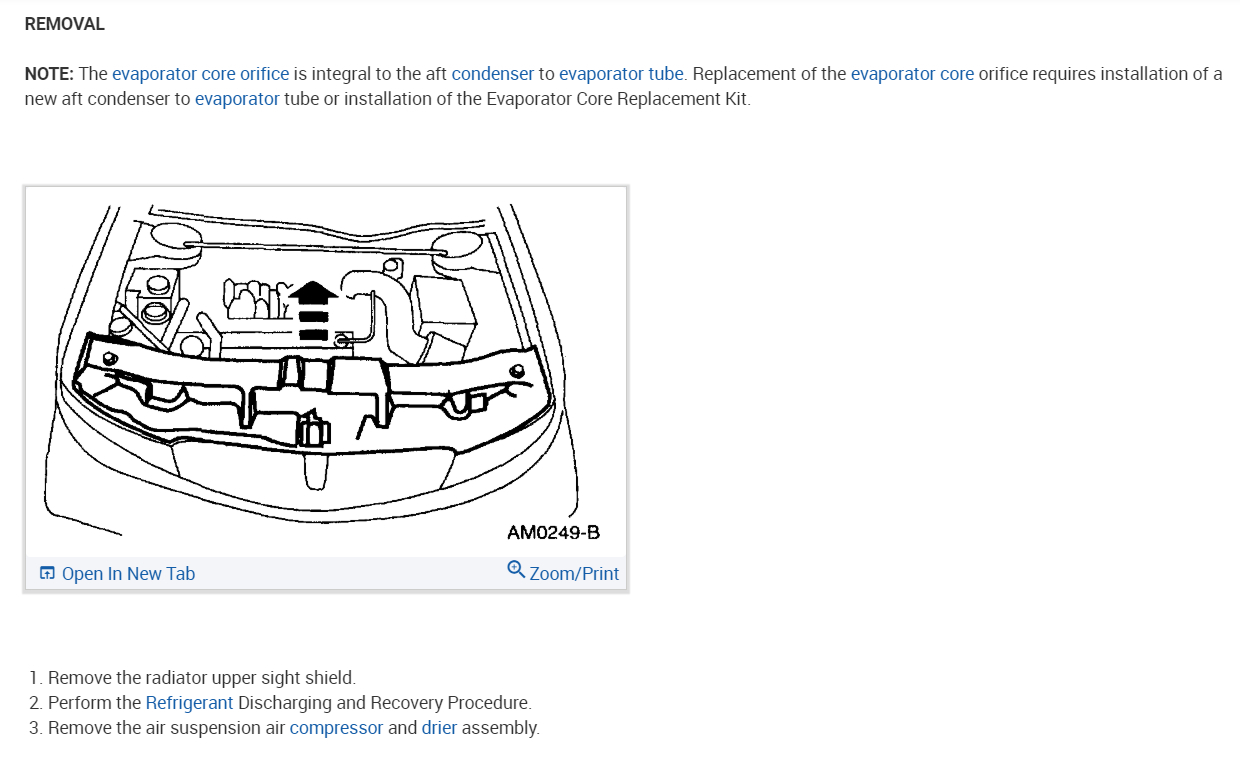

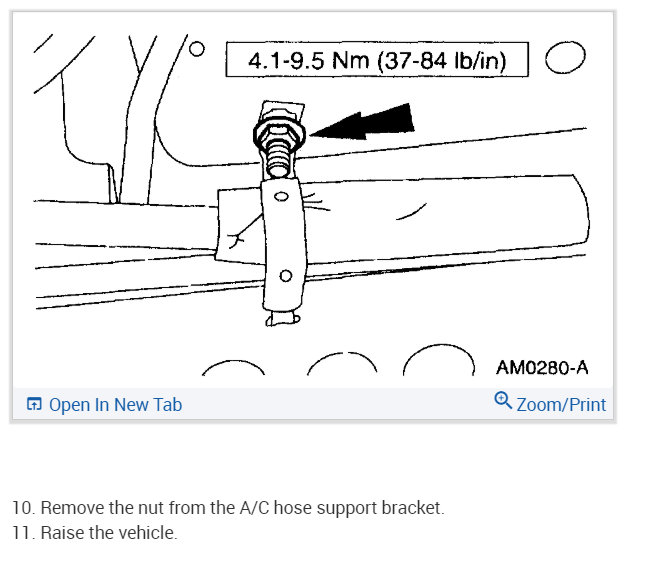

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Aug 29, 2011 at 8:01 PM
Avatar
DLMARTIN
  • MEMBER
  • 2 POSTS
Will the orifice filter be located close to the firewall or closer to the compressor?
Aug 29, 2011 at 9:21 PM
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS
Firewall close to EVAP inlet
Aug 30, 2011 at 2:28 PM
