2001 LEXUS LS 430
90,000 MILES
Avatar
JIMBARRETT
  • MEMBER
  • 3 POSTS
After installing new struts and mounts per Lexus manual, took car in for an alignment. They aligned it but the printout shows a cross sai of 8.1, should be between -.5 and .5. They said not to worry since the other numbers were o.k. Then I researched and learned about the arrows on strut mounts.I looked on the old ones and there they are. No where did the manual mention that or how to orientate them. If I mounted the new ones with the arrows in the wrong place, would that cause my sai numbers to be where they are? Should I redo and realign? Where should the arrows point?
Feb 14, 2013 at 3:06 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
I would recommend that you redo it and align the arrows the way it is recommended. You may experience premature tire wear.
Feb 14, 2013 at 3:13 AM
Avatar
JIMBARRETT
  • MEMBER
  • 3 POSTS
My question is If the arrows are wrong would that cause my sai numbers to be off , and second, I don't know where the arrows are suppose to point.
Feb 14, 2013 at 3:16 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
To the best of my knowledge, it can cause the sai to be off. As far as the arrows, if I remember correctly, they face forward.
Feb 14, 2013 at 3:26 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

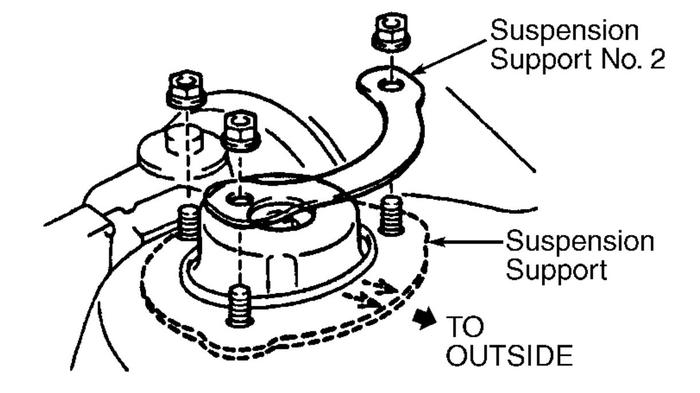

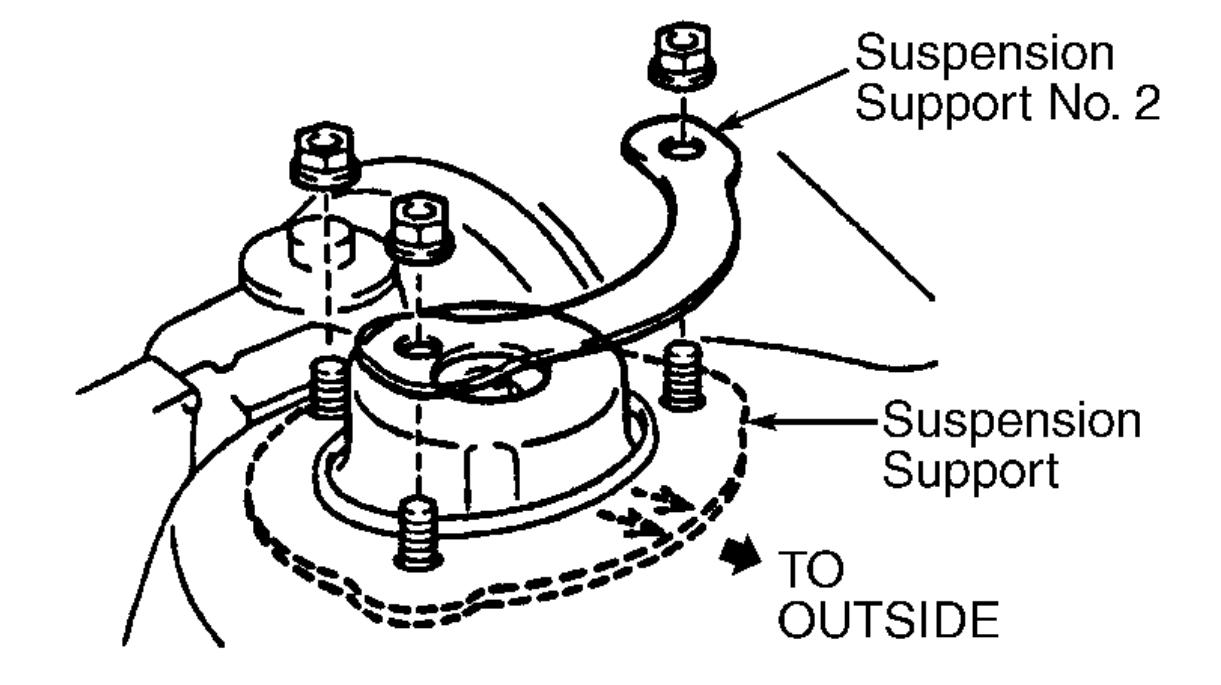

Diagram shows the arrow position.

For this model, the struts are fixed and would not affect the SAI much unless the lower arm bushes for the struts are bad. The components more likely to affect the SAI would be the upper arms and ball joints.
Feb 14, 2013 at 6:00 AM
Avatar
JIMBARRETT
  • MEMBER
  • 3 POSTS
Thank you.
Feb 14, 2013 at 1:49 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You're welcome.
Feb 14, 2013 at 5:01 PM
