diagram for the serpentine belt?

always replace tensioner when replacing belt if it has an automatic tensioner here isa guide to walk you through with diagrams below to show you how on our car.

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

The car developed a water leak and rattle. I have been told I need to replace the water pump. While looking in the Haynes manual, online and at the sticker in the engine bay, I have realised that the drive belt routing on the engine is different from all of the diagrams. The result of which causes the water pump to turn in the opposite direction. Is there any logical reason for this or was the last belt just installed incorrectly? The car ran fine, no over heating etc, before the water leak.

Which engine do you have?

If all the diagrams I checked through, the water pump turns opposite to the crankshaft direction of turning.

It's a 4lt. with a LPG conversion.
I have just reviewed the belt routing and the route will in fact turn the water pump in the right direction. I'm still a little confused however as to why the belt was not installed as per the diagram.
Thanks for your help.

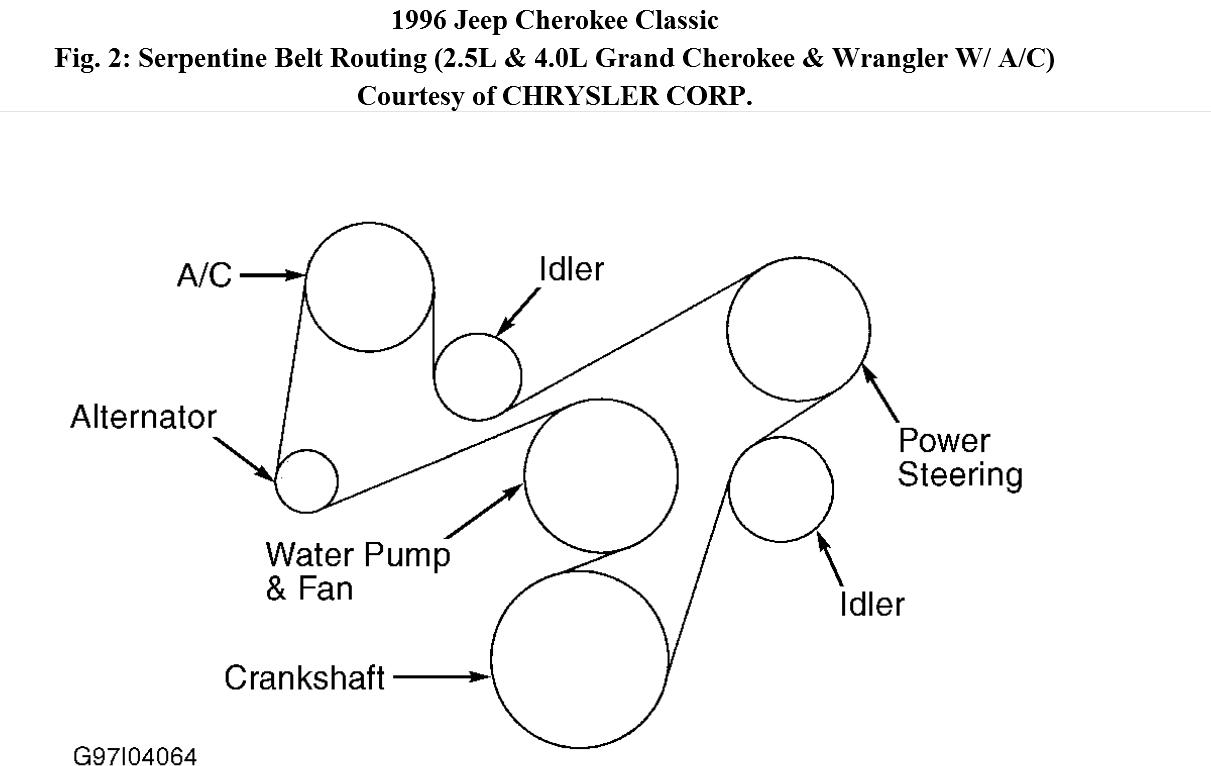

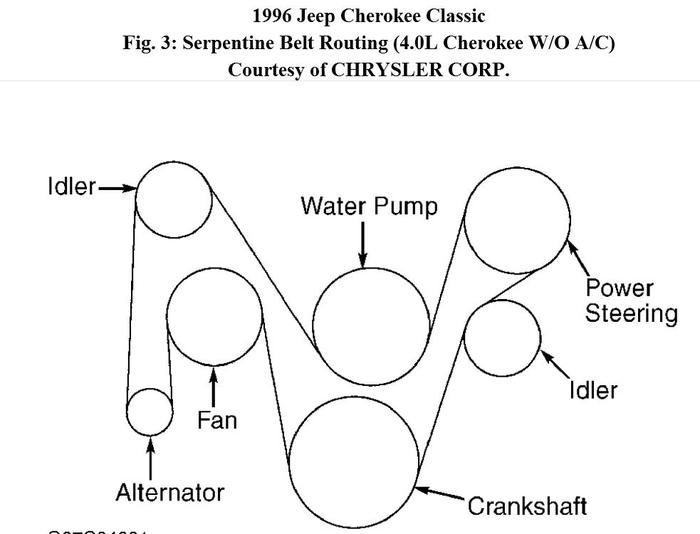

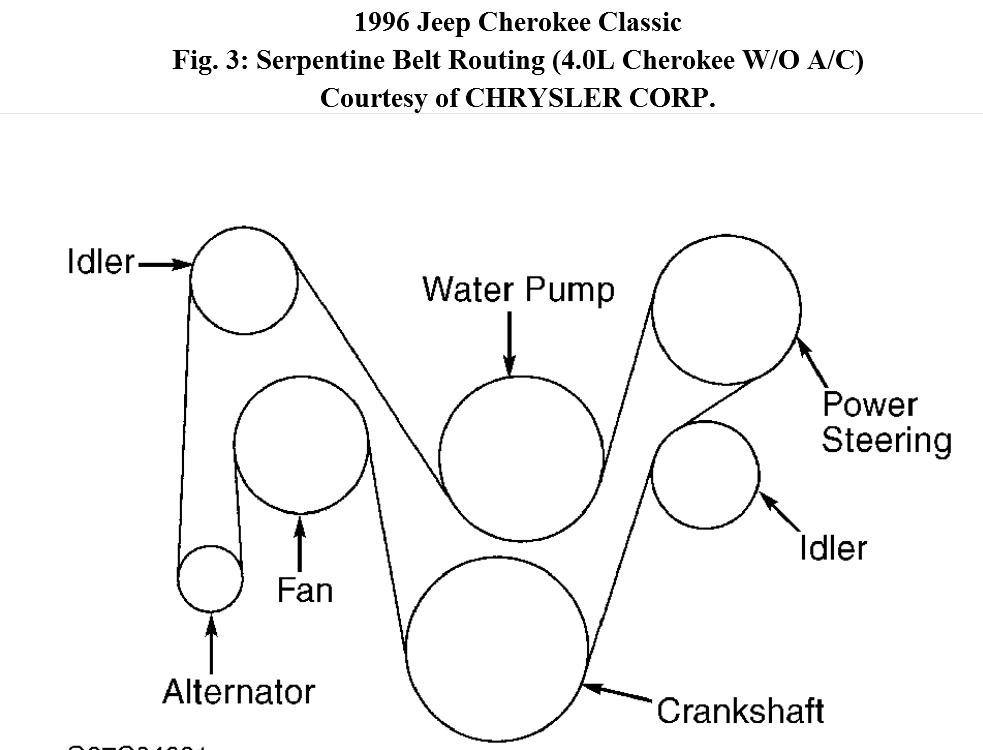

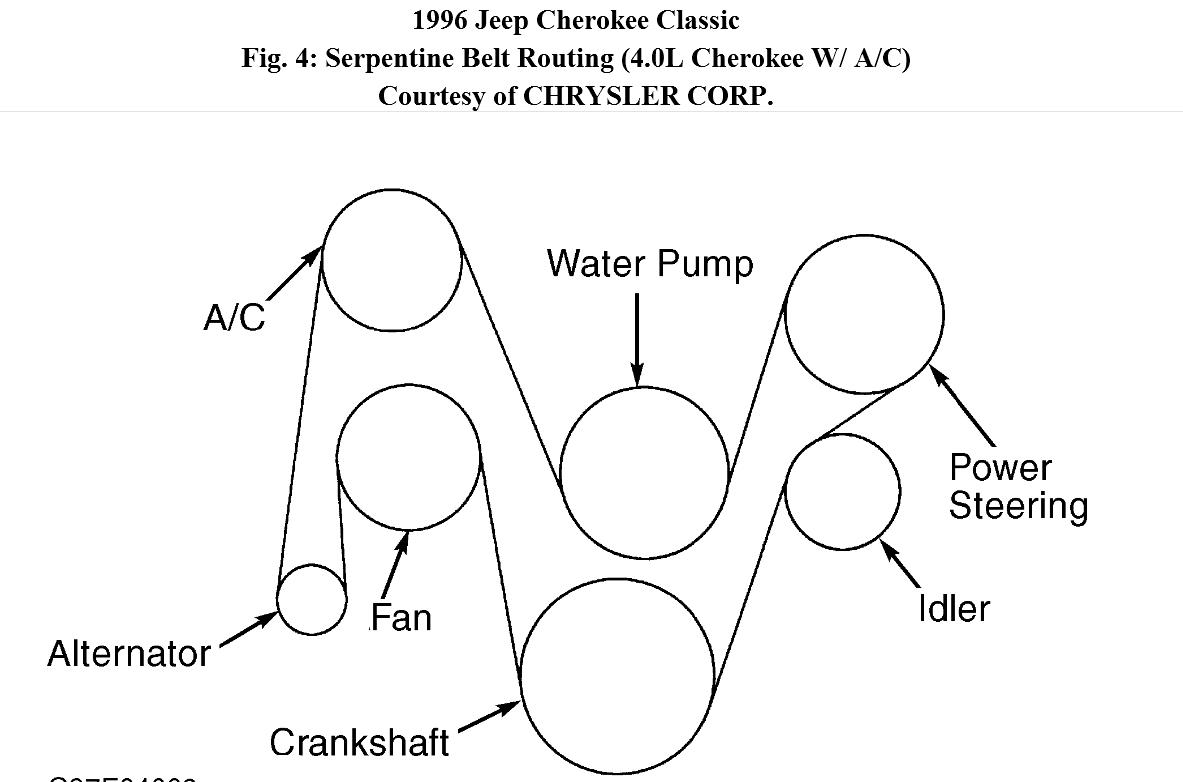

I have 3 diagrams here for the 4.0 L engine. Does any match your vehicle?

1997 jeep grand cherokee laredo straight 6 need to know how to route the serpintine belt it came off.

This is for a 4.0L grand cherokee.

How do I go about replacing the serpantine belt on my 1996 jeep cherokee 4.0l 6 cyl w/ air condionting?

You have to loosen the idler nut and then adjusting bolt that will loosen the belt allowing you to remove it and replace good luck need manual CHECK IT @ https://www.2carpros.com/kpages/auto_repair_manuals.htm
