CATS SYSTEM FAULT

2001 JAGUAR S-TYPE
Avatar
DOTTIE23
  • MEMBER
  • 2 POSTS
What does the message CATS SYSTEM FAULT MEAN? Is there something I need to do or get checked out? I also noticed that it appears that maybe the back left tire is" bumpy" please help. thanks!
Jul 30, 2014 at 2:32 PM
Advertisement
Avatar
FREEMBA
  • CERTIFIED EXPERT
  • 1,152 POSTS

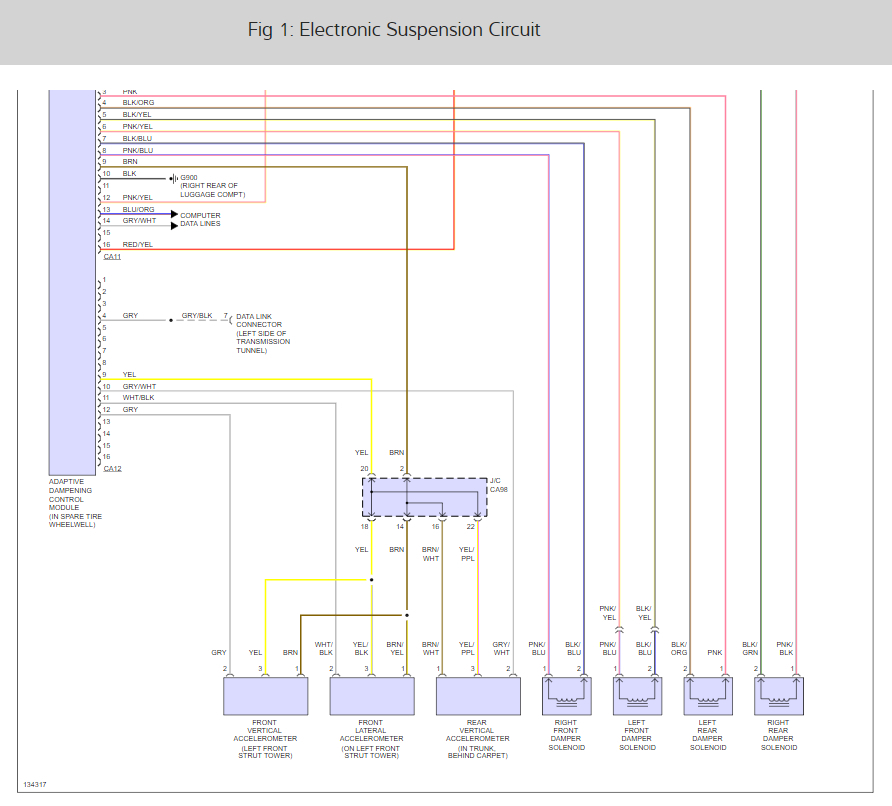

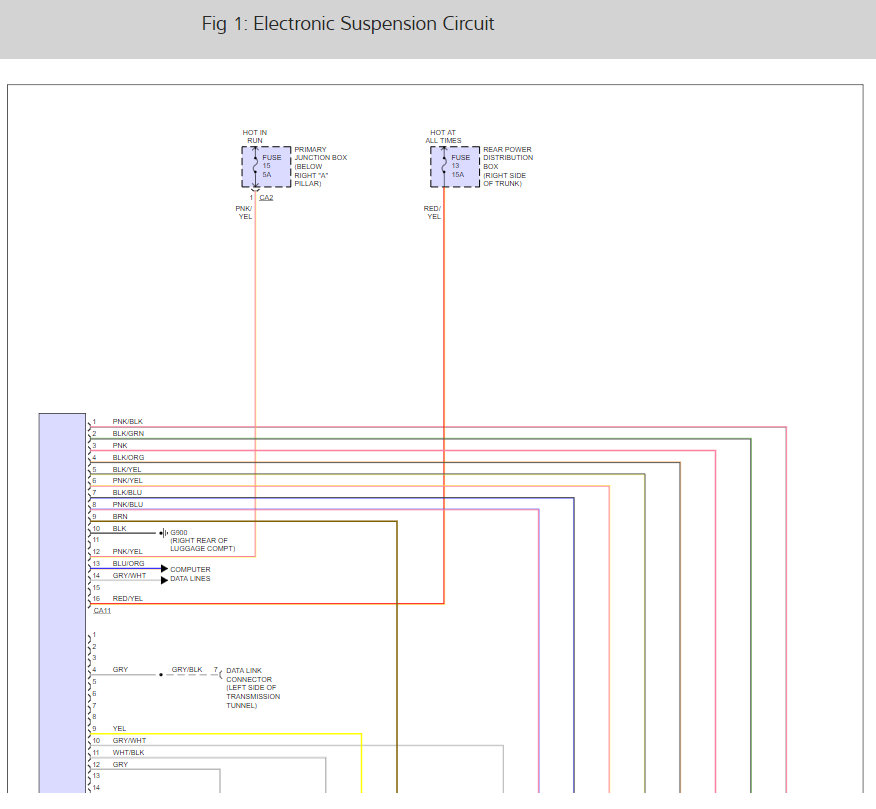

The CATS fault is adaptive suspension problem like one of the electronic struts is not working but to be sure lets check the fuse #13 and 16 in the trunk fuse panel here is a guide to help you check the wiring and the suspension wiring diagram so you can see how it works.

Check out the diagrams (Below). Please let us know what you find.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Jul 30, 2014 at 2:56 PM
Avatar
DOTTIE23
  • MEMBER
  • 2 POSTS
Thanks, I had to take the car in they replaced the adaptive control unit cost me $380.00 all fixed!
Jul 30, 2014 at 3:34 PM
Advertisement
Avatar
FREEMBA
  • CERTIFIED EXPERT
  • 1,152 POSTS
Nice work, we are here to help, please use 2CarPros anytime.

Cheers
Jul 31, 2014 at 5:42 AM
