Timing belt

2001 HONDA PASSPORT

110,000 MILES • 6 CYL • 2WD • AUTOMATIC

MEEESA

MEMBER
1 POST
FOLLOW

I need timing mark diagrams for 2001 honda passport. I have it exposed and the crank is on TDC but the cams dont line up with anything.. Halp. I need pictures

Jan 11, 2011 at 4:40 PM

KHLOW2008

CERTIFIED EXPERT
41,814 POSTS

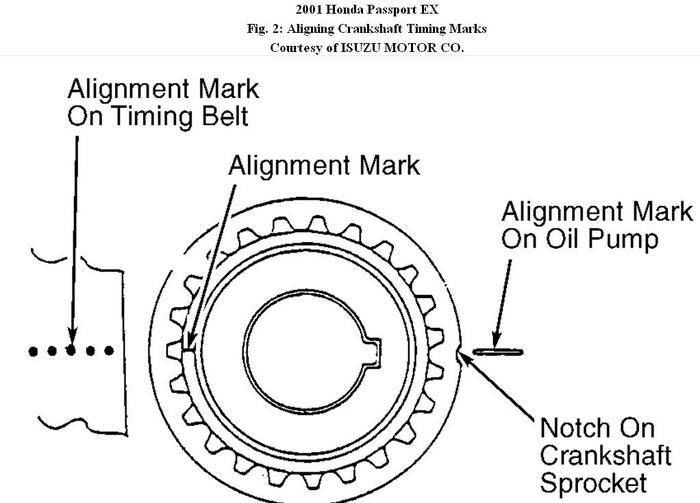

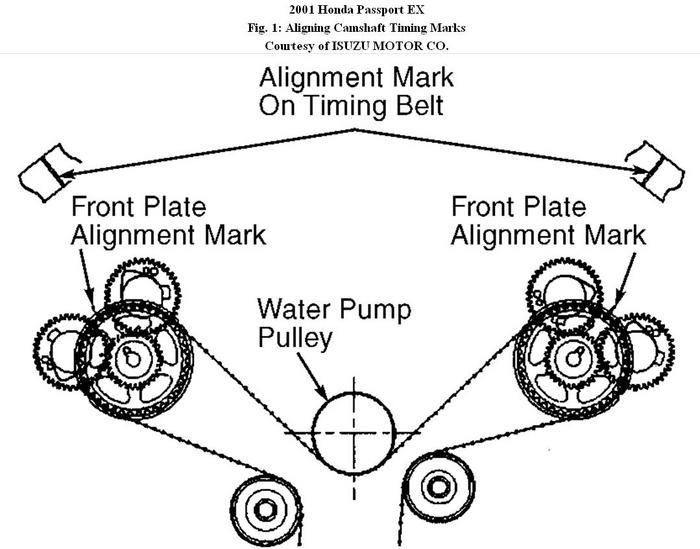

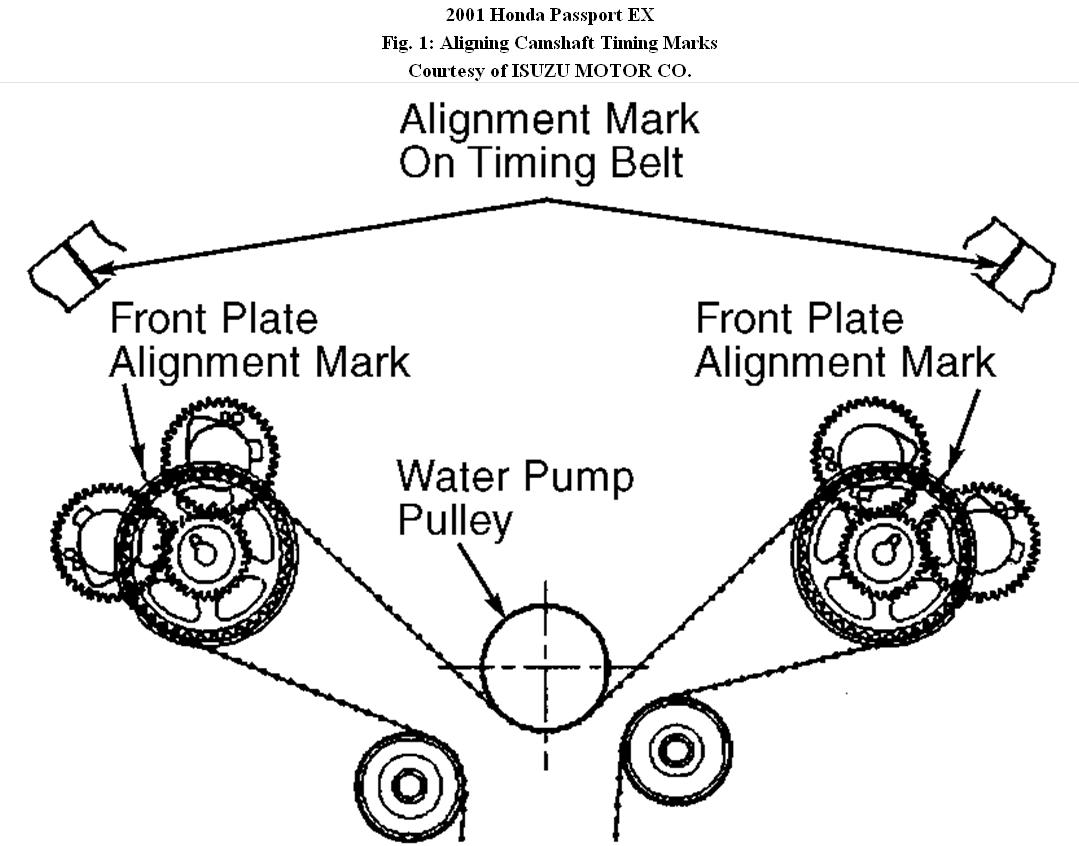

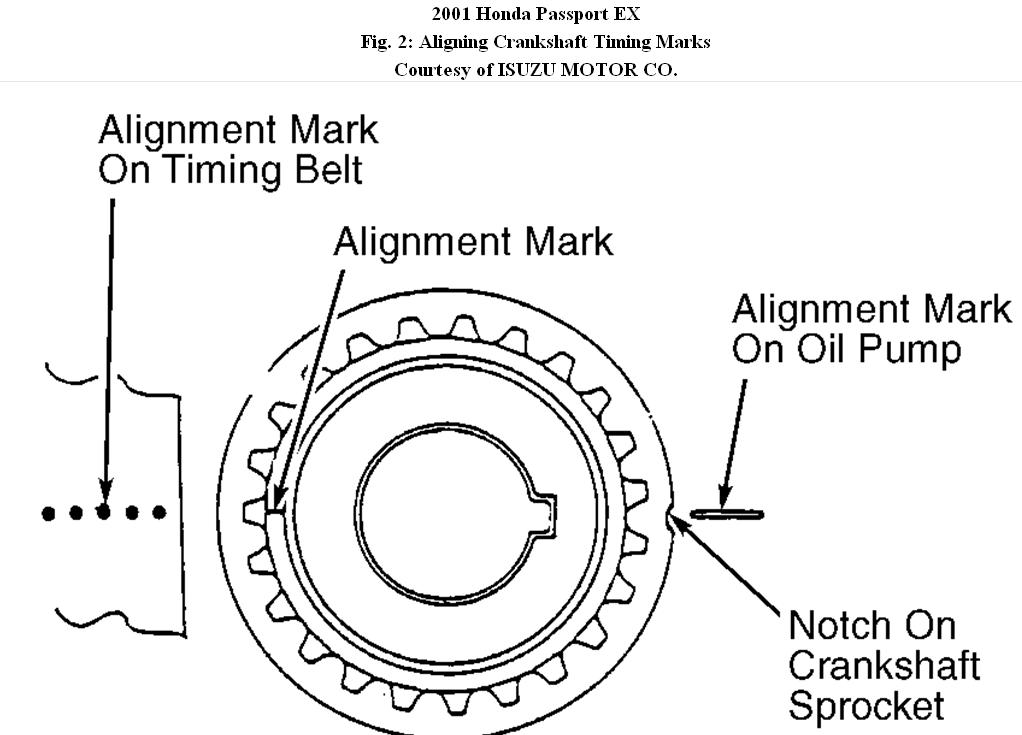

Here are thee diagrams.

Turn the crankshaft away from TDC by at least 20 degrees if you need to turn the camshaft substantially. This is to prevent the valves from hitting the pistons when the camshafts are turned.

Images (Click to enlarge)

Jan 11, 2011 at 4:48 PM
