coolant temp sensor location

2001 HONDA ODYSSEY
145,000 MILES
Avatar
SOLSURF
  • MEMBER
  • 1 POST
I have a code P0118. From what I found on line it leads to a faulty Engine Coolant Temp Sensor. I cannot figure out where it is located. There's a few sensors I suspect, but I was hoping you'd be able to provide a picture. Or if you have anything else I should be checking too. Also, I'm not too sure if my fan is turning on. It works when the AC is on, but I let it idle for 15-20min w/o the AC and it doesn't turn on. Any ideas? Thanks.
Nov 19, 2012 at 5:50 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hello,

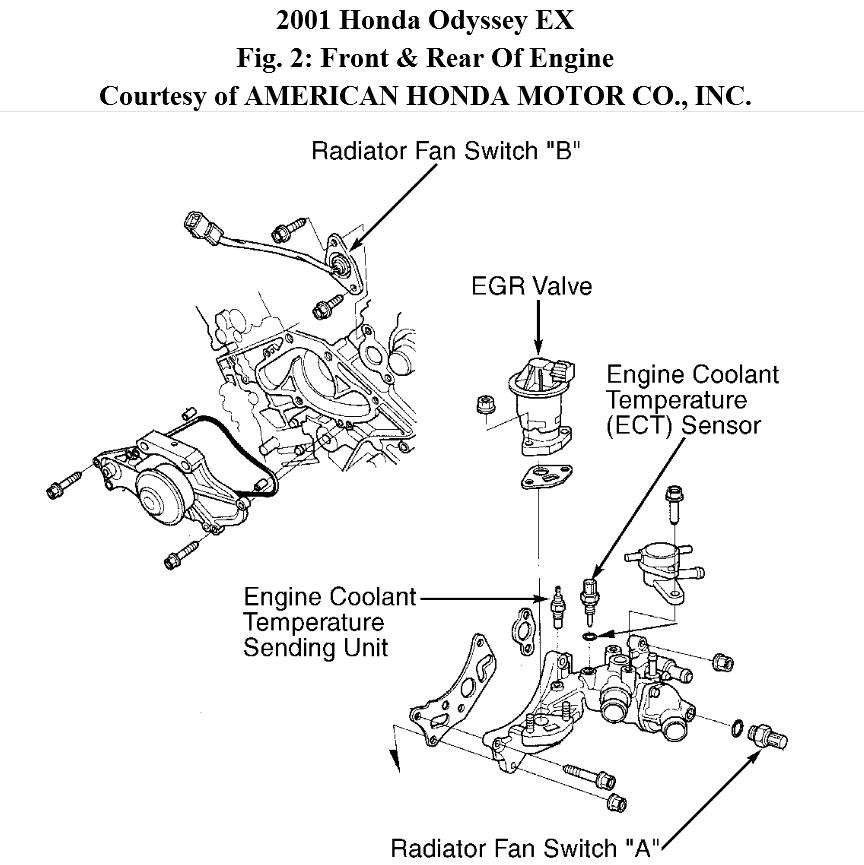

The engine coolant temperature sensor is located by the thermostat housing here is a guide to help you see what you are in for when changing the sensor out with the location in the diagrams below.

https://www.2carpros.com/articles/coolant-temperature-sensor-cts-replacement

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
Nov 21, 2012 at 6:54 PM
