how to replase door lock ,change lock for key,how take him of?,from Honda Accord-2001.

2001 HONDA ACCORD

120,000 MILES

KNYAZ68

MEMBER
2 POSTS
FOLLOW

I change door on my car,and now i try to take of lock from door,because i need to do new key for this door or just change lock,just replace.I take of panel,window and now stock with lock,maybe somebody have picture or just can explain how to remove them.Thank you.

Mar 15, 2012 at 5:37 AM

KHLOW2008

CERTIFIED EXPERT
41,814 POSTS

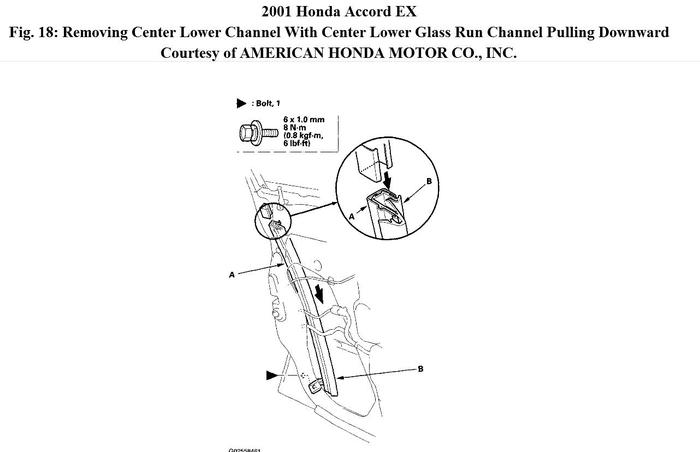

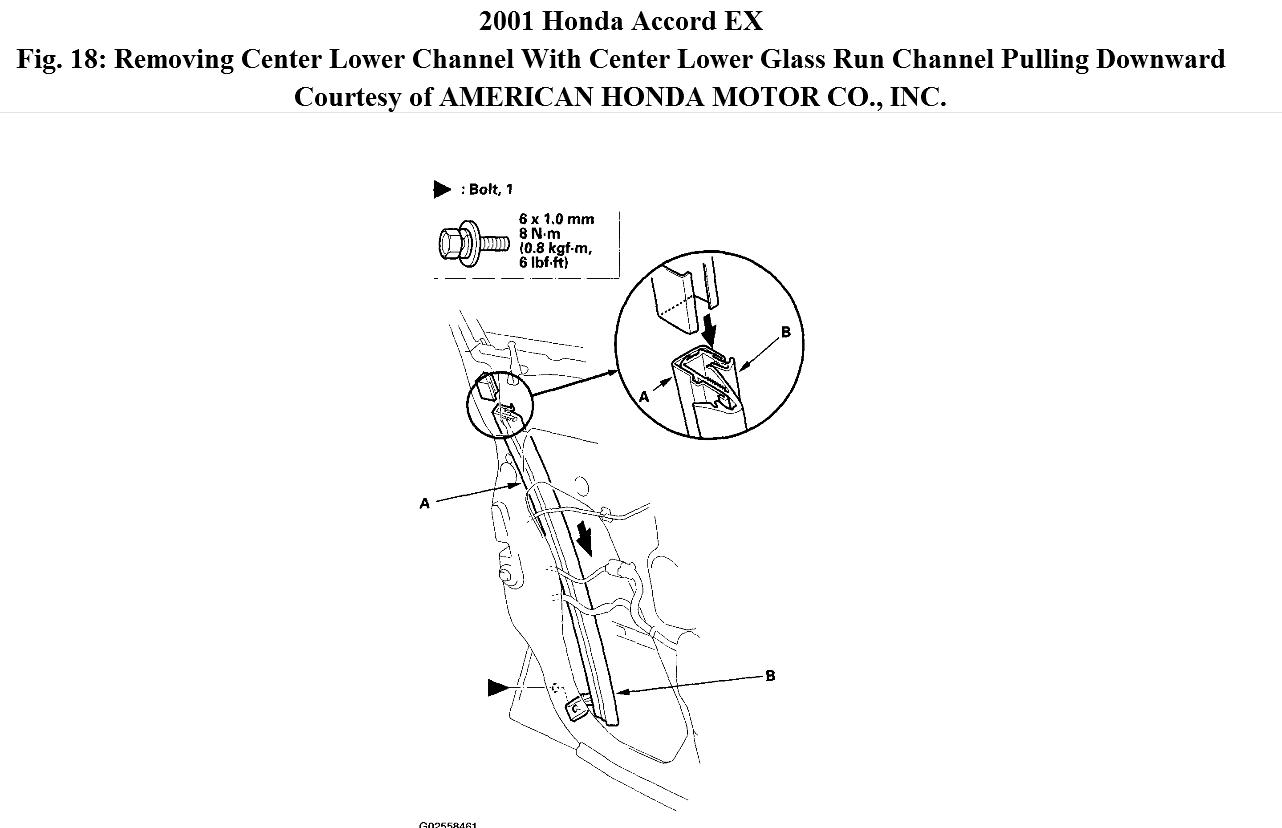

Remove the bolt, then remove the center lower channel (A) with center lower glass run channel (B) by pulling it downward.

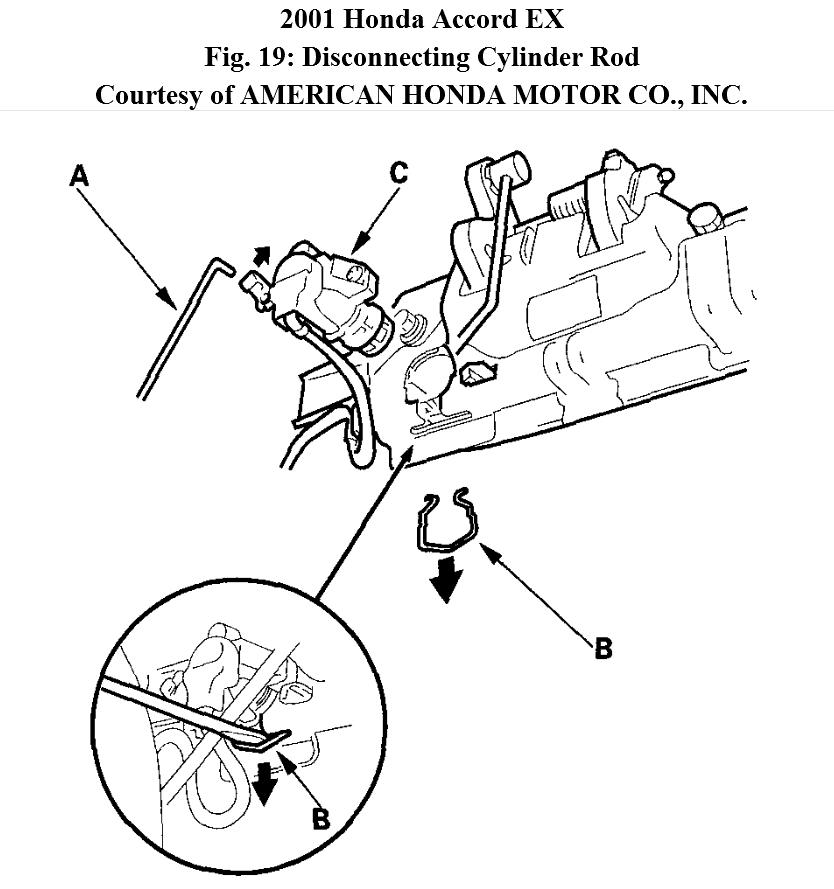

Disconnect the cylinder rod (A). Release the retainer clip (B), then remove the lock cylinder (C).

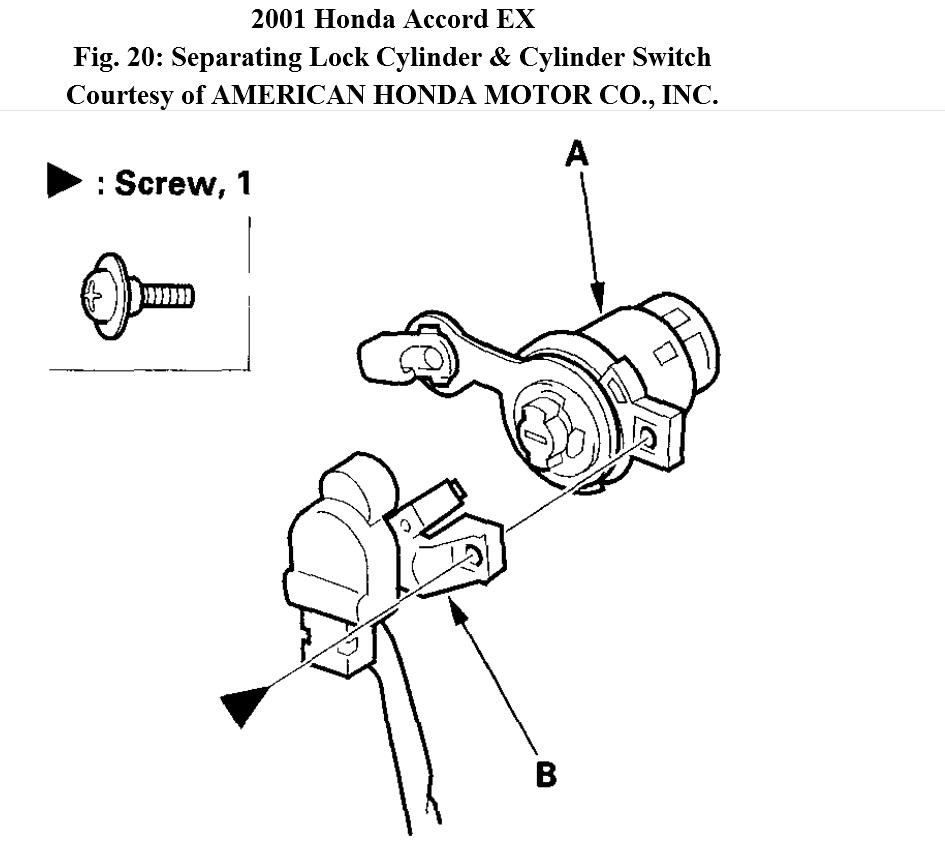

Remove the screw, then separate the lock cylinder (A) and cylinder switch (B).

Images (Click to enlarge)

Mar 15, 2012 at 2:27 PM

KNYAZ68

MEMBER
2 POSTS

Thanks a lot for help,now i got it,how this work,thank you KHLow2008........

Mar 17, 2012 at 8:12 AM

KHLOW2008

CERTIFIED EXPERT
41,814 POSTS

You're welcome.

Have a great day.
