how to put the plenum back

2001 FORD WINDSTAR
150,000 MILES
Avatar
VICTOR65
  • MEMBER
  • 20 POSTS

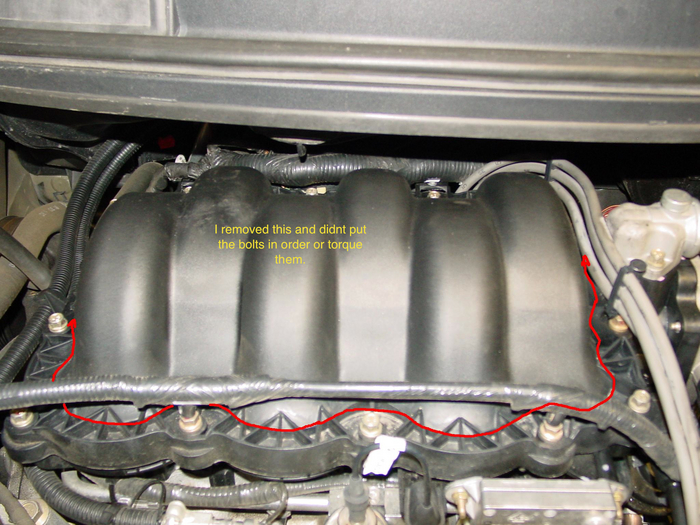

i was changing the spark plugs and i removed the plenum i think a black plastic top cover, i forgot how the bolts went so i just put them on, but now the my van idles rough i was wondering if the bolts needed to be torque and had to go in order, thanks
Image (Click to enlarge)
Attached Media
Jan 24, 2012 at 7:47 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
did you fit a new gasket, check for vacuum leaks, torquing the bolts in sequence is not super critical, just do then evenly.
Jan 24, 2012 at 8:35 AM
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
You pulled the intake manifold just to change the spark plugs? Did you replace the gasket? 89 foot-pounds. Start on the inside and move to the outside.
Jan 24, 2012 at 8:38 AM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
There is a vacuum line that attaches right at the rear of the plenum that you may have missed.
Jan 24, 2012 at 11:00 AM
