2001 Ford Focus PO766

2001 FORD FOCUS
156 MILES • 4 CYL • FWD • AUTOMATIC
Avatar
ACEOFDIAMONDS
  • MEMBER
  • 1 POST
Care is not shifting properly. I pulled the code and it showed PO766 Shift Solenoid D Ckt Performance or stuck off. I called Ford Parts and they said they only show A,B and C and an On/off solenoid and an EPC. Which one is the D? I'm thinking the on/off but I'm not sure
Mar 6, 2014 at 9:48 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
have a pro test this as it can be a bad pcm causing this . also test resistance at pin 9 on trans if it reads 1.0-4.2 Ohms then the solenoid is ok and it's proably a hydraulic or mechanical failure in trans or bad pcm
Mar 7, 2014 at 6:06 AM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

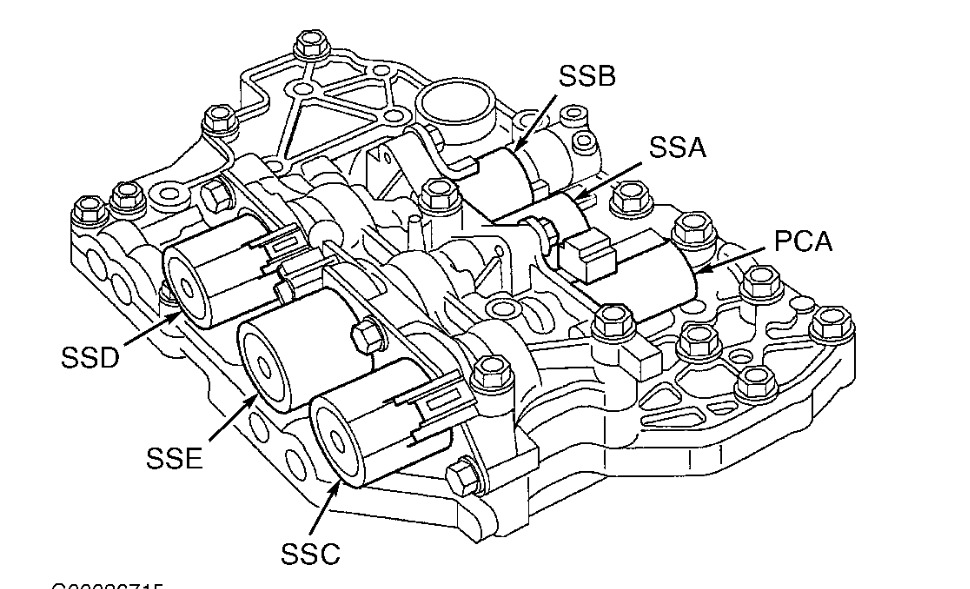

forgot pic
Image (Click to enlarge)
Attached Media
Mar 7, 2014 at 6:06 AM
