Vehicle does not charge the battery

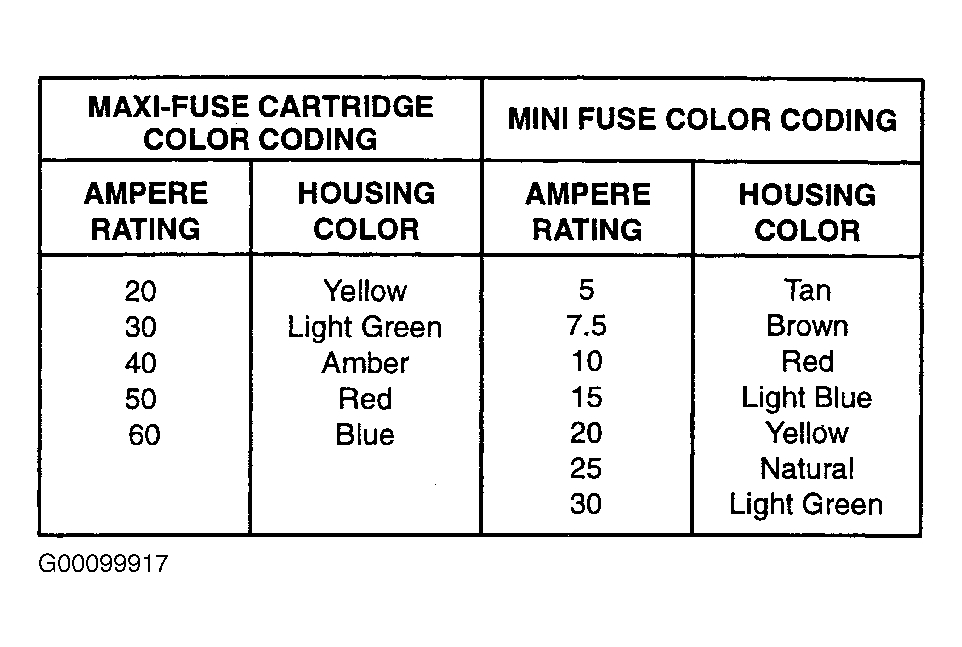

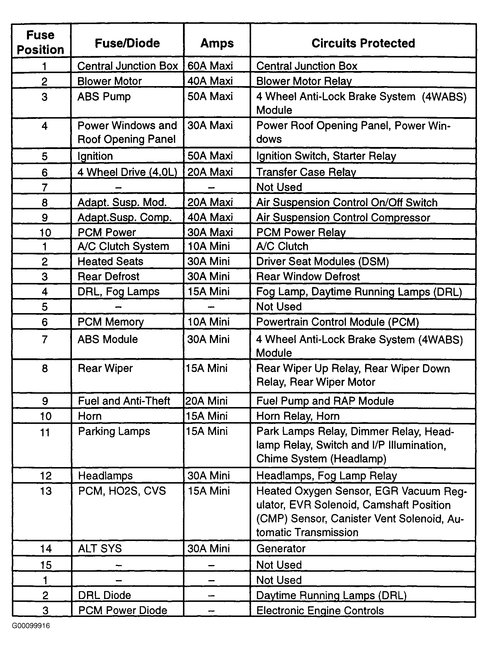

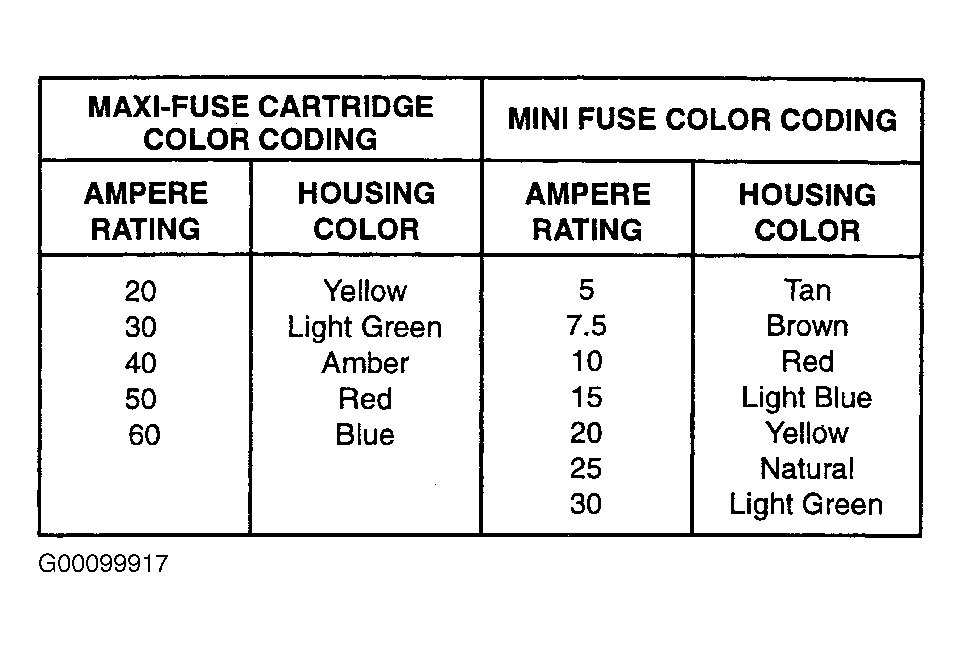

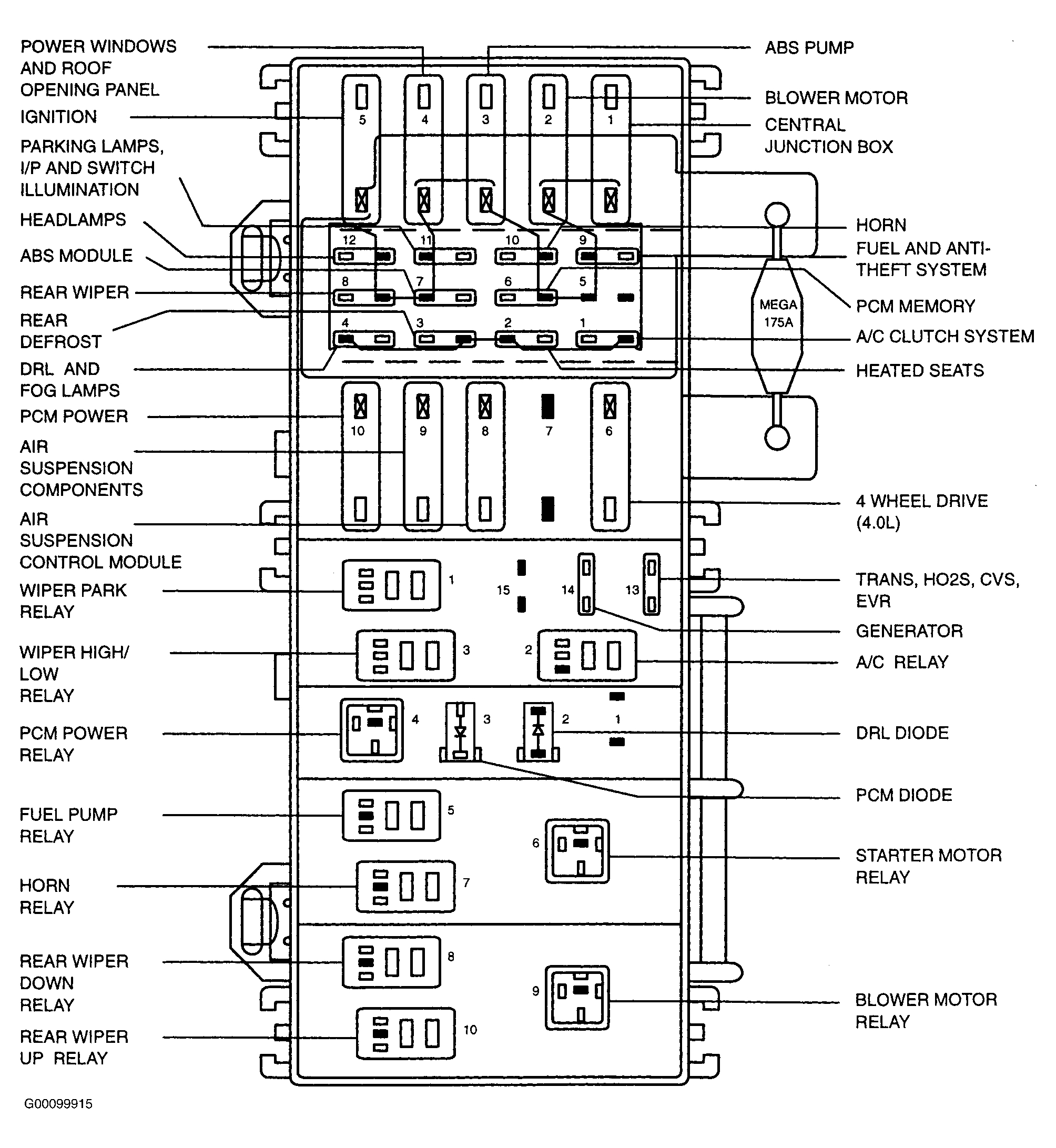

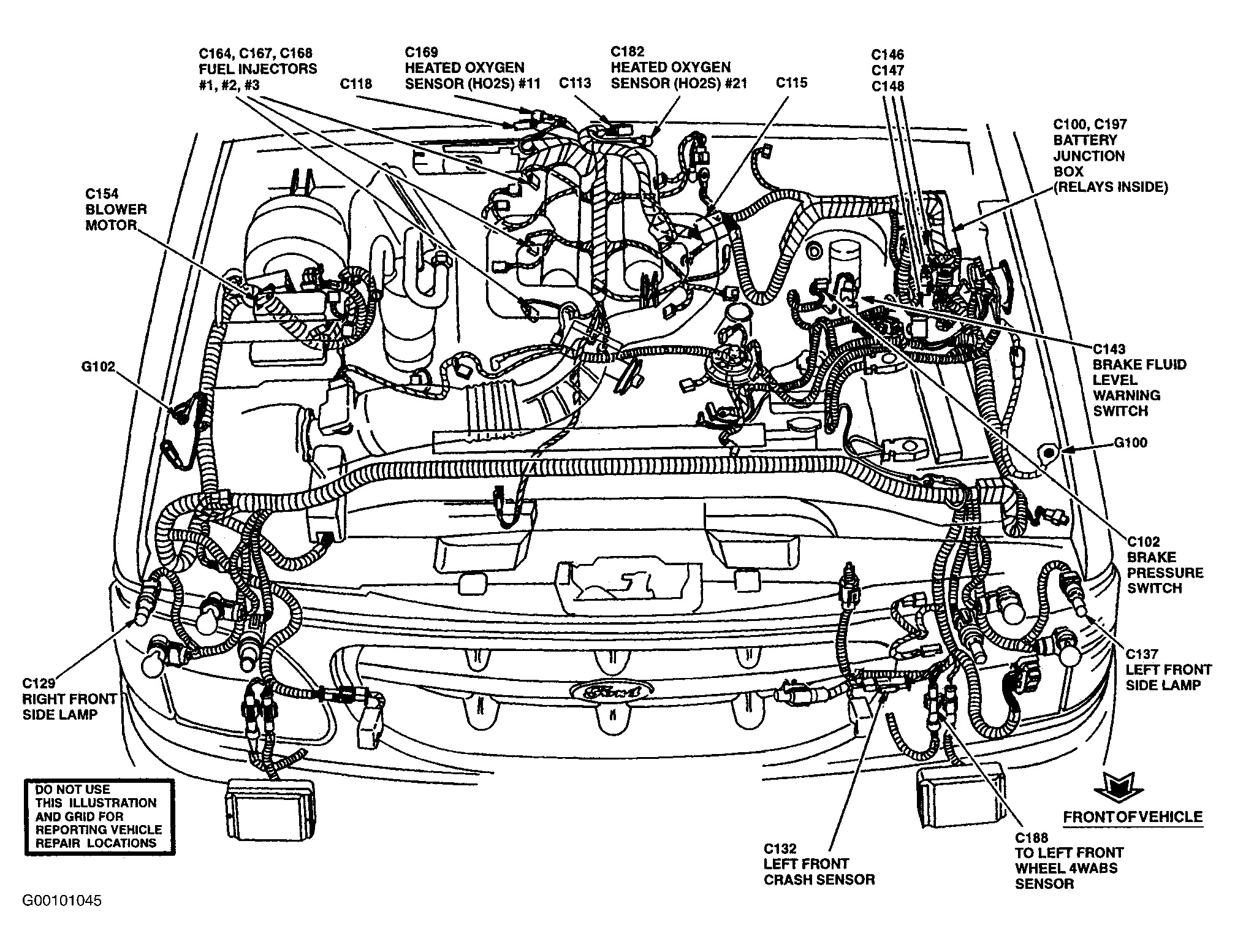

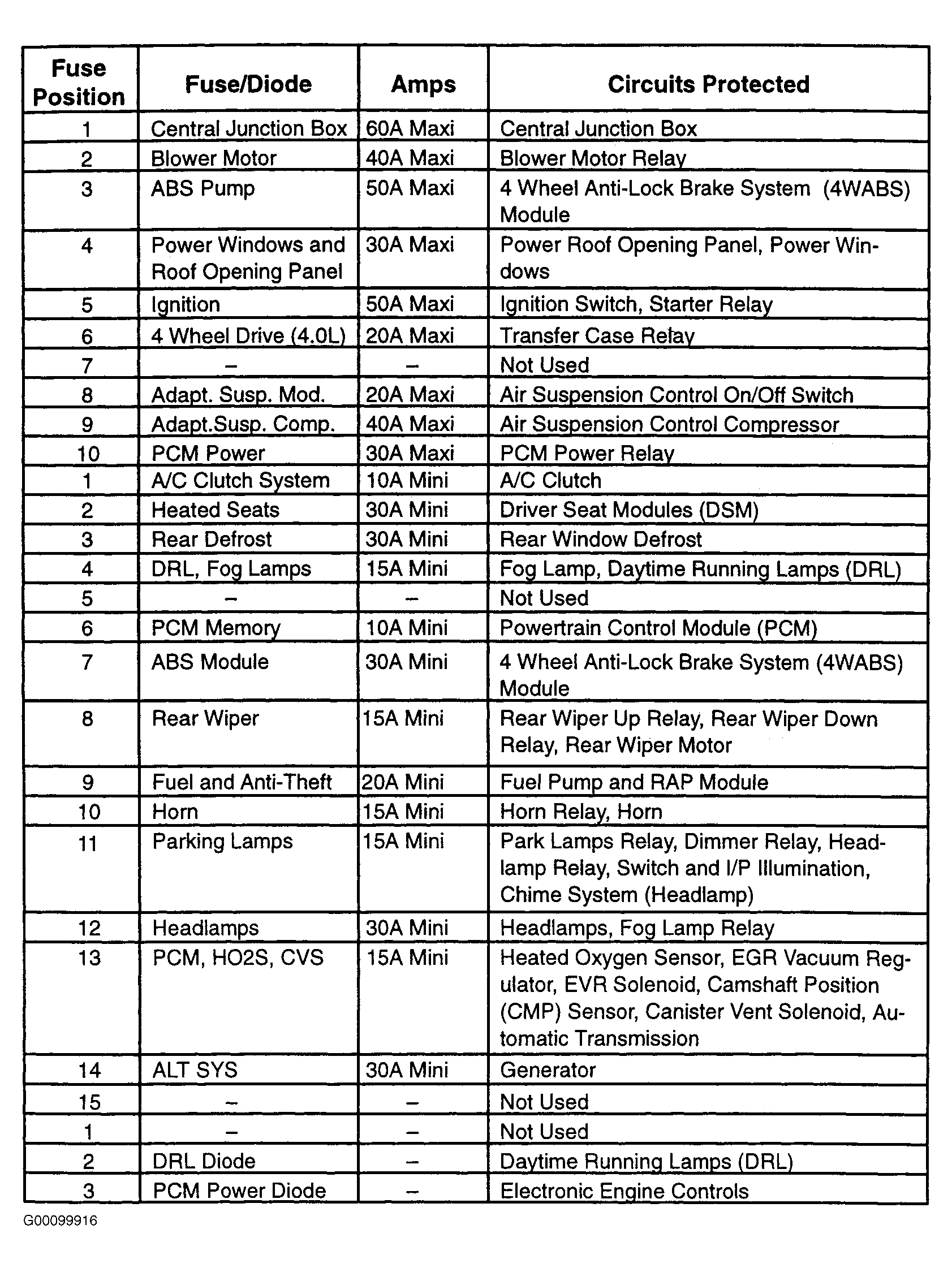

The images that I am attaching are the under-hood battery junction box. Check fuse #14 (generator). If it is blown, replace it and see what happens.

Also, I would be interested to know how old your battery is. If it is five or more years old, then it may just be time for a new battery. You can have it tested for free at the local parts shop.

You might also check the battery cables and make sure that they are so tight that you simply cannot move them by hand. If there is any whitish/greenish gunk on them, take them off of the battery, clean them up, and reinstall them on the battery. Make them super tight, as described above.
